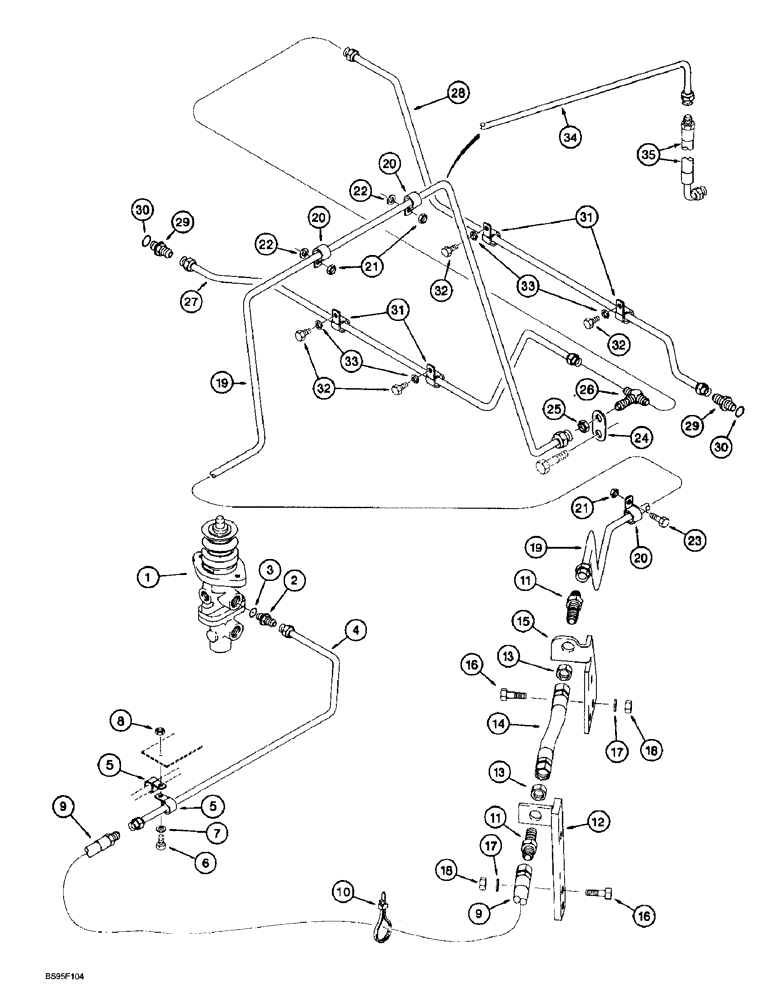

Запчасти Case 721B (7-16) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO FRONT AXLE, PRIOR TO P.I.N. JEE0051723 (07) - BRAKES

1

L129699

VALVE

ASSEMBLY - brake, parts list figure 7-24

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

107307A1

TUBE,9.53 mm OD, 569, 109 mm Length

- front brakes, valve to hose

1шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed 3/8", Insul, 3/8" Bolt

2шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

9

107465A1

HOSE ASSY.

HOSE - 711 mm (28 inch) long, front brakes, Serial Range: tube-hose

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

2шт.

12

112325A1

SUPPORT

BRACKET - brake hose mounting, rear

1шт.

13

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

14

107346A1

HOSE ASSY.

HOSE - 405 mm (16 inch) long, Serial Range: hose-tube

1шт.

15

L129465

SUPPORT

BRACKET - brake hose and tube mounting, front

1шт.

16

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

18

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

19

107344A1

TUBE

- front brakes to tee at front axle, if used

1шт.

20

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed 3/8", Insul, 3/8" Bolt

3шт.

21

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

22

187563A1

SPACER

- 13 x 25 x 28 mm

2шт.

23

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

24

107334A1

BRACKET

- tube mounting, use bolt from front, Serial Range: axle-mount

1шт.

25

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

26

218-804

TEE,9/16"-18, 37 Degree, Blkhd

- 9/16-18 inch bulkhead flare branch x flare x flare

1шт.

27

107338A1

TUBE

- front axle, left-hand

1шт.

28

107342A1

TUBE

- front axle, right-hand

1шт.

29

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 30

2шт.

31

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

- P-type, 7/16 inch, front brake, replaces S64985

4шт.

32

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

- hex, 3/8 NC x 1/2 inch, grade 8

4шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

128089A1

HYD TUBE

TUBE - front brakes to hose at front axle, if used

1шт.

35

128094A1

HOSE ASSY.

HOSE - 575 mm (22-5/8 inch) long, from tube to tee at front axle, if used

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
