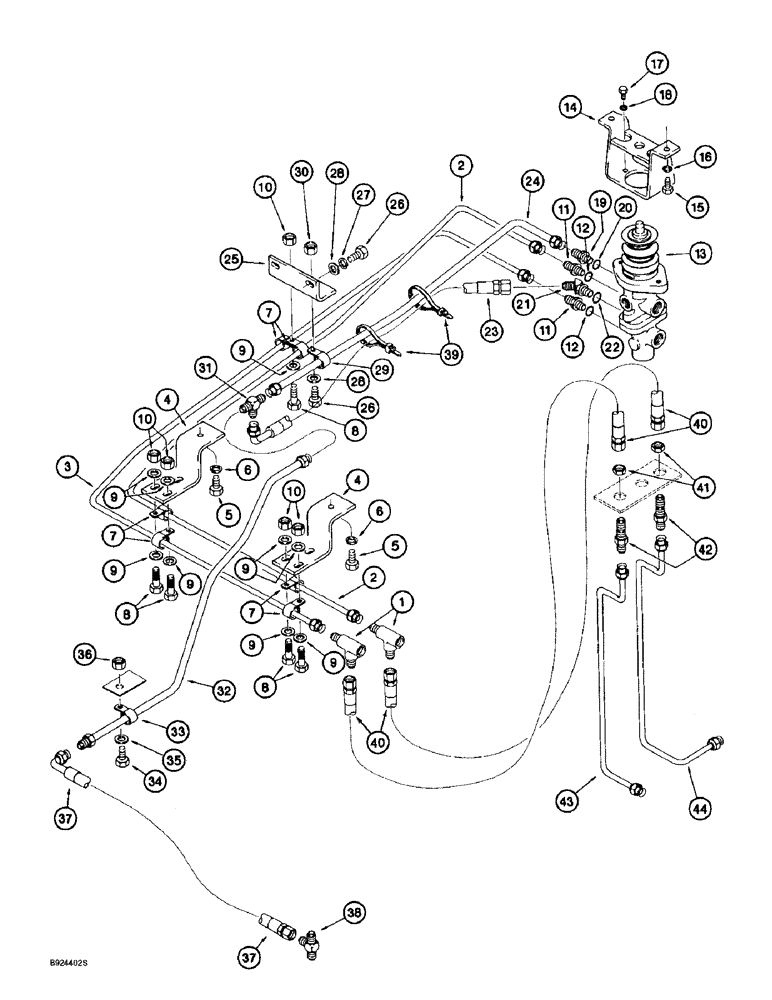

Запчасти Case 721B (7-14) - MAIN BRAKE HYDRAULIC CIRCUIT, TUBES AT ACCUMULATOR TO MAIN BRAKE VALVE PRIOR PIN JEE0051723 (07) - BRAKES

1

104995A1

TEE

- special, see figure 4-28 for transmission declutch switches

2шт.

2

185129A1

TUBE,9.5 mm OD, 907, 604 mm Length

- tee to main brake valve upper port, replaces 107309A1

1шт.

3

185131A1

TUBE,9.5 mm OD, 993, 650 mm Length

- tee to main brake valve lower port, replaces 107311A1

1шт.

4

L129538

SUPPORT

BRACKET - mounting, tube

2шт.

5

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed 3/8", Insul, 3/8" Bolt

6шт.

8

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

5шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

9шт.

10

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

5шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

13

L129699

VALVE

ASSEMBLY - brake, parts list figure 7-24

1шт.

14

1990621C2

GUIDE

BRACKET - brake rod guide

1шт.

15

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

21

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj. O-ring boss, Incl. Ref 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

R57486

HOSE

- 700 mm (27-9/16 inch) long, brake valve lower tank port to, Serial Range: tube-reservoir

1шт.

24

107313A1

TUBE,12.7 mm OD, 597, 83 mm Length

- main brake valve to tee

1шт.

25

L128742

SUPPORT

BRACKET - mounting, tube

1шт.

26

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

27

492-11038

LOCK WASHER,3/8"

2шт.

28

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

3шт.

29

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces 49838 1/2", Insul, 3/8" Bolt

1шт.

30

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

31

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare branch x flare x flare

1шт.

32

107315A1

TUBE,12.7 mm OD, 629, 66 mm Length

- brake return, tee to hose

1шт.

33

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces 49838 1/2", Insul, 3/8" Bolt

1шт.

34

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

35

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

36

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

37

107304A1

HOSE ASSY.

HOSE - 380 mm (15 inch), Serial Range: long,-reservoir

1шт.

38

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

- 3/4-16 flare branch x flare x 3/8-18 inch PT

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

40

107372A1

HOSE ASSY.

HOSE - 280 mm (11 inch) long, to brake valve

2шт.

41

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

42

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

2шт.

43

185125A1

TUBE,9.5 mm OD, 508, 73 mm Length

- accumulator to brake valve upper port, replaces 107445A1

1шт.

44

185127A1

TUBE,9.5 mm OD, 505 mm Length

- accumulator to brake valve lower port, replaces 107443A1

1шт.
