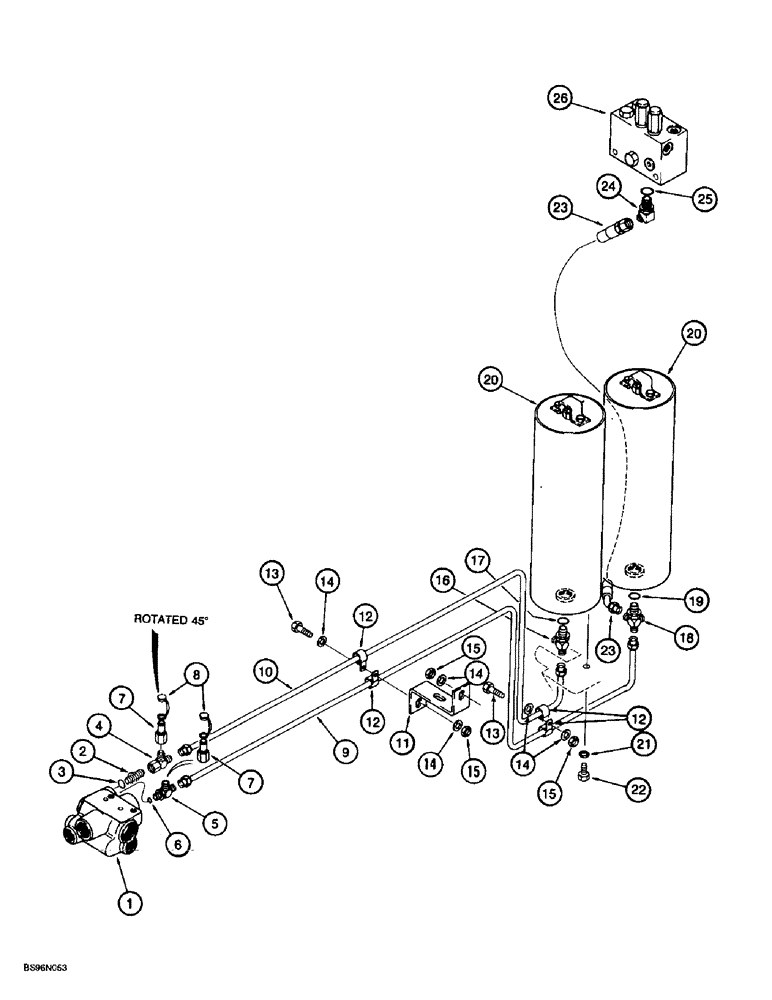

Запчасти Case 721B (7-11A) - 232531A1 MAIN BRAKE HYDRAULIC CIRCUIT, ACCUMULATOR VALVE TO PRESSURE, REDUCING VALVE PRESSURE PORT (07) - BRAKES

1

232531A1

VALVE

ASSEMBLY - accumulator, parts list figures 7-21A, see parts list figure 7-8 or 7-9A for mounting hardware

1шт.

232531A1R

REMAN-HYD VALVE

721B (3/93 - 12/98)

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

192834A1

COUPLING

- quick disconnect

2шт.

8

H434163

DUST CAP

CAP - dust

2шт.

9

192184A1

TUBE

- accumulator charge, valve lower port to front accumulator

1шт.

10

192185A1

TUBE

- accumulator charge, valve upper port to rear accumulator

1шт.

11

107349A1

BRACKET

- tube mounting

1шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

4шт.

13

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

5шт.

15

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

16

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

193975A1

TEE

FITTING - special, accumulator, Includes: Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

128191A1

ACCUMULATOR,1.9L

ASSEMBLY - hydraulic, parts list figure 7-24

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

22

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

23

110927A1

HOSE ASSY.

HOSE - 350 mm (13-3/4 inch) long, pressure, reducing, Serial Range: valve-accumulator

1шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 25

1шт.

26

108525A3

VALVE

ASSEMBLY - pressure reducing, parts list figure 8-92

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
