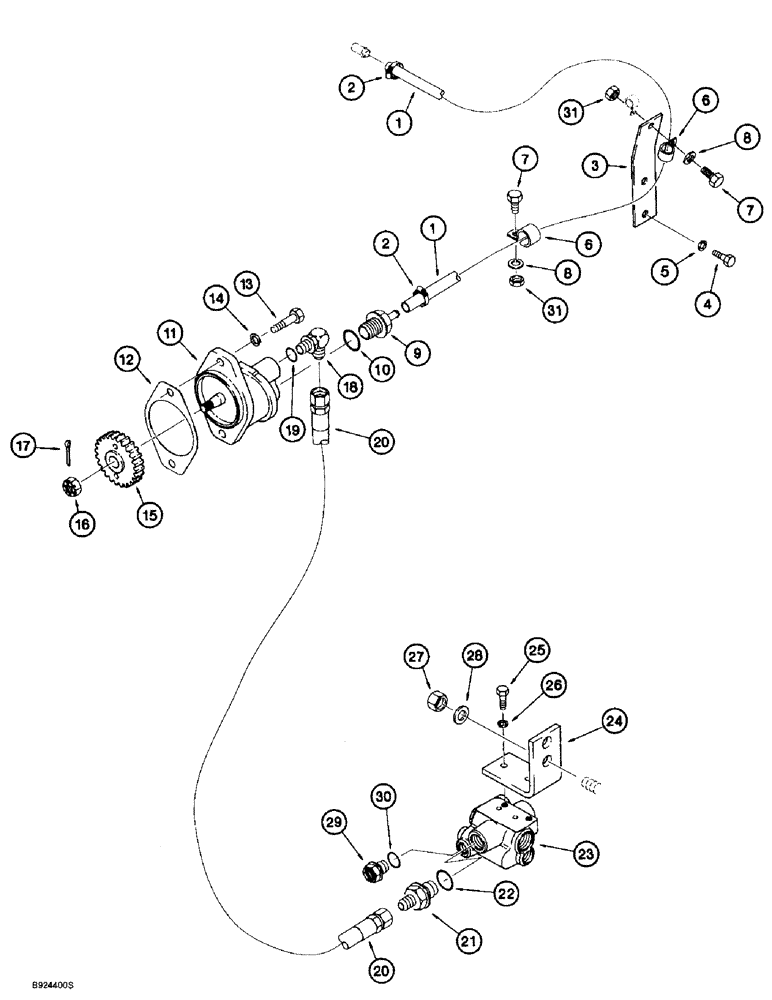

Запчасти Case 721B (7-08) - MAIN BRAKE HYDRAULIC CIRCUIT, RESERVOIR TO PUMP TO ACUMULATOR VALVE (07) - BRAKES

1

107325A1

HOSE,19mm ID x 1400mm L, SAE 100R3

- brake motor supply at reservoir 19.00 mm ID x 1400.00 mm, SAE 100R3

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

3

107350A1

BRACKET

- mounting

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

6

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

2шт.

7

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

9

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4 stem end x 1-/16-12 inch O-ring boss, Includes: Ref. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end

1шт.

11

S515954

PUMP, HYDRAULIC

PUMP ASSEMBLY - brake, parts list figure 7-22, Serial Range: -JEE0054469

1шт.

This pump is replaced by 244573A1 pump as serial number JEE0054469 and after. There are 49 units that deviate from this pump. If the serial number falls between JEE0055086 to JEE0055150 check technical support book for information.

1шт.

387411A2R

REMAN-HYD PUMP

721B Serial Range: -JEE0054469 (3/93-12/98), Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

284516A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - brake, production only, for service order, 244573A1, parts list figure 7-22, Start Serial: JEE0054469

1шт.

11

244573A1

PUMP, HYDRAULIC

ASSEMBLY brake, parts list figure 7-22, Start Serial: JEE0054469

1шт.

11

87453065R

REMAN-HYD PUMP

721B CASE WHEEL LOADER (NORTH AMERICA), ASSEMBLY brake, Start Serial: JEE0054469 (3/93-12/98), Reman for New PN 244573A1

1шт.

11

87453065C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

J919601

GASKET

- access cover plate, replaces A77441

1шт.

13

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

15

J924186

GEAR

- brake pump, replaces J905606

1шт.

16

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

17

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

18

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj. O-ring boss, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

107323A1

HOSE ASSY.

HOSE - 410 mm (16-1/18 inch) long, pump to accumulator valve

1шт.

21

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY - accumulator, parts list figure 7-20 or 7-21A

1шт.

24

L129987

BRACKET

- mounting

1шт.

25

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

28

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

29

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

- straight, 3/4-16 O-ring boss x 9/16-18 inch female O-ring boss, see figure 4-30 for low pressure brake switch, Includes: Ref. 30

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

257247A1

FLANGE

KIT seal, includes Ref. 11, P/N 244573A1

1шт.
