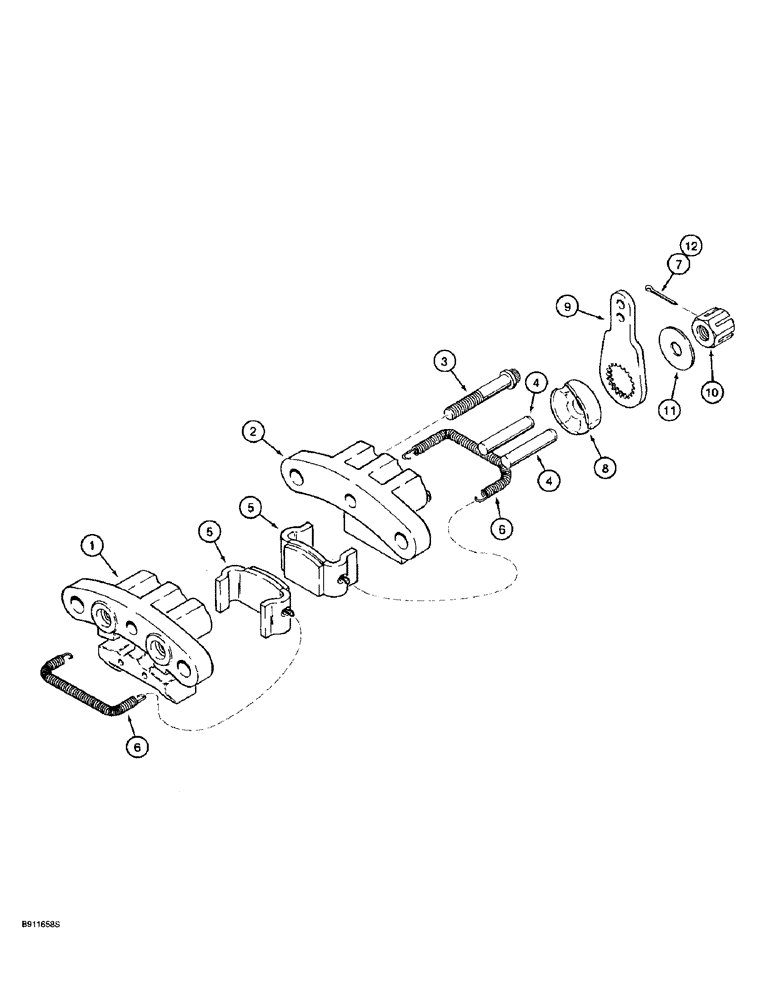

Запчасти Case 721B (7-02) - PARKING BRAKE ASSEMBLY (07) - BRAKES

L129717

BRAKE, PARKING

BRAKE ASSEMBLY - parking, see figure 7-4 for mounting, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - parking brake, transmission side

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - parking brake, cam and lever side

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - 12 point, special

3шт.

4

2-3195T1

PIN

- special, replaces 101981A1 pin

2шт.

90-7287T91

KIT

- pad, service, service, replaces 101987A1, Includes: Ref. 5 - 7

1шт.

S113625

BRAKE, PARKING

LINING ASSEMBLY - parking brake, replaces 101975A1

2шт.

5

NSS

NOT SOLD SEPARAT

PAD - brake lining, includes holder

1шт.

6

S107628

SPRING

- brake pad, replaces 101976A1

1шт.

7

90-7296T1

PIN, SPLIT (COTTER)

PIN - cotter, special, replaces 101985A1

1шт.

101988A1

KIT

- cam and lever, Includes: Ref. 8 - 12

1шт.

8

90-7292T1

CAM

- parking brake, replaces 101982A1

1шт.

9

101983A1

LEVER

- brake actuator

1шт.

90-7295T91

SET

KIT - lever hardware, replaces 101992A1, Includes: Ref. 10 - 12, Spersession Kit 84413368 Does not include101983A1

1шт.

101986A1

SLOTTED NUT

NUT AND WASHER ASSEMBLY - special

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - castle

1шт.

11

101984A1

WASHER

- flat

1шт.

12

90-7296T1

PIN, SPLIT (COTTER)

PIN - cotter, special, replaces 101985A1

1шт.
