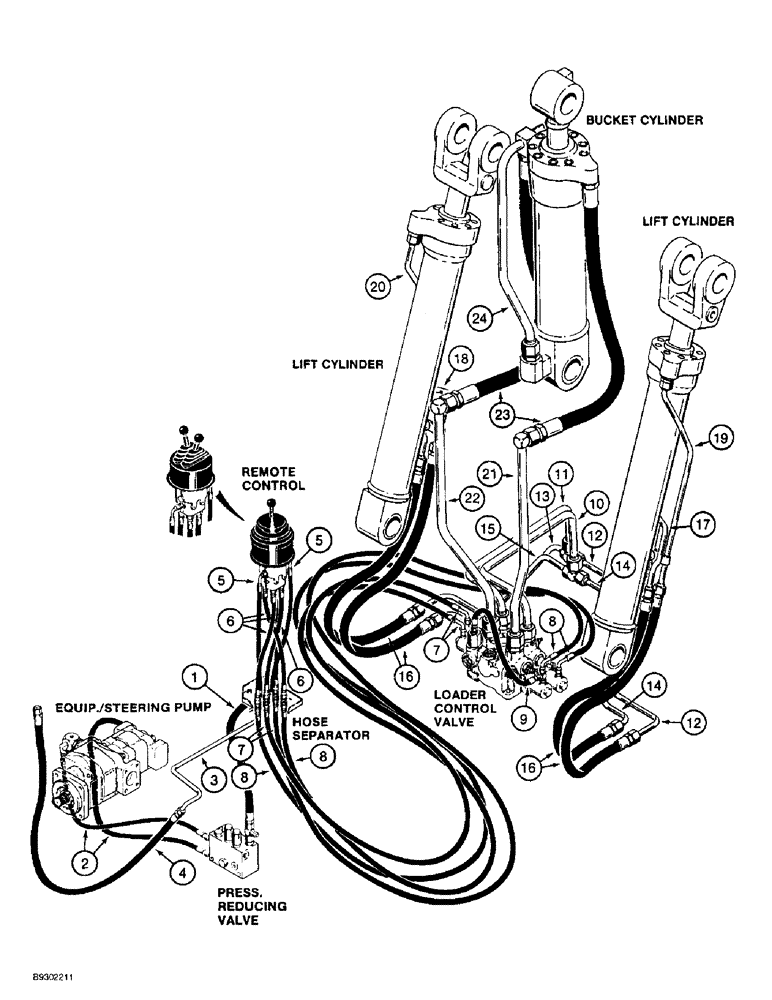

Запчасти Case 721B (1-20) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT - Z-BAR LOADER, TWO SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure 8-79

1шт.

reducing valve

1шт.

2

Hose, pressure reducing, Serial Range: valve-8-79

1шт.

elbow at steering pump

1шт.

3

Tube, hose separator to hose at 8-79

1шт.

hydraulic reservoir

1шт.

4

Hose, tube to hydraulic reservoir 8-79

1шт.

5

Hose, remote control to hose 8-63, 8-65

1шт.

separator, hydraulic reservoir and

1шт.

pressure reducing valve ports

1шт.

6

Hose, hose separator to remote 8-63, 8-65

1шт.

control

1шт.

7

Hose, hose separator to ports 1B 8-67

1шт.

and 2A

1шт.

8

Hose, hose separator to ports 1A 8-67

1шт.

and 2B

1шт.

9

Hose, inlet and outlet, Serial Range: section-8-67

1шт.

tee at port 1A

1шт.

10

Supply tube, right-hand, at valve 8-11

1шт.

, Serial Range: -cylinders

1шт.

11

Supply tube, left-hand, at, Serial Range: valve-8-11

1шт.

cylinders

1шт.

12

Lift tube, right-hand rod end 8-11

1шт.

13

Lift tube, left-hand rod end 8-11

1шт.

14

Lift tube, right-hand closed end 8-11

1шт.

15

Lift tube, left-hand closed end 8-11

1шт.

16

Hose, at cylinders 8-11

1шт.

17

Tube, right-hand, cylinder closed 8-11

1шт.

end

1шт.

18

Tube, left-hand, cylinder closed 8-11

1шт.

end

1шт.

19

Tube, right-hand, cylinder rod end 8-11

1шт.

20

Tube, left-hand, cylinder rod end 8-11

1шт.

21

Supply tube, right-hand 8-13

1шт.

22

Supply tube, left-hand 8-13

1шт.

23

Hose, tube to bucket cylinder 8-13

1шт.

24

Tube, bucket cylinder, closed end 8-13

1шт.
