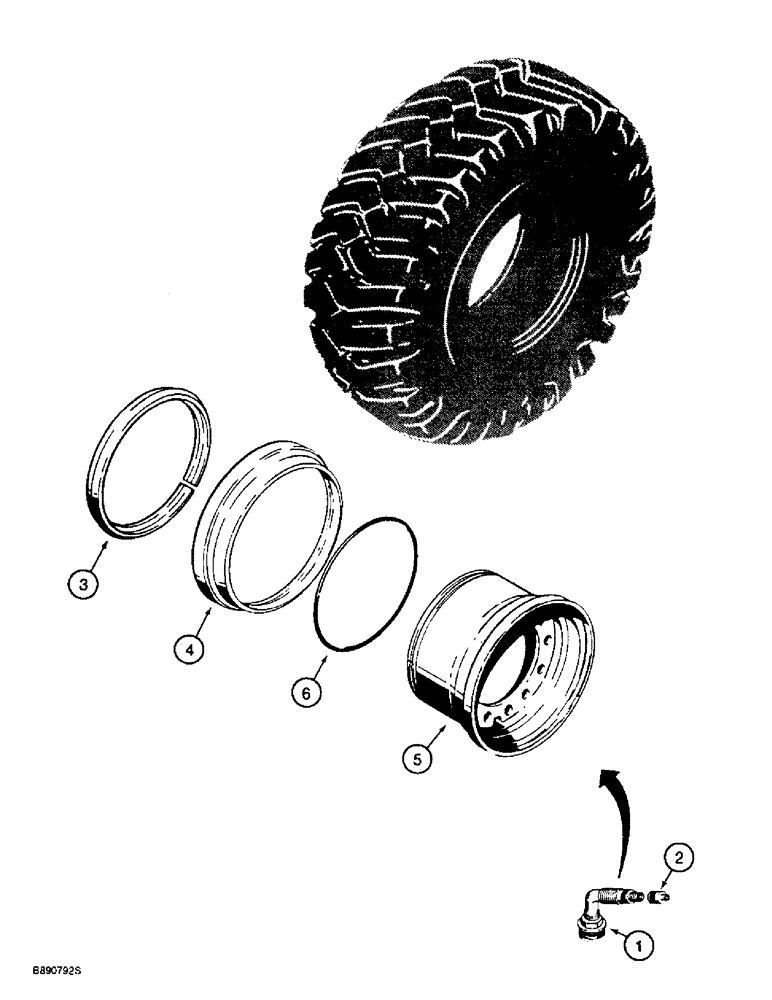

Запчасти Case 721B (6-60) - WHEELS (06) - POWER TRAIN

1

L48133

VALVE STEM

- Tubeless tire, for 17.5 x 25 tires, three piece wheel, Includes: Ref. 2

4шт.

2

L19664

VALVE STEM

CAP - valve, for 17.5 x 25 tires, three piece wheel

1шт.

L119200

RIM

WHEEL ASSEMBLY - rim, three piece, for 17.5 x 25 tires, Includes: Ref. 3 - 6

4шт.

3

N8338

RING

- locking, for wheels stamped with No. 0111551101, for 17.5 x 25 tires, three piece wheel

1шт.

3

A19100

LOCKING RING

RING - locking, for wheels stamped with No. 51474750395 or 51482950399, for 17.5 x 25 tires, three piece wheel

1шт.

4

D87103

RIM

RING - side, for wheels stamped with No. 0111571900, for 17.5 x 25 tires, three piece wheel

1шт.

4

S300702

RING

- side, for wheels stamped with No. 51474750395 or 51482950399, for 17.5 x 25 tires, three piece wheel

1шт.

5

NSS

NOT SOLD SEPARAT

RIM - wheel, for 17.5 x 25 tires, three piece

1шт.

6

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal, for 17.5 x 25 tires, three piece wheel

4шт.

1

L48133

VALVE STEM

- Tubeless tire, for 20.5 x 25 tires, three piece wheel, Includes: Ref. 2

4шт.

2

L19664

VALVE STEM

CAP - valve, for 20.5 x 25 tires, three piece wheel

1шт.

L119191

RIM

WHEEL ASSEMBLY - rim, three piece, for 20.5 x 25 tires, Includes: Ref. 3 - 5

4шт.

3

N8338

RING

- locking, for wheels stamped with No. 0111551101, for 20.5 x 25 tires, three piece wheel

1шт.

3

A19100

LOCKING RING

RING - locking, for wheels stamped with No. 51474750395 or 51482950399, for 20.5 x 25 tires, three piece wheel

1шт.

4

N8337

RING

- side, for wheels stamped with No. 0111551101, for 20.5 x 25 tires, three piece wheel

1шт.

4

S300701

RING

- side, for wheels stamped with No. 51474750395 or 51482950399, for 20.5 x 25 tires, three piece wheel

1шт.

5

NSS

NOT SOLD SEPARAT

RIM - wheel, for 20.5 x 25 tires, three piece

1шт.

6

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal, for 20.5 x 25 tires, three piece wheel

4шт.
