(6-58) - CENTER AND REAR DRIVE SHAFT

Запчасти Case 721B (6-58) - CENTER AND REAR DRIVE SHAFT (06) - POWER TRAIN

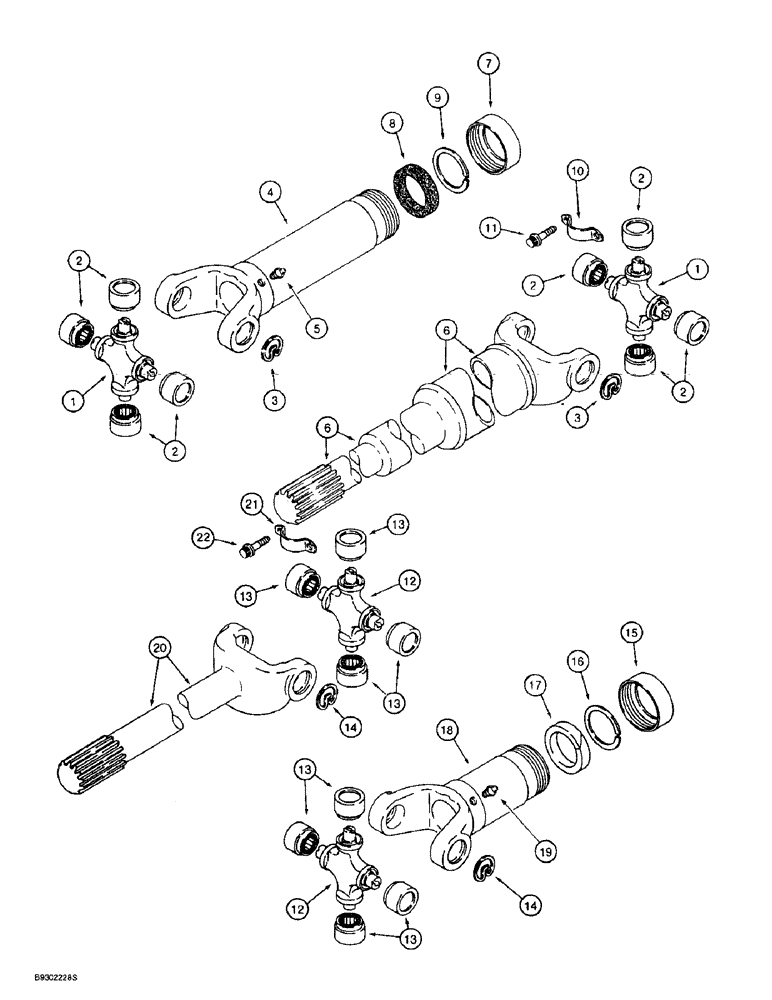

Схема запчастей Case 721B - (6-58) - CENTER AND REAR DRIVE SHAFT (06) - POWER TRAIN
3
16
6
14
11
19
2
15
5
2
4
12
8
18
9
2
13
21
14
13
13
10
22
13
6
3
2
12
20
13
7
1
2
17
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

103712A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, center, Includes: Ref. 1 - 9

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER - shaft, center drive, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, center drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing, center drive shaft

4шт.

3

S92378

RING, SNAP

RING - snap, universal joint, center drive shaft

4шт.

4

877128R91

YOKE

- slip, transmission end, replaces N13547 yoke, center drive shaft

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, extra short, center drive shaft

1шт.

6

226729A1

JAW

YOKE - spline, axle end, replaces 120231A1 yoke, center drive shaft

1шт.

7

S85992

CAP COVER

CAP - dust, drive shaft, center

1шт.

8

S301161

SEAL

- rubber, center drive shaft

1шт.

9

S88377

WASHER

- steel, center drive shaft

1шт.

10

L116943

SECURING STRAP

RETAINER - drive shaft, center

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Bearing strap, Center drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.

103710A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear axle, Includes: Ref. 12 - 20

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER - shaft, rear drive, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, rear drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

RACE - bearing, rear drive shaft

4шт.

14

S92378

RING, SNAP

RING - snap, universal joint, rear drive shaft

4шт.

15

S300645

CAP

- yoke end, rear drive shaft

1шт.

16

S300646

WASHER

WASHER - steel, rear drive shaft

1шт.

17

S300647

WASHER

- cork, rear drive shaft

1шт.

18

S300651

HALF SHAFT

YOKE - slip, axle end, rear drive shaft

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, extra short, rear drive shaft

1шт.

20

120218A1

YOKE

- spline, transmission end, rear drive shaft

1шт.

21

L116943

SECURING STRAP

RETAINER - drive shaft, rear

4шт.

22

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Bearing strap, Rear drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.
