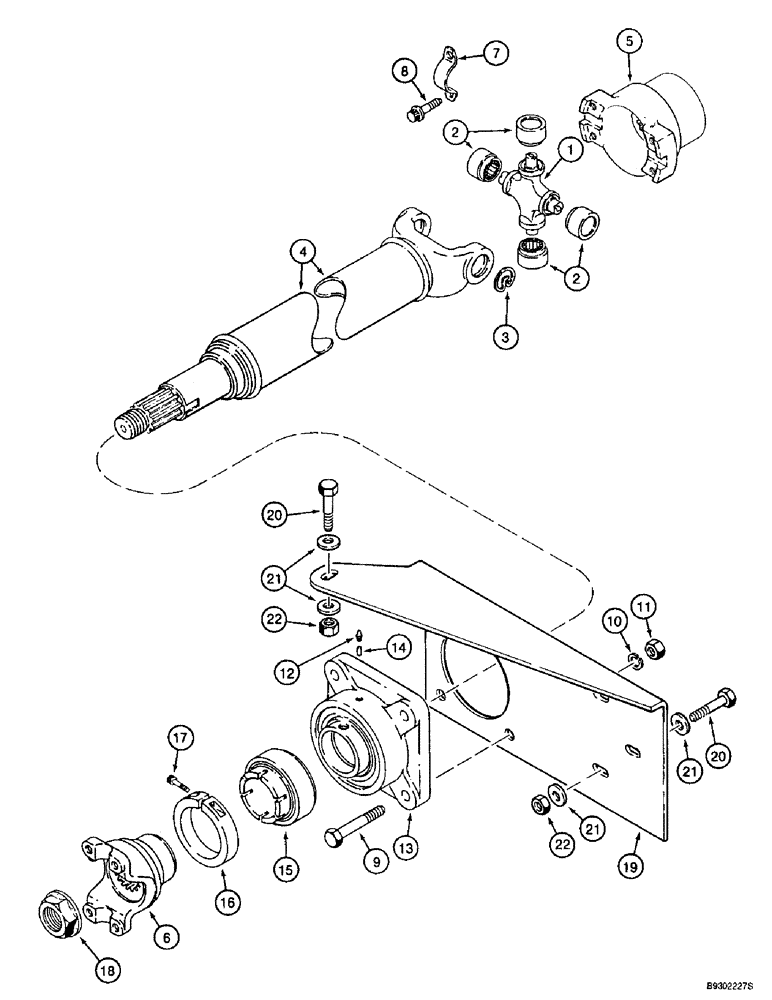

Запчасти Case 721B (6-56) - FRONT DRIVE SHAFT AND SUPPORT BEARING (06) - POWER TRAIN

L127281

SHAFT ASSY.

DRIVE SHAFT ASSEMBLY - front axle, Includes: Ref. 1 - 4

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER - shaft, front drive shaft, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, front drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing, front drive shaft

4шт.

3

S92378

RING, SNAP

RING - snap, universal joint, front drive shaft

4шт.

4

NSS

NOT SOLD SEPARAT

YOKE AND TUBE ASSEMBLY - drive shaft, axle end, front

1шт.

5

REF

INSTRUCTION

FLANGE - companion, drive shaft to front axle, see Ref. 13, figure 6-42

1шт.

6

L116944

YOKE

- drive shaft to center bearing, front

1шт.

7

L116943

SECURING STRAP

RETAINER - drive shaft, front

2шт.

8

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Bearing strap, Front drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

4шт.

9

426-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

- hex, 9/16 NC x 1-3/4 inch, grade 8, drive shaft support bearing

4шт.

10

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft support bearing 9/16"

4шт.

11

425-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC, drive shaft support bearing

4шт.

L106070

FLANGED BEARING

BEARING ASSEMBLY - front drive shaft support, Includes: Ref. 12 - 17

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, extra short, drive shaft support bearing

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing, drive shaft support bearing

1шт.

14

L33788

AXLE PIN

PIN - lock, 1/4 inch diameter, drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, drive shaft support bearing

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING AND SEAL ASSEMBLY - center bearing, drive shaft support

1шт.

16

L33789

COLLAR

- bearing, drive shaft support

1шт.

17

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch, drive shaft support bearing

1шт.

18

L35091

NUT

NUT - hex, special, replaces L117413 nut, drive shaft support bearing

1шт.

19

108167A1

BRACKET

- mounting, support bearing, if used, drive shaft

1шт.

20

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

Drive shaft support bearing Hex, 1/2"-13 x 2", G8

4шт.

21

187563A1

SPACER

- 13 x 25 x 28 mm, drive shaft support bearing

8шт.

22

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC, Drive shaft support bearing

4шт.
