Запчасти Case 721B (6-54) - REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

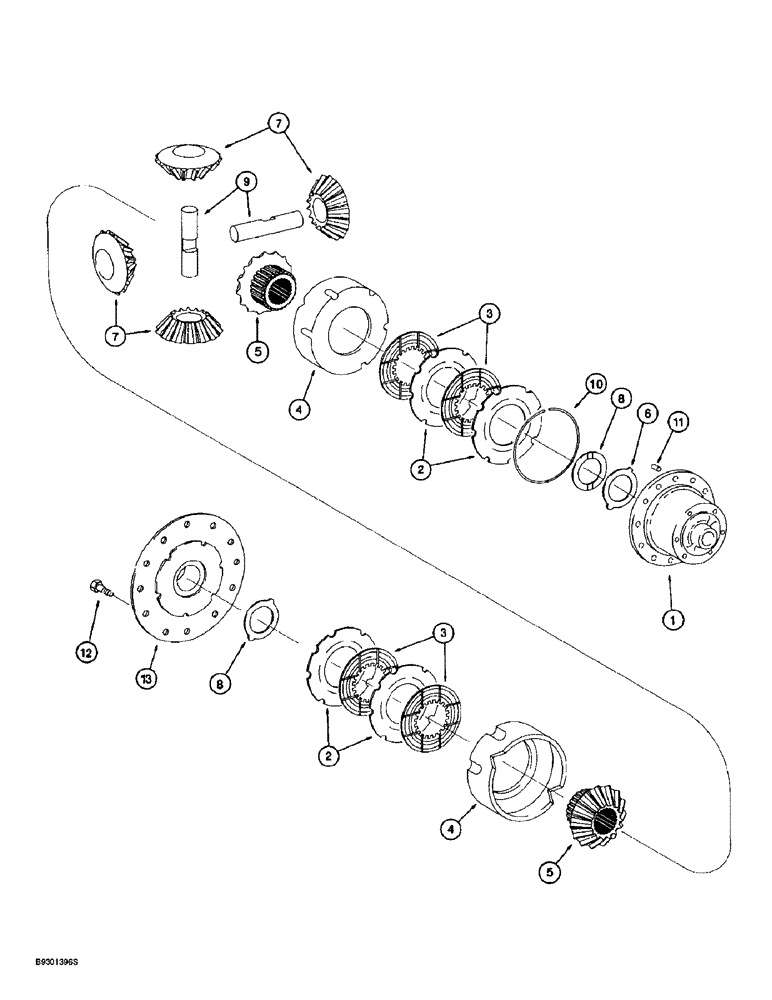

Схема запчастей Case 721B - (6-54) - REAR AXLE DIFFERENTIAL (06) - POWER TRAIN
13
6
3
5
10
7
8
4
2
2
8
4
7
11
5
1
12
3
9

Артикул

Название

Примечание

Количество

107933A1

AXLE

ASSEMBLY - ZF No. 4474 004 155, rear, rear, parts list figures 6-46 - 6-54, Includes: Ref. 1 - 13A

1шт.

231368A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4460 005 254, rear, parts list figures 6-47 - 6-55, Includes: Ref. 1 - 13A

1шт.

124131A1

CYLINDER END CAP

CARRIER ASSEMBLY - includes limited slip differential, includes parts on this figure and figure 6-52, Includes: Ref. 1 - 13A

1шт.

121354A1

VALVE BODY

DIFFERENTIAL ASSEMBLY - limited slip, rear axle, used with 107933A1 axle assembly, Includes: Ref. 1 - 13A

1шт.

177713A1

BODY

DIFFERENTIAL ASSEMBLY - limited slip, rear axle, used with 231368A1 axle assembly, Includes: Ref. 1 - 13A

1шт.

1

121393A1

HOUSING

- differential, used with 107933A1 axle assembly

1шт.

1a

177714A1

HOUSING

- differential, used with 231368A1 axle assembly, not shown

1шт.

2

230548A1

THRUST WASHER

WASHER - thrust, outer clutch, replaces 119332A1 disc

4шт.

2

230549A1

DISC

- 2.4 mm, outer clutch, replaces 119333A1

1шт.

2

230550A1

DISC

- 2.3 mm, outer clutch, replaces 119334A1

1шт.

2

230551A1

DISC

- 2.5 mm, outer clutch, replaces 119335A1

1шт.

3

177732A1

DISC

- replaces 119336A1

4шт.

4

119337A1

RING, SNAP

RING - pressure

2шт.

5

121395A1

PINION

GEAR - 16 teeth, side

2шт.

6

119331A1

THRUST WASHER

- thrust, outer

1шт.

7

119340A1

PINION

GEAR - pinion, 11 teeth

4шт.

8

119330A1

THRUST WASHER

- thrust, inner

2шт.

9

119338A1

SHAFT

- pinion

2шт.

10

119329A1

RING, SNAP

RING - retaining

1шт.

11

119341A1

PIN

- drive

12шт.

12

121398A1

SCREW

- hex, self-locking, special, housing cover

12шт.

13

121396A1

COVER

- housing, used with 107933A1 axle assembly

1шт.

13a

177734A1

COVER

- housing, used with 231368A1 axle assembly, not shown

1шт.

Выбрано товаров: 23
