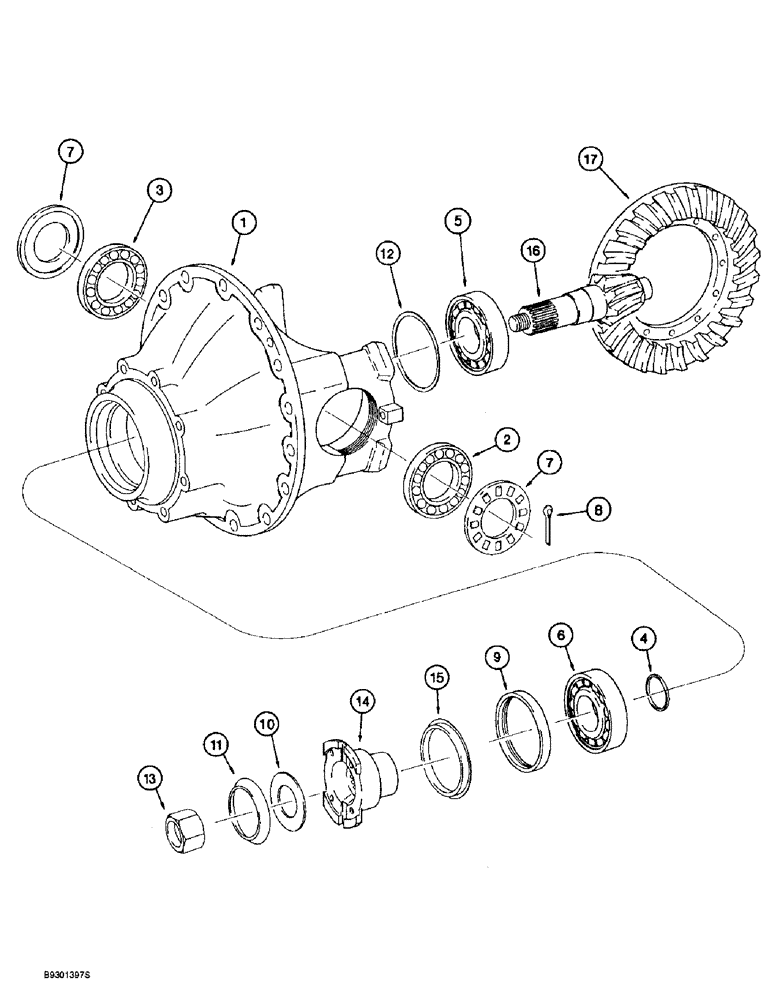

Запчасти Case 721B (6-52) - REAR AXLE DIFFERENTIAL CARRIER (06) - POWER TRAIN

107933A1

AXLE

ASSEMBLY - ZF No. 4474 004 155, rear, parts list figures 6-46 - 6-54, Includes: Ref. 1 - 17

1шт.

231368A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4460 005 254, rear, parts list pages 6-46 - 6-54, Includes: Ref. 1 - 17

1шт.

124131A1

CYLINDER END CAP

CARRIER ASSEMBLY - includes limited slip differential, parts list figure 6-52 and 6-54, Includes: Ref. 1 - 17

1шт.

1

121323A1

HOUSING

- carrier

1шт.

2

654422C1

BEARING ASSY,65 mm ID x 105 mm OD x 24.05 mm

ASSEMBLY - cup and cone, tapered roller, right-hand, replaces 121340A1

1шт.

3

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

BEARING - tapered roller, includes cup, includes cup, left-hand

1шт.

4

119296A1

BLOCK

SPACER - 8.8 mm

1шт.

4

898117H1

RING, SNAP

SPACER - 8.7 mm

1шт.

4

898456H1

RING, SNAP

SPACER - 8.6 mm

1шт.

4

898451H1

SNAP RING

SPACER - 8.5 mm

1шт.

4

898446H1

RING, SNAP

SPACER - 8.4 mm

1шт.

4

119296A1

BLOCK

SPACER - 8.8 mm, replaces 898441H1

1шт.

4

119301A1

BLOCK

SPACER - 8.9 mm

1шт.

4

119305A1

BLOCK

SPACER - 9.1 mm

1шт.

4

119309A1

BLOCK

SPACER - 9.2 mm

1шт.

4

119310A1

BLOCK

SPACER - 9.3 mm

1шт.

4

119311A1

BLOCK

SPACER - 9.4 mm

1шт.

5

121324A1

ROLLER BEARING

BEARING - tapered roller, front

1шт.

6

121325A1

ROLLER BEARING

BEARING - tapered roller, rear

1шт.

7

121343A1

NUT

- adjusting

2шт.

8

119318A1

SPLIT PIN/SAFETY PIN

PIN - cotter

2шт.

9

119315A1

SEAL

- shaft

1шт.

10

119316A1

WASHER

- flat

1шт.

11

119323A1

WASHER

- thrust

1шт.

12

121328A1

WASHER

SHIM - 0.7 mm

1шт.

12

121329A1

WASHER

SHIM - 0.8 mm

1шт.

12

121331A1

WASHER

SHIM - 0.9 mm

1шт.

12

121334A1

WASHER

SHIM - 1.0 mm

1шт.

12

3217664R1

SHIM

- 1.2 mm

1шт.

12

3217663R1

DISC

SHIM - 1.3 mm

1шт.

12

3217662R1

DISC

SHIM - 1.4 mm

1шт.

12

3217661R1

SHIM

- 1.5 mm

1шт.

12

3217660R1

SHIM

- 1.6 mm

1шт.

12

3217659R1

SHIM

- 1.7 mm

1шт.

12

3217658R1

SHIM

- 1.8 mm

1шт.

12

3217657R1

SHIM

- 1.9 mm

1шт.

12

3217656R1

SHIM

- 2.0 mm

1шт.

12

121342A1

WASHER

SHIM - 1.1 mm

1шт.

13

121345A1

NUT

- hex, slotted, pinion

1шт.

14

121346A1

COUPLING FLANGE

FLANGE - input

1шт.

15

119322A1

PROTECTOR

SPACER - flange

1шт.

121351A1

GEAR-SET

GEAR AND PINION ASSEMBLY - differential, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.
