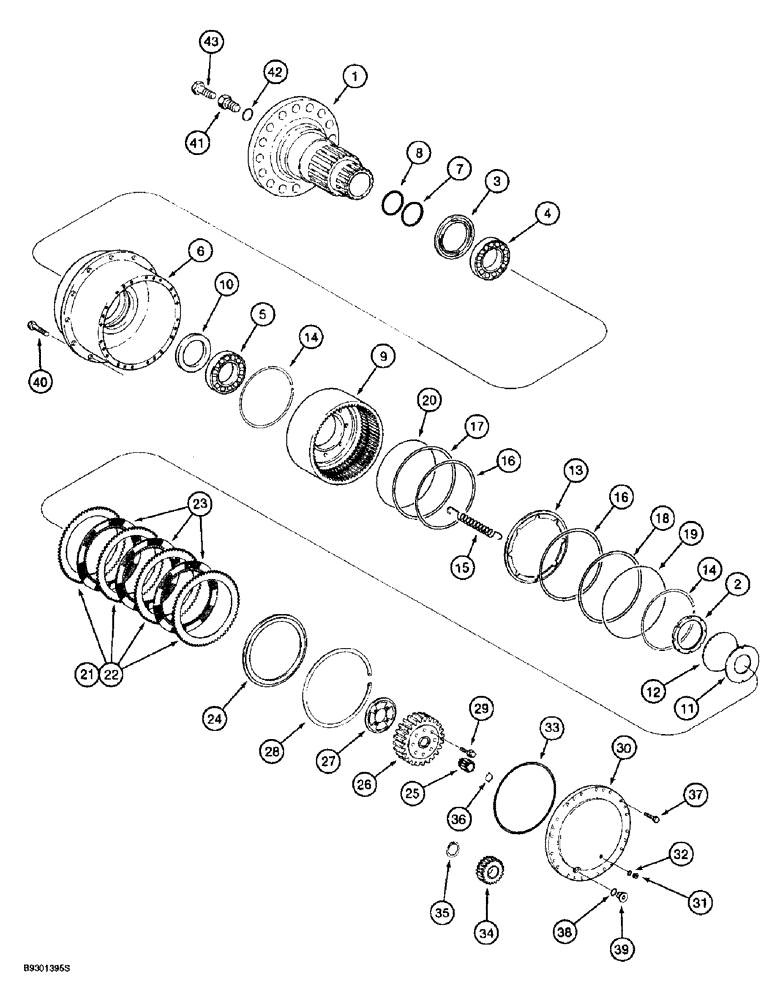

Запчасти Case 721B (6-48) - REAR AXLE HUB, DISC BRAKES AND PLANETARY (06) - POWER TRAIN

107933A1

AXLE

ASSEMBLY - ZF No. 4474 004 155, rear, parts list figures 6-46 - 6-54, Includes: Ref. 1 - 43

1шт.

231368A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4460 005 254, rear, parts list figures 6-46 - 6-54, Includes: Ref. 1 - 43

1шт.

119530A1

HUB

SPINDLE ASSEMBLY - axle, used with107933A1 axle assembly, Includes: Ref. 1 and 2

2шт.

308500A1

SPINDLE

ASSEMBLY - axle, used with 231368A1 axle assembly, Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

SPINDLE - axle

1шт.

2

119386A1

SLOTTED NUT

- slotted

1шт.

3

1964236C1

SEAL,136.8mm ID x 141.3mm OD x 13mm Thk

SEAL - shaft

2шт.

4

119390A1

ROLLER BEARING,105mm ID x 160mm OD x 35mm W

BEARING - tapered roller, inner

2шт.

5

119388A1

ROLLER BEARING,130mm ID x 230mm OD x 43.75mm W

BEARING - tapered roller, outer

2шт.

6

123814A1

HUB ASSY.

HUB - wheel

2шт.

7

119392A1

O-RING,94.4mm ID x 3.1mm Width

- spindle, outer

2шт.

8

119393A1

O-RING,100mm ID x 4mm Width

- spindle, inner

4шт.

9

119394A1

CYLINDER END CAP

GEAR - ring, planetary

2шт.

10

119401A1

WASHER

RING - 4.70 mm thick

1шт.

10

119402A1

WASHER

RING - 5.00 mm thick, no longer available

1шт.

10

119403A1

WASHER

RING - 5.30 mm thick

1шт.

10

119404A1

WASHER

RING - 5.35 mm thick

1шт.

10

119405A1

WASHER

RING - 5.40 mm thick

1шт.

10

119406A1

WASHER

RING - 5.45 mm thick

1шт.

10

119407A1

WASHER

RING - 5.50 mm thick

1шт.

10

119408A1

WASHER

RING - 5.55 mm thick

1шт.

10

119410A1

WASHER

RING - 5.60 mm thick

1шт.

10

119412A1

WASHER

RING - 5.65 mm thick

1шт.

10

119413A1

WASHER

RING - 5.70 mm thick

1шт.

10

119414A1

WASHER

RING - 5.75 mm thick

1шт.

10

119415A1

WASHER

RING - 5.80 mm thick

1шт.

10

119416A1

WASHER

RING - 5.85 mm thick, no longer available

1шт.

10

119417A1

WASHER

RING - 6.06 mm thick

1шт.

11

119418A1

THRUST WASHER

PLATE - thrust

2шт.

12

242216A1

WASHER

- tab, replaces 119419A1

1шт.

13

119421A1

PISTON

- hub

2шт.

14

119422A1

CIRCLIP

RING - retaining

4шт.

15

123735A1

TENSION SPRING

SPRING - tension

16шт.

16

119425A1

WIPER SEAL

SEAL, HYD-CYLINDER, U-ring

4шт.

119425A1 IS 247.5MM O.D., 240.9MM I.D. IT IS CORRECT TO USE THIS PART WITH BOTH 119426A1 AND 119427A1 BACK UP RINGS. THEY ADVISE THAT DUE TO THE ELASTICITY OF THE SEAL RING, IT CAN BE USED FOR BOTH DIAMETERS OF THE PISTON GROOVE. 119426A1 B/U RING IS 247.6MM O.D., 241MM I.D. 119427A1 B/U RING IS 260.1MM O.D., 253.5MM I.D

1шт.

17

119426A1

BACK-UP RING

RING - backup, inner

2шт.

18

119427A1

BACK-UP RING

RING - backup, outer

2шт.

19

119428A1

GUIDE RING

RING - piston, outer

2шт.

20

119429A1

GUIDE RING

RING - piston, inner

2шт.

21

119430A1

NOTCHED DISK

DISC - outer clutch, 4.5 mm

6шт.

22

119431A1

NOTCHED DISK

DISC - wavy, 4.0 mm, outer clutch

4шт.

22

119430A1

NOTCHED DISK

DISC - outer clutch, 4.5 mm

4шт.

23

119433A1

DISC

- flat, inner clutch

6шт.

24

119434A1

BLOCK

SHIM - end

2шт.

25

124194A1

SHAFT

- sun gear, 34 teeth

2шт.

26

281725A1

GEAR

CARRIER - disc, replaces 124196A1

2шт.

27

242222A1

RING

PLATE - carrier, replaces 119437A1

2шт.

28

119438A1

CIRCLIP

RING - snap, used with 281725A1 carrier and 242222A1 plate, Ref. 26 and 27

2шт.

29

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9, used with 281725A1 carrier and 242222A1 plate, Ref. 26 and 27

8шт.

30

124198A1

CYLINDER END CAP

CARRIER - planetary

2шт.

31

119559A1

PLUG

- 16 x 1.5 mm

2шт.

32

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

- plug

2шт.

33

119443A1

O-RING,312mm ID x 2.5mm Width

SEAL - carrier

2шт.

34

123775A1

PINION

GEAR - pinion, planetary

6шт.

35

A52147

RING

- retaining

8шт.

36

119453A1

THRUST WASHER

- thrust, 5.0 mm

1шт.

36

119456A1

THRUST WASHER

- thrust, 6.0 mm

1шт.

36

119459A1

THRUST WASHER

- thrust, 6.3 mm

1шт.

36

119461A1

THRUST WASHER

- thrust, 6.5 mm

1шт.

36

119463A1

THRUST WASHER

- thrust, 3.3 mm

1шт.

36

119464A1

THRUST WASHER

- thrust, 2.9 mm

1шт.

36

119465A1

THRUST WASHER

- thrust, 3.5 mm

1шт.

36

119467A1

THRUST WASHER

- thrust, 3.7 mm

1шт.

36

119468A1

THRUST WASHER

- thrust, 3.9 mm

1шт.

36

119470A1

THRUST WASHER

- thrust, 4.1 mm

1шт.

37

A52314

BOLT

- hex, 14 x 40 mm, class 10.9

48шт.

38

A52372

O-RING,2.5mm Thk x 38mm ID

- plug

2шт.

39

119471A1

PLUG

- hex

2шт.

40

123776A1

WHEEL BOLT

BOLT - wheel

32шт.

41

123622A1

ADAPTER

- bolt

2шт.

42

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

- adapter

2шт.

43

3222214R1

VALVE

- bleeder

2шт.
