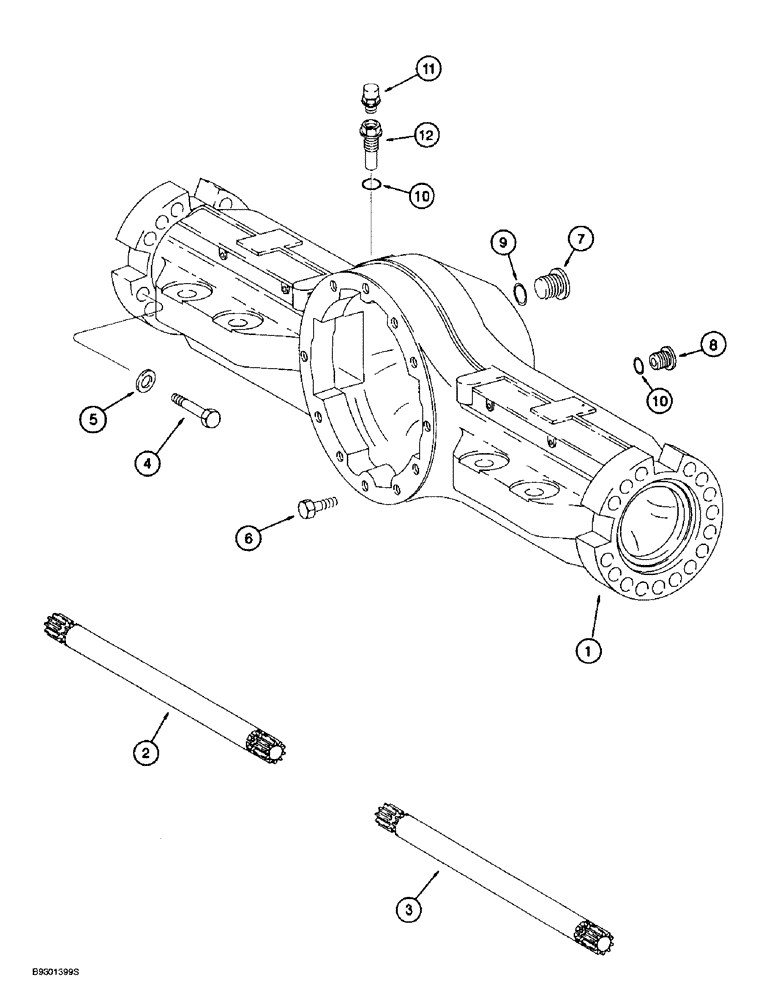

Запчасти Case 721B (6-46) - REAR AXLE HOUSING (06) - POWER TRAIN

107933A1

AXLE

ASSEMBLY - ZF No. 4474 004 155, rear, parts list figures 6-46 - 6-54, Includes: Ref. 1 - 12

1шт.

231368A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4460 005 254, rear, parts list figures 6-46 - 6-54, Includes: Ref. 1 - 12

1шт.

1

124167A1

HOUSING

- axle, used with 107933A1 axle assembly

1шт.

1

308838A1

HOUSING

- axle, used with 231368A1 axle assembly

1шт.

2

121400A1

SHAFT

- axle, 1006 mm long

1шт.

3

124168A1

SHAFT

- axle, 1028 mm long

1шт.

4

119379A1

SCREW

BOLT - hex, special, 20 - 2.5 x 85 mm, class 10.9, used with 107933A1 axle assembly

32шт.

4

308829A1

BOLT,Hex, M20 x 1.5 x 75mm, Grade 10.9

- hex, special, 20 - 1.5 x 75 mm, class 10.9, used with 231368A1 axle assembly

32шт.

5

119381A1

BEARING WASHER

WASHER - bearing cap

32шт.

6

A52094

FLANGE BOLT

BOLT - hex flange, special, differential to axle housing

16шт.

6

3404789R1

SCREW

BOLT - hex flange, special, differential to axle housing

4шт.

7

A48791

PLUG

- hex socket, 42 mm thread

1шт.

8

119349A1

PLUG

- axle housing, special

1шт.

9

A52372

O-RING,2.5mm Thk x 38mm ID

- plug, large

1шт.

10

A52097

O-RING,2mm Thk x 21mm ID

- plug, small

2шт.

11

A48855

VALVE

- breather

1шт.

12

8603256

PLUG

- axle housing, special

1шт.
