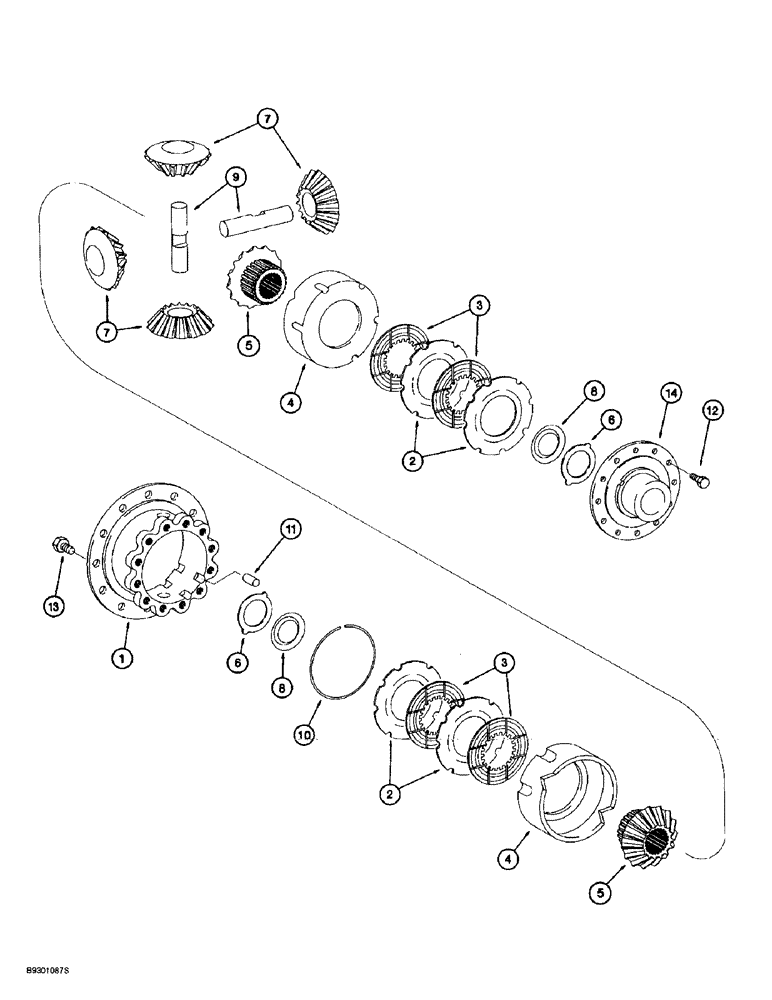

Запчасти Case 721B (6-44) - FRONT AXLE DIFFERENTIAL (06) - POWER TRAIN

107932A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4474 005 150, front, parts list figures 6-36 - 6-44, Includes: Ref. 1 - 17

1шт.

231367A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4460 065 280, front, parts list figures 6-36 - 6-44, Includes: Ref. 1 - 17

1шт.

121456A1

CARRIER

ASSEMBLY - limited slip, includes parts on this figure and figure 6-42, Includes: Ref. 1 - 17

1шт.

119326A1

DIFFERENTIAL

ASSEMBLY - limited slip, 107932A1 axle assembly, Includes: Ref. 1 - 17

1шт.

184721A1

DIFFERENTIAL

ASSEMBLY - limited slip, 231367A1 axle assembly, Includes: Ref. 1 - 17

1шт.

1

119327A1

HOUSING

- differential, 107932A1 axle

1шт.

1a

184722A1

HOUSING

- differential, 231367A1 axle, not shown

1шт.

2

230548A1

THRUST WASHER

WASHER - thrust, replaces 119332A1

4шт.

2

230549A1

DISC

- 2.4 mm, replaces 119333A1

1шт.

2

230550A1

DISC

- 2.3 mm, replaces 119334A1

1шт.

2

230551A1

DISC

- 2.5 mm, replaces 119335A1

1шт.

3

177732A1

DISC

- replaces 119336A1

4шт.

4

119337A1

RING, SNAP

RING - pressure

2шт.

5

119339A1

PINION

GEAR - side, 16 teeth

2шт.

6

242180A1

THRUST WASHER

- tab, outer

2шт.

7

119340A1

PINION

GEAR - pinion, 11 teeth

4шт.

8

119330A1

THRUST WASHER

- thrust, inner

2шт.

9

119338A1

SHAFT

- pinion

2шт.

10

119329A1

RING, SNAP

RING - retaining

1шт.

11

119341A1

PIN

- drive

12шт.

12

119343A1

SCREW

BOLT - hex, self-locking, special, 119342A1 cover

12шт.

13

119344A1

SCREW

BOLT - hex, self-locking, special, 119327A1 housing

12шт.

14

119342A1

COVER

- housing, 107932A1 axle

1шт.

14a

184724A1

COVER

- housing, 231367A1 axle, not shown

1шт.

15

177715A1

SEAL

SEAL - housing, 184722A1 housing, not shown

6шт.

16

193152A1

BOLT

- special, small, 184722A1 housing, not shown

2шт.

17

184725A1

BOLT

BOLT - special, large, 184724A1 cover, not shown

12шт.
