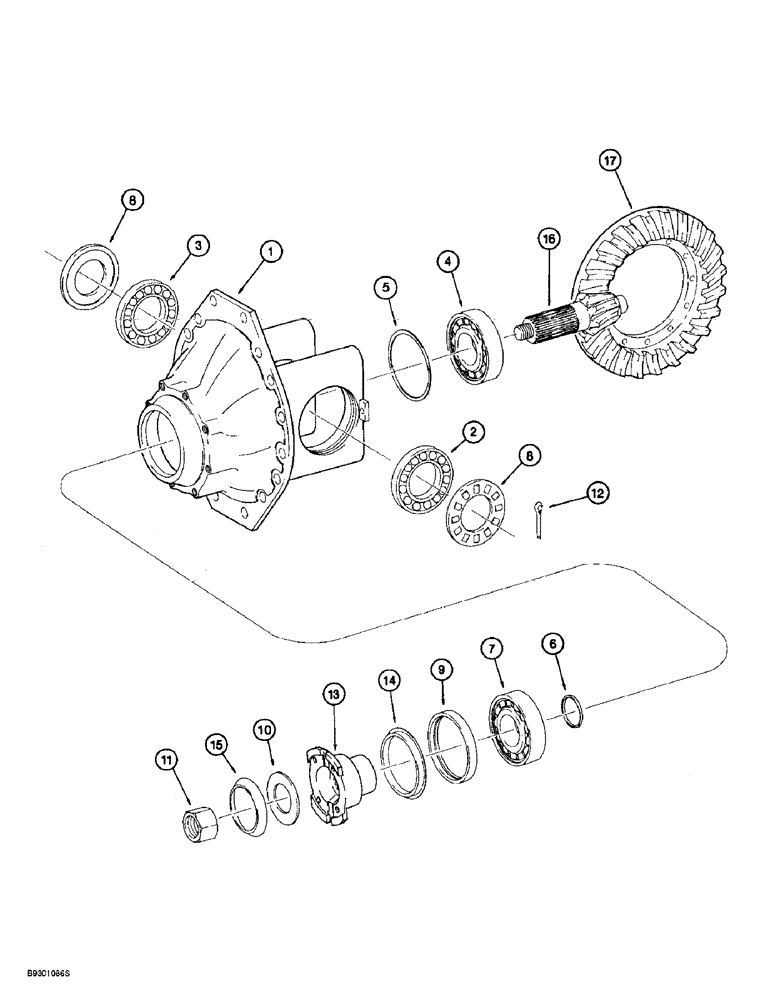

Запчасти Case 721B (6-42) - FRONT AXLE DIFFERENTIAL CARRIER (06) - POWER TRAIN

107932A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4474 005 150, front, parts list figure 6-36 - 6-44, Includes: Ref. 1 - 17

1шт.

231367A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4460 065 280, front, parts list figures 6-36 - 6-44, Includes: Ref. 1 - 17

1шт.

121456A1

CARRIER

ASSEMBLY - limited slip, parts list figure 6-42 and 6-44, Includes: Ref. 1 - 17

1шт.

1

119221A1

HOUSING ASSY.

CASE - carrier

1шт.

2

ST761A

ROLLER BEARING,71.45mm ID x 28.57mm W

CONE - tapered roller bearing, replaces 119222A1 bearing

1шт.

2

108326H

BEARING CUP,3.81" ID x 4.71" OD x 0.92"

CUP - tapered roller bearing

1шт.

3

A67327

BEARING CUP,120 mm OD x 25 mm

CUP - tapered roller bearing

1шт.

3

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

CONE - tapered roller bearing

1шт.

4

119224A1

ROLLER BEARING

- tapered roller, front

1шт.

5

119225A1

SHIM

- 0.7 mm thick

1шт.

5

119226A1

BLOCK

SHIM - 0.8 mm thick

1шт.

5

119227A1

BLOCK

SHIM - 0.9 mm thick

1шт.

5

119228A1

BLOCK

SHIM - 1.0 mm thick

1шт.

5

119229A1

BLOCK

SHIM - 1.1 mm thick

1шт.

5

119230A1

BLOCK

SHIM - 1.2 mm thick

1шт.

5

119231A1

BLOCK

SHIM - 1.3 mm thick

1шт.

5

119233A1

BLOCK

SHIM - 1.4 mm thick

1шт.

5

119293A1

BLOCK

SHIM - 1.5 mm thick

1шт.

5

119294A1

BLOCK

SHIM - 0.2 mm thick

1шт.

5

119295A1

BLOCK

SHIM - 0.1 mm thick

1шт.

6

119296A1

BLOCK

SPACER - 8.8 mm

1шт.

6

898117H1

RING, SNAP

SPACER - 8.7 mm

1шт.

6

898456H1

RING, SNAP

SPACER - 8.6 mm

1шт.

6

898451H1

SNAP RING

SPACER - 8.5 mm

1шт.

6

898446H1

RING, SNAP

SPACER - 8.4 mm

1шт.

6

119296A1

BLOCK

SPACER - 8.8 mm, replaces 898441H1

1шт.

6

119301A1

BLOCK

SPACER - 8.9 mm

1шт.

6

119305A1

BLOCK

SPACER - 9.1 mm

1шт.

6

119309A1

BLOCK

SPACER - 9.2 mm

1шт.

6

119310A1

BLOCK

SPACER - 9.3 mm

1шт.

6

119311A1

BLOCK

SPACER - 9.4 mm

1шт.

7

119312A1

ROLLER BEARING

- tapered roller, rear

1шт.

8

119313A1

NUT

- adjusting

2шт.

9

119315A1

SEAL

- shaft

1шт.

10

119316A1

WASHER

- flat

1шт.

11

119317A1

NUT

- hex slotted, pinion

1шт.

12

119318A1

SPLIT PIN/SAFETY PIN

PIN - cotter

2шт.

13

121346A1

COUPLING FLANGE

FLANGE - input

1шт.

14

119322A1

PROTECTOR

SPACER - flange

1шт.

15

119323A1

WASHER

- thrust

1шт.

121424A1

GEAR-SET

GEAR AND PINION ASSEMBLY - differential

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.
