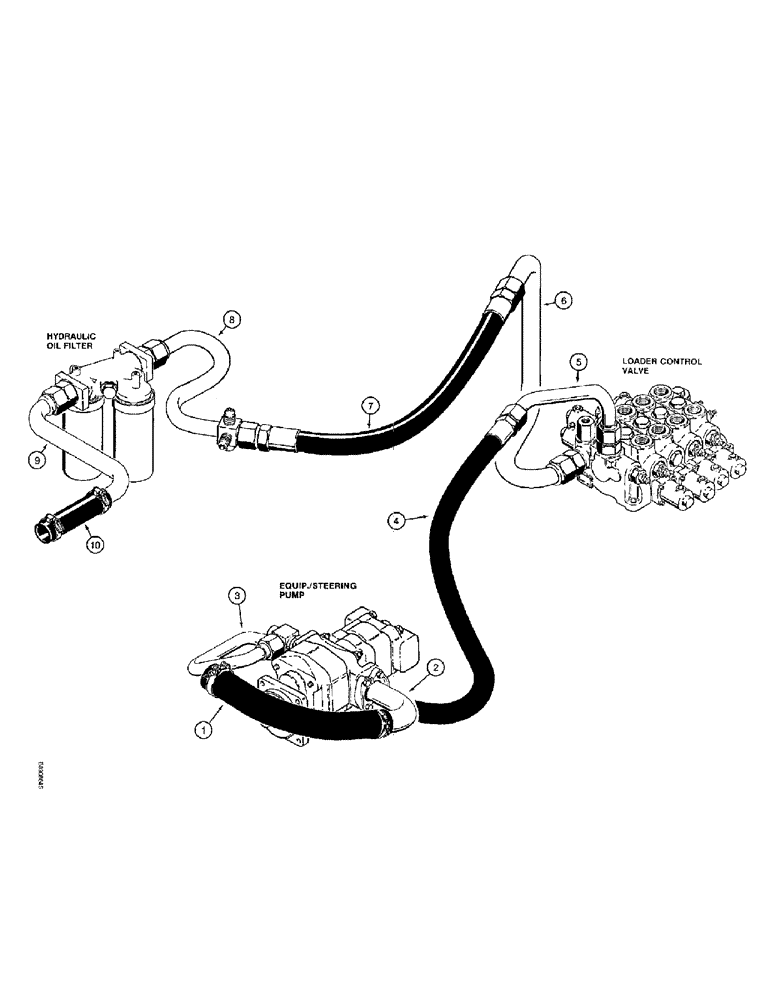

Запчасти Case 721B (1-18) - PICTORIAL INDEX, BASIC HYDRAULIC CIRCUIT, LOADER CONTROL VALVE SUPPLY & RETURN LINES (00) - PICTORIAL INDEX

1

Suction hose, hydraulic reservoir 8-5

1шт.

to tube at pump

1шт.

2

Tube, from suction hose at 8-5

1шт.

hydraulic, Serial Range: reservoir-pump

1шт.

3

Supply tube, pump to hose to loader 8-5

1шт.

control valve

1шт.

4

Supply hose, supply tube at, Serial Range: pump-8-5

1шт.

supply tube at loader control valve

1шт.

5

Supply tube, at loader control 8-5

1шт.

valve

1шт.

6

Return tube, from loader control 8-7

1шт.

valve to, Serial Range: hose-filter

1шт.

7

Return hose, loader control valve 8-7

1шт.

to tube at hydraulic oil filter

1шт.

8

Return tube, hose from loader 8-7

1шт.

control valve to hydraulic oil

1шт.

filter

1шт.

9

Tube, hydraulic oil filter to hose 8-9

1шт.

at hydraulic reservoir

1шт.

10

Hose, tube at hydraulic oil filter 8-9

1шт.

to hydraulic reservoir

1шт.
