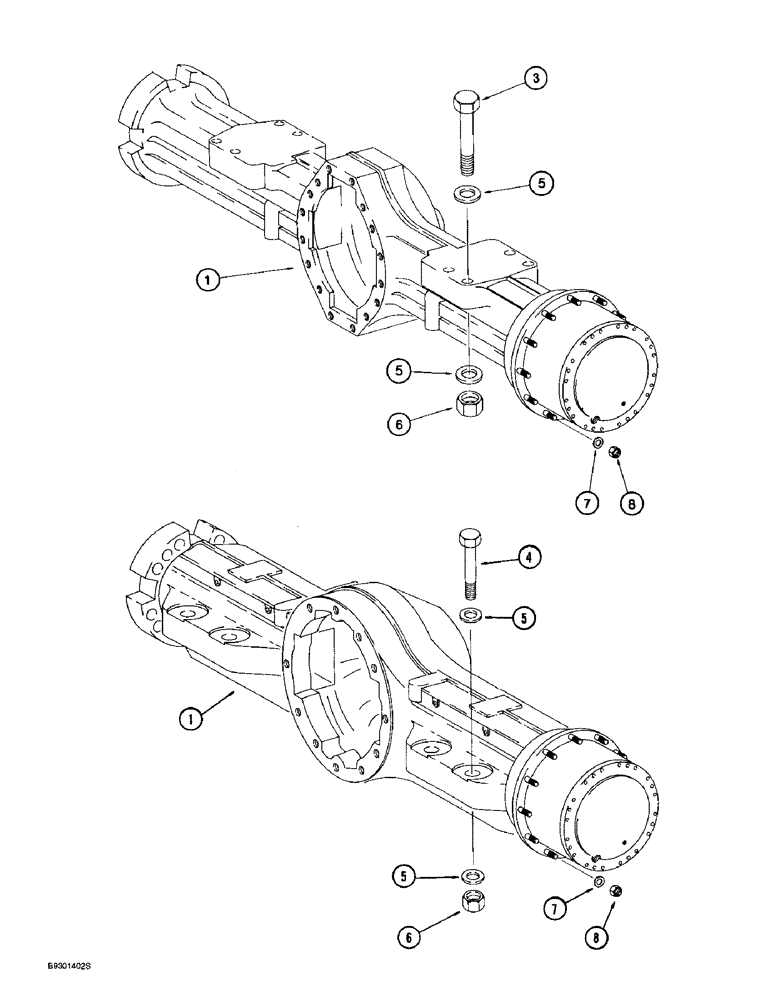

Запчасти Case 721B (6-34) - AXLE ASSEMBLIES AND MOUNTING (06) - POWER TRAIN

1

107932A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4474 005 150, front, parts list figures 6-36 - 6-44

1шт.

1

231367A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4460 065 280, front, parts list figures 6-36 - 6-44

1шт.

2

107933A1

AXLE

ASSEMBLY - ZF No. 4474 004 155, rear, parts list figures 6-46 - 6-54

1шт.

2

231368A1

4WD AXLE ASSY

AXLE ASSEMBLY - ZF No. 4460 005 254, rear, parts list figures 6-46 - 6-54

1шт.

3

27132R1

BOLT,Hex, 1" - 14 x 5 1/2", Gr 8

- hex, 1-14 x 5-1/2 inch, grade 8

8шт.

4

328-1696

BOLT,Hex, 1" - 14 x 6", Gr 8

8шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

32шт.

6

232-24016

NUT,1"-14, GB

NUT, LOCK, 1"-14, GB

16шт.

7

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, special, wheel mounting

64шт.

8

25-1712

NUT,3/4"-16, G5, Hvy

- heavy hex, 3/4 inch NF, wheel mounting

64шт.
