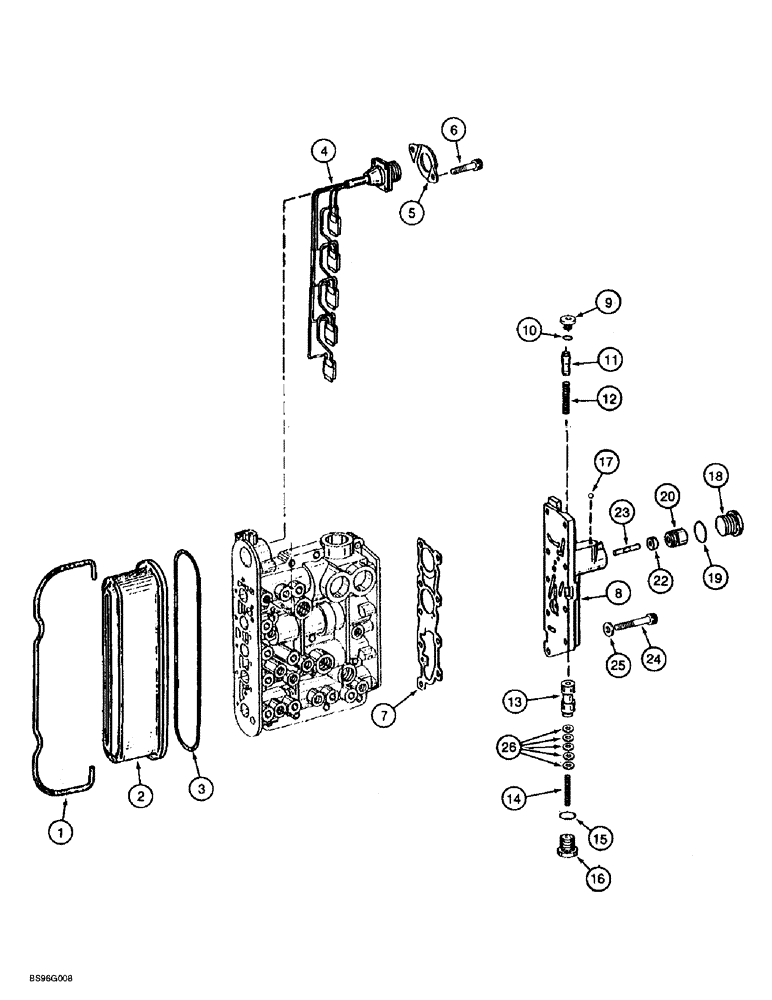

Запчасти Case 721B (6-32) - TRANSMISSION ASSEMBLY, CONTROL VALVE - L129912 AND 183093A1 TRANS., PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 004 219, see figure 6-4 for parts list information, Includes: Ref. 1 - 26

1шт.

LR129912

REMAN-TRANSMISSION

721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

LC129912

CORE-TRANSMISSION

Return Number

1шт.

183093A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 100, replaces L129912, see figure 6-4 for parts list information, Includes: Ref. 1 - 26

1шт.

183093A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 100

1шт.

183093A1C

CORE-TRANSMISSION

Return Number

1шт.

100333A1

VALVE

VALVE ASSEMBLY - transmission control, includes all Ref. on this figure and figures 6-30 and 6-31A, Includes: Ref. 1 - 26

1шт.

1

100361A1

CLAMP

CLAMP - wire, solenoid cover

1шт.

2

100360A1

COVER

COVER - solenoid, used in 100334A1 and 178911A1 transmission control valve body only, see figure 6-30

1шт.

2

129808A1

COVER

COVER - solenoid, used in 185437A1 transmission control valve body only, see figure 6-30

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL - solenoid cover, used in 100334A1 and 178911A1 transmission control valve body only, see figure 6-30

1шт.

3

129809A1

O-RING,159.2mm ID x 5.7mm Width

SEAL - solenoid cover, used in 185437A1 transmission control valve body only, see figure 6-30

1шт.

4

100357A1

HARNESS

HARNESS - transmission control valve

1шт.

5

100359A1

LARGE PLATE

PLATE, LARGE BRACKET - harness mounting

1шт.

6

199064A1

SCREW

SCREW - cap, replaces 100358A1

2шт.

7

231128A1

GASKET,0.55mm Thk

GASKET - cover, replaces 100351A1

1шт.

8

100362A1

HOUSING

COVER - valve, front, used in 100334A1 and 178911A1 transmission control valve body only, see figure 6-30

1шт.

8

129810A1

LARGE PLATE

PLATE, LARGE COVER - valve, front, used in 185437A1 transmission control valve body only, see figure 6-30

1шт.

9

100367A1

PLUG

PLUG - hex socket, special

1шт.

10

100369A1

O-RING,9.5mm ID x 2mm Width

O-RING - plug, plug

1шт.

11

100366A1

PISTON

SPOOL - relief

1шт.

12

100368A1

COMPRESSION SPRING

SPRING - relief spool

1шт.

13

100370A1

PISTON

SPOOL - relief

1шт.

14

N14721

SPRING

SPRING - relief spool

1шт.

15

106970A1

SEALING RING

SEAL - plug, replaces S300495

1шт.

16

129792A1

PLUG

PLUG - hex socket, special, 18 x 1.5 mm, replaces 934164R1

1шт.

17

S300552

BALL

BALL - valve

4шт.

18

S301601

PLUG

PLUG - hex, special, if used

1шт.

19

S301602

O-RING,2mm Thk x 17mm ID

O-RING - plug, if used

1шт.

20

100364A1

PISTON

PISTON - 20.5 mm, if used

1шт.

20

131082A1

PISTON

PISTON - 21.0 mm, if used

1шт.

20

100365A1

PISTON

PISTON - 21.5 mm, if used

1шт.

22

S301604

SHIM

SHIM - 2.0 mm thick, if used

1шт.

22

S301605

SHIM

SHIM - 3.0 mm thick, if used

1шт.

22

S301606

SHIM

SHIM - 4.0 mm thick, if used

1шт.

22

S301607

SHIM

SHIM - 6.0 mm thick, if used

1шт.

22

S301608

SHIM

SHIM - 8.0 mm thick, if used

1шт.

23

S301603

NEEDLE

PLUNGER - valve

1шт.

24

131080A1

SCREW,M6 x 20mm, Gr 8.8

BOLT - hex socket, special, 6 - 1.0 x 20 mm, replaces 100363A1

9шт.

25

3078026R1

WASHER,M6.4

WASHER - flat, special

9шт.

26

S301611

SHIM,0.5mm Thk

SHIM, , If used 0.5mm Thk

10шт.
