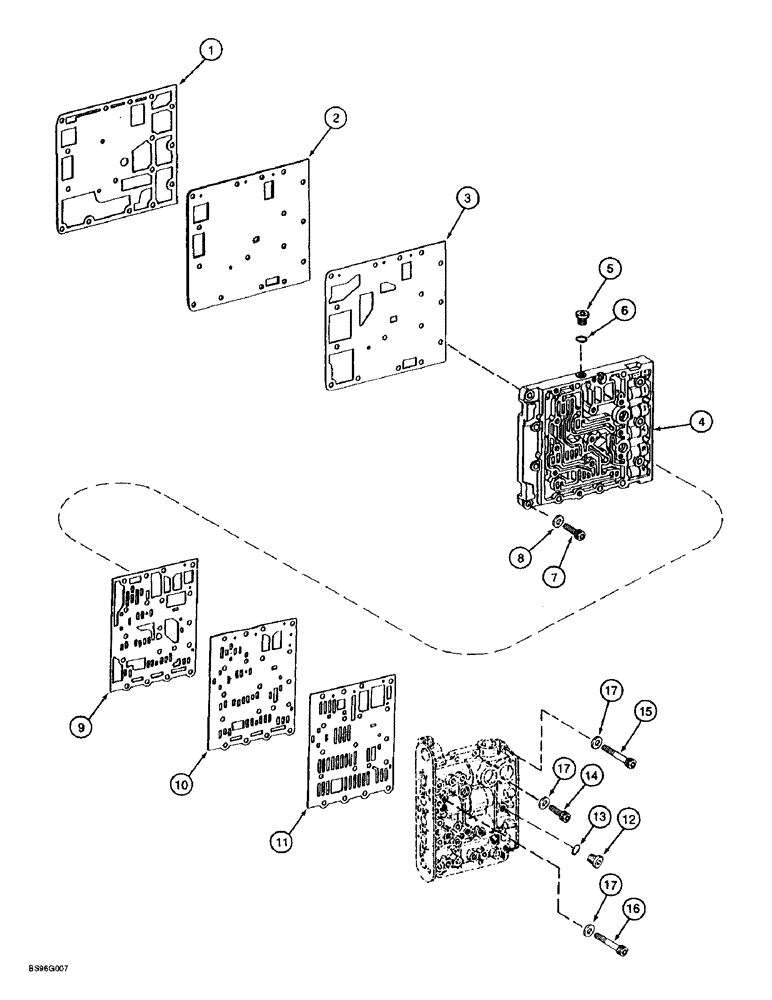

Запчасти Case 721B (6-28) - TRANSMISSION ASSEMBLY, VALVE PLATES AND HYDRAULICS (06) - POWER TRAIN

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 004 219, see figure 6-4 for parts list information, Includes: Ref. 1 - 17, Serial Range: -JEE0052701

1шт.

LR129912

REMAN-TRANSMISSION

721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

LC129912

CORE-TRANSMISSION

Return Number

1шт.

183093A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 100, replaces L129912, see figure 6-4 for parts list information, Includes: Ref. 1 - 17, Serial Range: -JEE0052701

1шт.

183093A1R

REMAN-TRANSMISSION

Remanufactured Transmission;721B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 100

1шт.

183093A1C

CORE-TRANSMISSION

Return Number

1шт.

241953A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 135, see figure 6-4 for parts list information, Includes: Ref. 1 - 17, Start Serial: JEE0052701

1шт.

241953A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, P.I.N. JEE0052701 & after, Model Number 4WG200, Stock Number 4644 024 135

1шт.

241953A1C

CORE-TRANSMISSION

Return number

1шт.

1

103610A1

GASKET,0.35mm Thk

GASKET - plate, at transmission housing

1шт.

2

106945A1

COVER

PLATE - valve, transmission housing to channel plate

1шт.

3

103612A1

GASKET,0.35mm Thk

GASKET - valve plate

1шт.

4

103613A1

LARGE PLATE

PLATE, LARGE PLATE - hydraulic channel

1шт.

5

A52230

PLUG

PLUG - hex socket, 10 mm - 1

1шт.

6

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - special

1шт.

7

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

SCREW - hex socket, 8 - 1.25 x 35 mm, 8.8

11шт.

8

934033R1

WASHER,M8 x 15 x 2

WASHER - flat, special

11шт.

9

103614A1

GASKET

GASKET - used with L129912 transmission, no longer available, order 129790A1 gasket, Ref. 9, and 129791A1 plate, Ref. 9A

1шт.

9

129790A1

GASKET,0.4mm Thk

GASKET - used with L129912, 183093A1 and 241953A1 transmissions

1шт.

9a

129791A1

COVER

PLATE - valve, not shown, used with L129912, 183093A1 and 241953A1 transmissions

1шт.

10

183244A1

LID

1шт.

11

103616A1

GASKET,0.35mm Thk

GASKET -

1шт.

12

A52230

PLUG

PLUG - hex socket, 10 mm - 1, if used

1шт.

13

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - special, if used

1шт.

14

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

SCREW - hex socket, 8 - 1.25 x 35 mm, 8.8

11шт.

15

100332A1

SCREW

BOLT - hex socket, special, 8 - 1.25 x 60 mm

1шт.

16

100331A1

SCREW

BOLT - hex socket, special, 8 - 1.25 x 65 mm

5шт.

17

934033R1

WASHER,M8 x 15 x 2

WASHER - flat, special

17шт.
