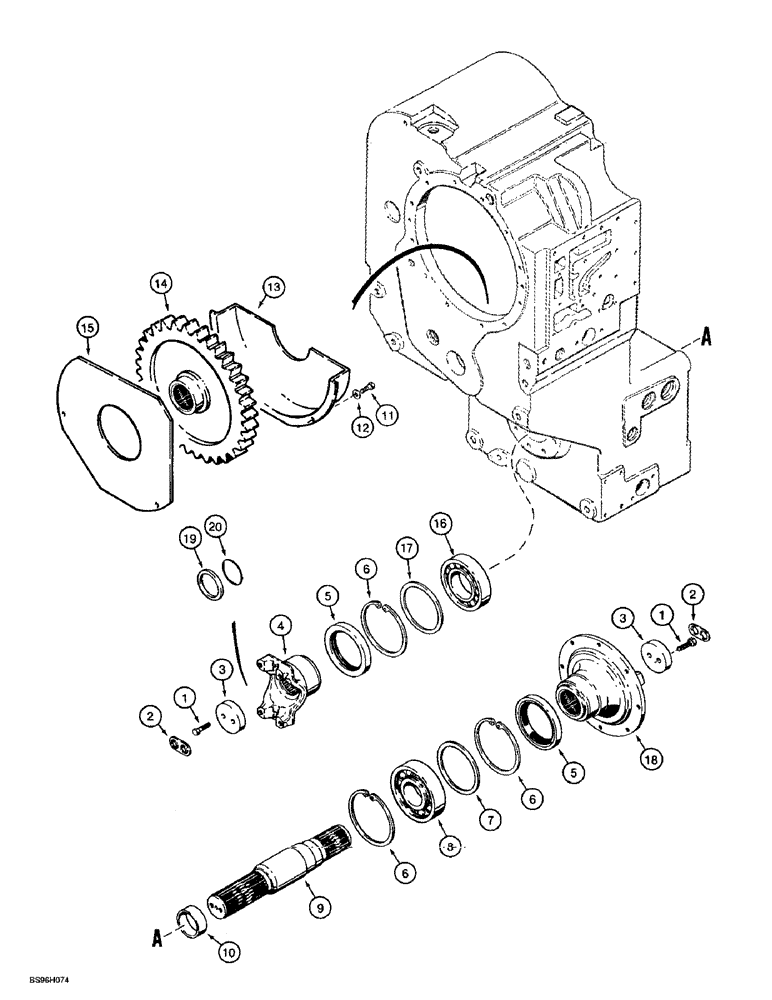

Запчасти Case 721B (6-26) - TRANSMISSION ASSEMBLY, OUTPUT SHAFT AND GEAR (06) - POWER TRAIN

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 004 219, see figure 6-4 for parts list information, Includes: Ref. 1 - 20, Serial Range: -JEE0052701

1шт.

LR129912

REMAN-TRANSMISSION

721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

LC129912

CORE-TRANSMISSION

Return Number

1шт.

183093A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 100, replaces L129912 , Includes: Ref. 1 - 20, Serial Range: -JEE0052701

1шт.

183093A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 100

1шт.

183093A1C

CORE-TRANSMISSION

Return Number

1шт.

241953A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 135, see figure 6-4 for parts list information, Includes: Ref. 1 - 20, Start Serial: JEE0052701

1шт.

241953A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, P.I.N. JEE0052701 & after, Model Number 4WG200, Stock Number 4644 024 135

1шт.

241953A1C

CORE-TRANSMISSION

Return Number

1шт.

1

100438A1

SCREW

BOLT - hex, special, 10 - 1.5 x 30 mm

4шт.

2

E135165

PLATE

PLATE, LARGE PLATE - locking

2шт.

3

E135181

WASHER

RETAINER - flange

2шт.

4

107936A1

SHIN

FLANGE - output, rear

1шт.

5

E135151

OIL SEAL

SEAL - oil, flange

2шт.

6

S300472

CIRCLIP

RING - snap, internal

3шт.

7

E135260

NOTCHED DISK

SHIM - 0.2 mm thick

1шт.

7

S300473

SHIM,0.3mm Thk

SHIM, 0.3mm Thk

1шт.

7

S300474

SHIM,0.5mm Thk

SHIM, 0.5mm Thk

1шт.

7

E135096

SHIM,100mm ID x 119.8mm OD x 1.5mm Thk

SHIM, 1.5mm Thk

1шт.

7

E135095

SHIM,1.6mm Thk

SHIM, 1.6mm Thk

1шт.

7

E135094

SHIM,100mm ID x 119.8mm OD x 1.7mm Thk

SHIM, 1.7mm Thk

1шт.

7

E135093

SHIM,100mm ID x 119.8mm OD x 1.8mm Thk

SHIM, 1.8mm Thk

1шт.

7

S301086

SHIM,0.2mm Thk

SHIM, 0.2mm Thk

1шт.

7

185061A1

SHIM

SHIM - 1.0 mm thick

1шт.

7

185062A1

SHIM

SHIM - 1.1 mm thick

1шт.

7

33-1082T1

SHIM

SHIM - 1.2 mm thick, replaces 185063A1

1шт.

7

185064A1

SHIM

SHIM - 1.3 mm thick

1шт.

7

185065A1

SHIM,100mm ID x 119.83mm OD x 1.4mm Thk

SHIM - 1.4 mm thick

1шт.

8

ST297

BEARING, BALL

BEARING - ball, 4-3/4 inch O.D., replaces L31494

1шт.

9

E135255

SHAFT

SHAFT - output

1шт.

10

E135112

BUSHING

BUSHING - output shaft

1шт.

11

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

WASHER - flat, 9 x 17 x 1.6 mm

2шт.

13

S300451

COVER

COVER - output gear

1шт.

14

E135256

PINION

GEAR - output, used with L129912 transmission

1шт.

14

187241A1

PINION

GEAR - output, used with 183093A1 and 241953A1 transmissions

1шт.

15

E135245

PLATE

PLATE - output gear

1шт.

16

S300471

BEARING, ROLLER,65 mm ID x 120 mm OD x 23 mm

BEARING - roller

1шт.

17

E135164

RACE

RACE - bearing

1шт.

18

107937A1

SHIN

FLANGE - output, parking brake, front

1шт.

19

187242A1

WASHER

SPACER - 0.6 mm thick, if used, used with 183093A1 and 241953A1 transmissions only

1шт.

19

187243A1

WASHER

SPACER - 1.1 mm thick, if used, used with 183093A1 and 241953A1 transmissions only

1шт.

20

187244A1

GASKET,4mm Thk x 48mm ID

O-RING - sealing, used with 183093A1 and 241953A1 transmissions only

2шт.
