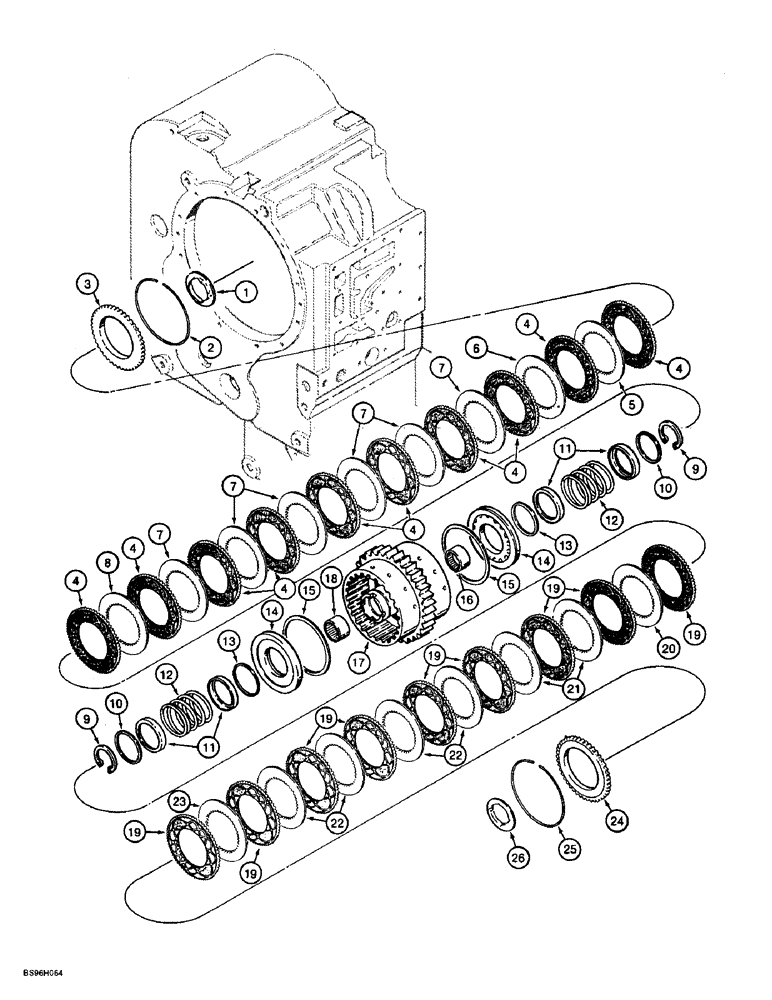

Запчасти Case 721B (6-24) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK (06) - POWER TRAIN

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 004 219, see figure 6-4 for parts list information, Includes: Ref. 1 - 26, Serial Range: -JEE0052701

1шт.

LR129912

REMAN-TRANSMISSION

721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

LC129912

CORE-TRANSMISSION

Return Number

1шт.

183093A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 100, replaces L129912, see figure 6-4 for parts list information, Includes: Ref. 1 - 26, Serial Range: -JEE0052701

1шт.

183093A1R

REMAN-TRANSMISSION

Remanufactured Transmission;721B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 100

1шт.

183093A1C

CORE-TRANSMISSION

Return Number

1шт.

241953A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 135, see figure 6-4 for parts list information, Includes: Ref. 1 - 26, Start Serial: JEE0052701

1шт.

241953A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, P.I.N. JEE0052701 & after, Model Number 4WG200, Stock Number 4644 024 135

1шт.

241953A1C

CORE-TRANSMISSION

Return number

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth clutches, Includes: Ref. 26

1шт.

1

237353A1

THRUST WASHER

WASHER - thrust, used with L129912 and 183093A1 transmissions, replaces 183525A1

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

1

252365A1

THRUST PLATE

WASHER - thrust, used with 241953A1 transmission

1шт.

2

185439A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.25 mm thick, if used

1шт.

2

185440A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.30 mm thick, if used

1шт.

2

185441A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.35 mm thick, if used

1шт.

2

185442A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.40 mm thick, if used

1шт.

2

185443A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.45 mm thick, if used

1шт.

2

187238A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.20 mm thick, if used

1шт.

2

185444A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.50 mm thick, if used

1шт.

2

185445A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.15 mm thick, if used

1шт.

2

185446A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.10 mm thick, if used

1шт.

3

E135222

NOTCHED DISK

PLATE - backing, third gear end

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre, external teeth

10шт.

5

E135224

NOTCHED DISK

DISC - steel, internal teeth, 1.5 mm thick, if used

1шт.

5

E135226

NOTCHED DISK

DISC - steel, internal teeth, 2.0 mm thick, if used

1шт.

5

E135225

NOTCHED DISK

DISC - steel, internal teeth, 2.5 mm thick, if used

1шт.

6

E135224

NOTCHED DISK

DISC - steel, internal teeth, 1.5 mm thick, if used

1шт.

7

E135226

NOTCHED DISK

DISC - steel, internal teeth, 2.0 mm thick

6шт.

8

E135225

NOTCHED DISK

DISC - steel, internal teeth, 2.5 mm thick

1шт.

9

E135219

SEALING RING

GASKET - external

2шт.

10

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

11

E135220

GUIDE RING

GUIDE - spring

4шт.

12

E135131

SPRING

SPRING - clutch

2шт.

13

106876A1

SEALING RING,60mm ID x 2.5mm Thk

SEALRING RING - seal

2шт.

14

S301540

PISTON

PISTON - clutch, used with L129912 transmission

2шт.

14

185168A1

PISTON

PISTON - clutch, used with 183093A1 and 241953A1 transmission

2шт.

15

199070A1

SEALING RING

SEALRING RING - seal, replaces E135142

2шт.

16

E135044

BEARING, NEEDLE

BEARING - needle

1шт.

17

183198A1

PINION CARRIER

HOUSING - third and fourth clutches, used with L129912 and 183093A1 transmissions, replaces 106922A1

1шт.

17

237369A1

PINION CARRIER

HOUSING - third and fourth clutches, used with 241953A1 transmission

1шт.

18

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

BEARING - needle

1шт.

19

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre, external teeth

9шт.

20

E135225

NOTCHED DISK

DISC - steel, internal teeth, 2.5 mm thick

1шт.

21

E135226

NOTCHED DISK

DISC - steel, internal teeth, 2.0 mm thick

2шт.

22

E135224

NOTCHED DISK

DISC - steel, internal teeth, 1.5 mm thick

4шт.

23

E135224

NOTCHED DISK

DISC - steel, internal teeth, 1.5 mm thick, if used

1шт.

23

E135226

NOTCHED DISK

DISC - steel, internal teeth, 2.0 mm thick, if used

1шт.

23

E135225

NOTCHED DISK

DISC - steel, internal teeth, 2.5 mm thick, if used

1шт.

24

E135222

NOTCHED DISK

PLATE - backing, fourth gear end

1шт.

25

185439A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.25 mm thick, if used

1шт.

25

185440A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.30 mm thick, if used

1шт.

25

185441A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.35 mm thick, if used

1шт.

25

185442A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.40 mm thick, if used

1шт.

25

185443A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.45 mm thick, if used

1шт.

25

187238A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.20 mm thick, if used

1шт.

25

185444A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.50 mm thick, if used

1шт.

25

185445A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.15 mm thick, if used

1шт.

25

185446A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.10 mm thick, if used

1шт.

26

237353A1

THRUST WASHER

WASHER - thrust, used with L129912 and 183093A1 transmissions, replaces 183525A1

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

26

252366A1

LARGE PLATE

PLATE, LARGE WASHER - thrust, used with 241953A1 transmission

1шт.
