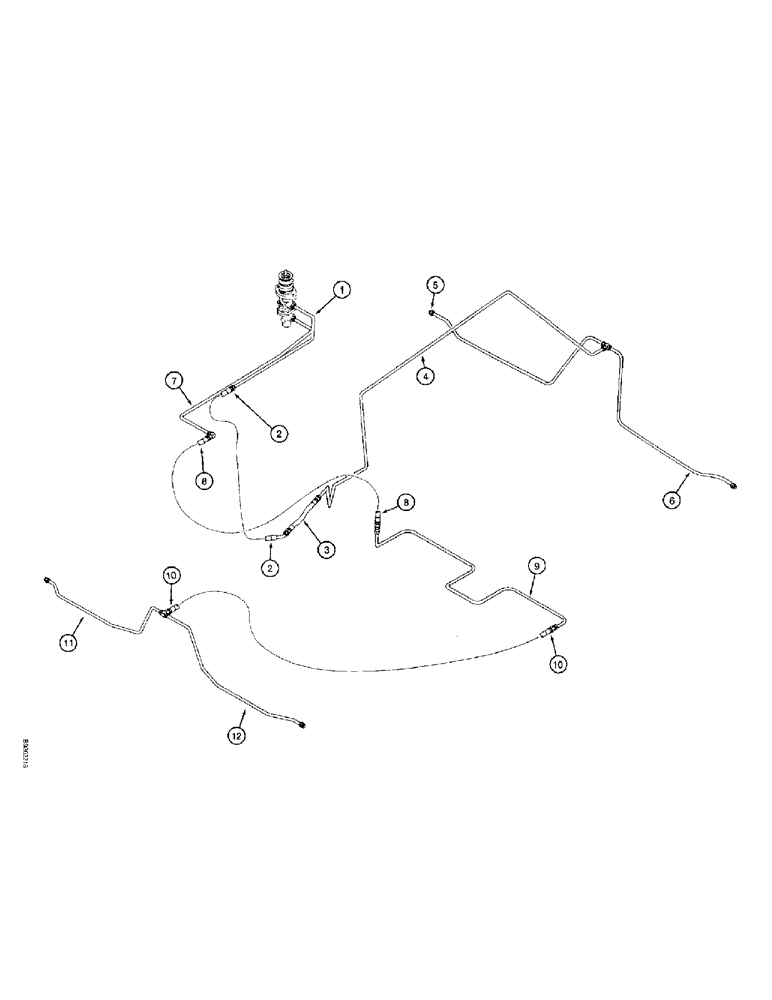

Запчасти Case 721B (1-16) - PICTORIAL INDEX, MAIN BRAKE HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Tube, brake valve upper, Serial Range: port-7-17

1шт.

hose to tubes at front axle

1шт.

2

Hose, at tube from brake valve 7-17

1шт.

upper port to tubes at front axle

1шт.

3

Hose, at tube to tubes at front 7-17

1шт.

axle

1шт.

4

Tube, to tubes at front axle 7-17

1шт.

5

Left-hand tube, tee to front axle 7-17

1шт.

6

Right-hand tube, tee to front axle 7-17

1шт.

7

Tube, brake valve lower, Serial Range: port-7-19

1шт.

hose to tubes at rear axle

1шт.

8

Hose, at tube from brake valve 7-19

1шт.

lower port to tubes at rear axle

1шт.

9

Tube, at hose from brake valve 7-19

1шт.

lower port to hose to, Serial Range: tubes-rear

1шт.

axle

1шт.

10

Hose, from tube to tee at rear axle 7-19

1шт.

11

Left-hand tube, tee to rear axle 7-19

1шт.

12

Right-hand tube, tee to rear axle 7-19

1шт.
