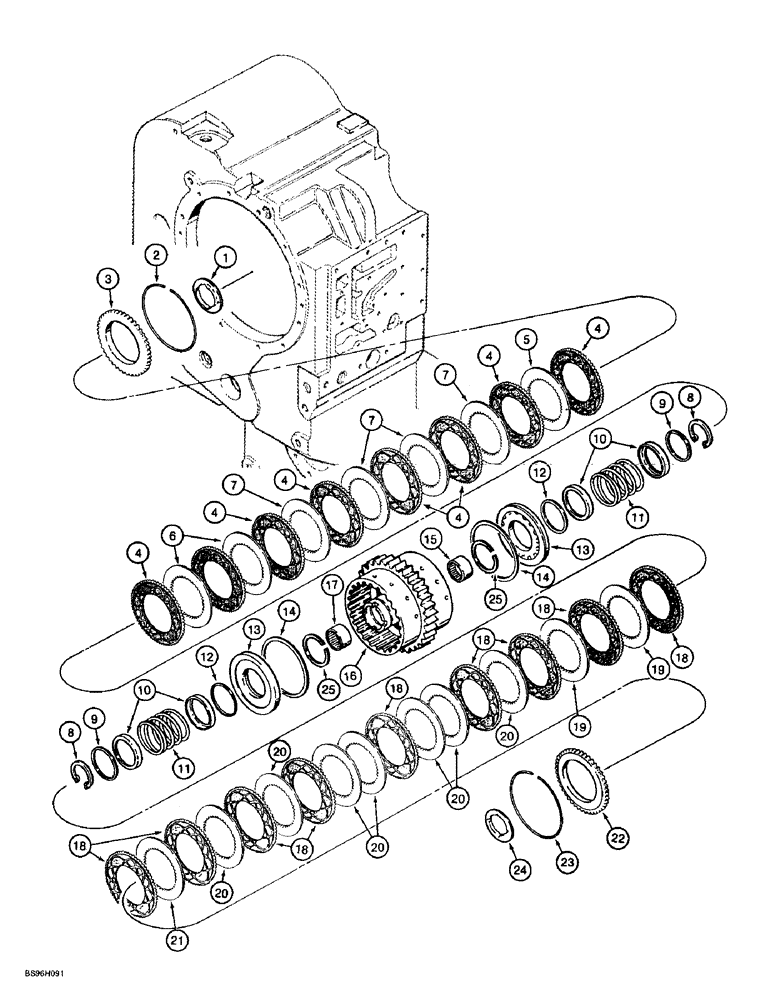

Запчасти Case 721B (6-17C) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, P.I.N. JEE0052701 & AFTER (06) - POWER TRAIN

241953A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 135, see figure 6-4 for parts list information, Includes: Ref. 1 - 26

1шт.

241953A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, P.I.N. JEE0052701 & after, Model Number 4WG200, Stock Number 4644 024 135

1шт.

241953A1C

CORE-TRANSMISSION

Return number

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, forward and low clutches, Includes: Ref. 1 - 26

1шт.

1

252365A1

THRUST PLATE

WASHER - thrust

1шт.

2

E135125

RING, SNAP

RING SNAP RING - retaining, if used

1шт.

2

185413A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.3 mm thick, if used

1шт.

2

185414A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.4 mm thick, if used

1шт.

2

185415A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.2 mm thick, if used

1шт.

2

185416A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.1 mm thick, if used

1шт.

3

E135261

NOTCHED DISK

DISC - clutch, fibre, low gear end

1шт.

4

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

8шт.

5

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel, if used

1шт.

5

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel, if used

1шт.

6

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel

2шт.

7

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel

4шт.

8

E135019

CIRCLIP

RING - snap, external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

SPRING - clutch

2шт.

12

106876A1

SEALING RING,60mm ID x 2.5mm Thk

SEALRING RING - seal

2шт.

13

183944A1

PISTON

PISTON - clutch

2шт.

14

199079A1

SEALING RING

SEALRING RING - seal

2шт.

15

E135045

BEARING, NEEDLE,Needle, 40mm ID x 47mm OD x 26mm W

BEARING - needle

1шт.

16

237365A1

PINION CARRIER

HOUSING - forward and low clutch

1шт.

17

E135043

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 26mm W

BEARING - needle

1шт.

18

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

9шт.

19

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel

2шт.

20

187236A1

DISC

DISC - clutch, 3.0 mm thick, steel

7шт.

21

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel, if used

1шт.

21

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel, if used

1шт.

21

187236A1

DISC

DISC - clutch, 3.0 mm thick, steel, if used

1шт.

22

E135261

NOTCHED DISK

DISC - clutch, fibre, forward gear end

1шт.

23

E135125

RING, SNAP

RING SNAP RING - retaining, if used

1шт.

23

185413A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.3 mm thick, if used

1шт.

23

185414A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.4 mm thick, if used

1шт.

23

185415A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.2 mm thick, if used

1шт.

23

185416A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.1 mm thick, if used

1шт.

24

252366A1

LARGE PLATE

PLATE, LARGE WASHER - thrust

1шт.

25

242953A1

RING, SNAP

RING SNAP RING - snap

1шт.

26

242952A1

RING, SNAP

RING SNAP RING - snap

1шт.
