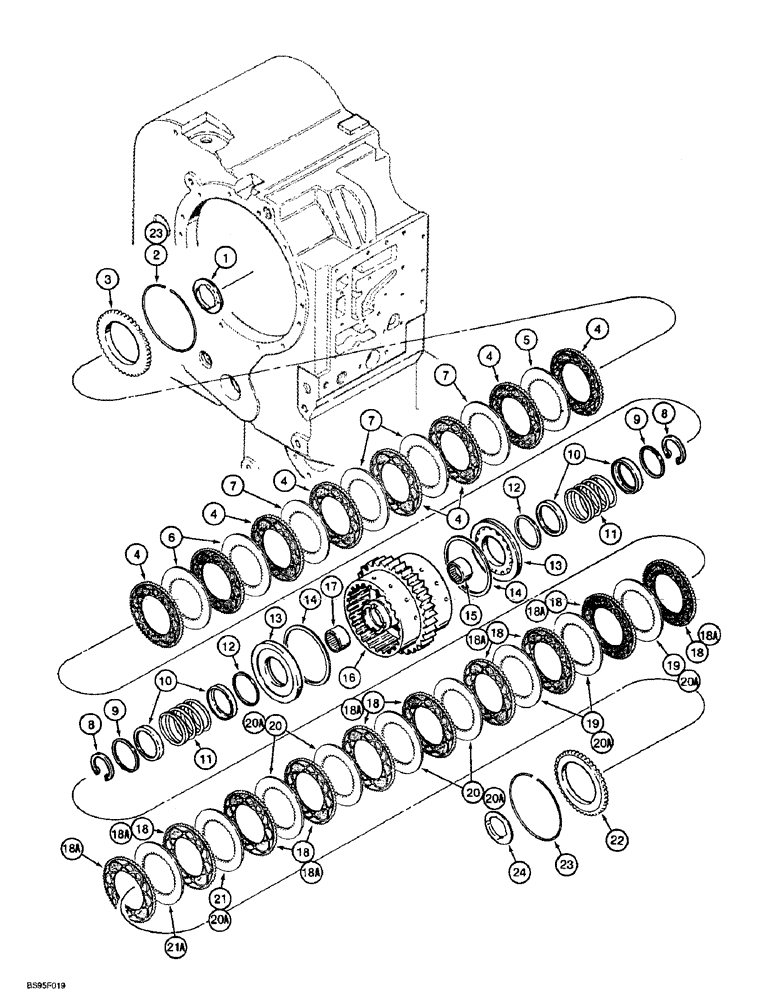

Запчасти Case 721B (6-16) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 004 219, see figure 6-4 for parts list information, Includes: Ref. 1 - 24

1шт.

LR129912

REMAN-TRANSMISSION

721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

LC129912

CORE-TRANSMISSION

Return Number

1шт.

183093A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 100, replaces L129912, see figure 6-4 for parts list information, Includes: Ref. 1 - 24

1шт.

183093A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 100

1шт.

183093A1C

CORE-TRANSMISSION

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, forward and low clutches

1шт.

1

237353A1

THRUST WASHER

WASHER - thrust, replaces E135227 and 183525A1

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

2

E135125

RING, SNAP

RING SNAP RING - retaining, if used

1шт.

The new snap rings that are now used are 242952A1 (larger snap ring) and 242953A1 (smaller snap ring)

1шт.

3

E135261

NOTCHED DISK

DISC - clutch, fibre, low gear end

1шт.

4

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

8шт.

5

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel, if used

1шт.

5

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel, if used

1шт.

6

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel

2шт.

7

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel

4шт.

8

E135019

CIRCLIP

RING - snap, external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

SPRING - clutch

2шт.

12

106876A1

SEALING RING,60mm ID x 2.5mm Thk

SEALRING RING - seal

2шт.

13

183944A1

PISTON

PISTON - clutch, replaces S301950

2шт.

14

199079A1

SEALING RING

SEALRING RING - seal, replaces E135140

2шт.

15

E135045

BEARING, NEEDLE,Needle, 40mm ID x 47mm OD x 26mm W

BEARING - needle

1шт.

16

242097A1

PINION CARRIER

HOUSING - forward and low clutch, used with L129912 transmission, replaces 109368A1 and 183209A1

1шт.

Also order 252365A1 and 252366A1 washer, Ref. 1 and 24 on figure 6-17C, and 242953A1 and 242952A1 rings, Ref. 25 and 26 on figure 6-17C.

1шт.

16

237365A1

PINION CARRIER

HOUSING - forward and low clutch, used with 183093A1 transmission, replaces 183196A1

1шт.

17

E135043

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 26mm W

BEARING - needle

1шт.

18

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre, used with L129912 transmission only

9шт.

18a

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre, used with 183093A1 transmission only

10шт.

19

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel, L129912 transmission only

3шт.

20

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel, L129912 transmission only

4шт.

20a

187236A1

DISC

DISC - clutch, 3.0 mm thick, steel, 183093A1 transmission only

8шт.

21

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel, if used, L129912 or 183093A1 transmission

1шт.

21

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel, if used, L129912 or 183093A1 transmission

1шт.

21a

187236A1

DISC

DISC - clutch, 3.0 mm thick, steel, if used, 183093A1 transmission only

1шт.

22

E1352261

DISC - clutch, fibre, forward gear end

1шт.

23

E135125

RING, SNAP

RING SNAP RING - retaining, if used

1шт.

23

185413A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.3 mm thick, if used

2шт.

23

185414A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.4 mm thick, if used

2шт.

23

185415A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.2 mm thick, if used

2шт.

23

185416A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.1 mm thick, if used

2шт.

24

237353A1

THRUST WASHER

WASHER - thrust, replaces E135218, E135227 and 183525A1

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.
