Запчасти Case 721B (6-14) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES (06) - POWER TRAIN

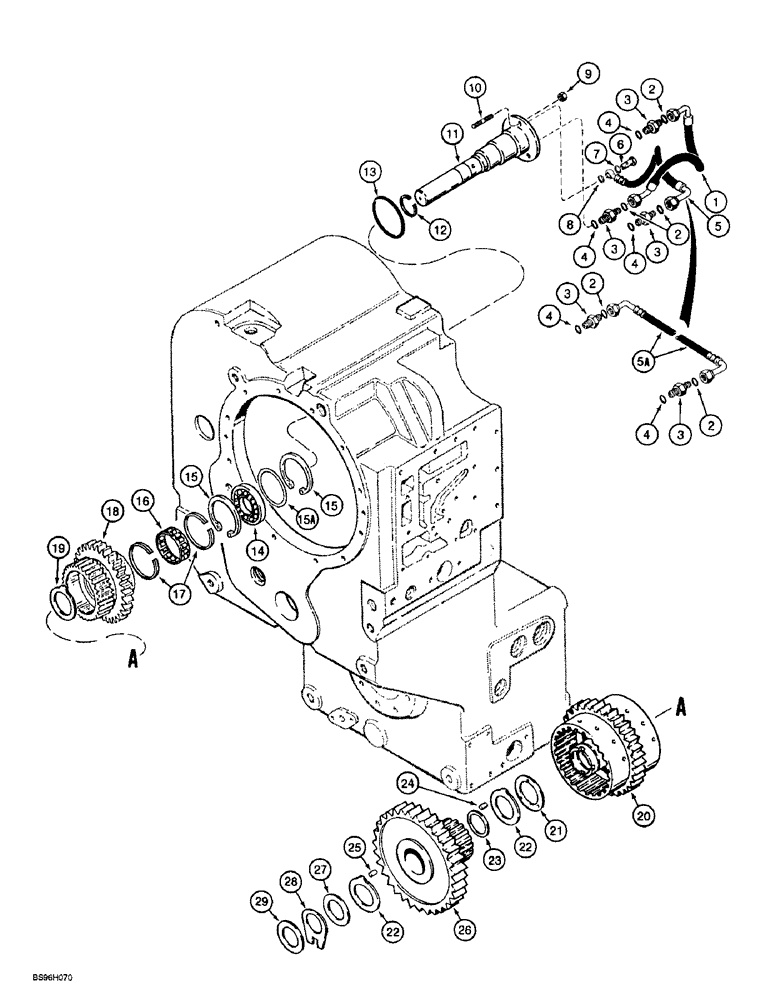

Схема запчастей Case 721B - (6-14) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES (06) - POWER TRAIN
1
19
9
22
17
26
27
4
3
15
28
14
2
15a
5a
29
3
12
2
21
23
8
7
5
13
10
3
4
15
6
20
4
11
2
25
4
2
24
3
3
22
18
4
16

Артикул

Название

Примечание

Количество

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 004 219, see figure 6-4 for parts list information, Includes: Ref. 1 - 29, Serial Range: -JEE0052701

1шт.

LR129912

REMAN-TRANSMISSION

721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

LC129912

CORE-TRANSMISSION

Return Number

1шт.

241953A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 100, replaces L129912, see figure 6-4 for parts list information , Includes: Ref. 1 - 29, Serial Range: -JEE0052701

1шт.

241953A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, P.I.N. JEE0052701 & after, Model Number 4WG200, Stock Number 4644 024 135

1шт.

241953A1C

CORE-TRANSMISSION

Return Number

1шт.

183093A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 135, see figure 6-4 for parts list information, Includes: Ref. 1 - 29, Start Serial: JEE0052701

1шт.

183093A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 100

1шт.

183093A1C

CORE-TRANSMISSION

Return Number

1шт.

1

S300583

HOSE

HOSE - 620 mm (24-7/16 inch) long, L129912 and 183093A1 transmission, forward clutch

2шт.

1

S300584

HOSE

HOSE - 516 mm (20-5/16 inch) long, 241953A1 transmission, forward clutch

1шт.

2

S300587

O-RING,12.4mm ID x 1.78mm Width

O-RING - adapter, hose end

3шт.

3

S301961

ADAPTER

ADAPTER - straight

3шт.

4

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

O-RING - adapter, transmission end

3шт.

5

S301960

HOSE

HOSE - 750 mm (29-1/2 inch) long, low clutch, if used

1шт.

5a

S300583

HOSE

HOSE - 620 mm (24-7/16 inch) long, low clutch, if used

1шт.

6

S301962

BANJO BOLT

BOLT - hex, hollow, used with S301960 hose, Ref. 5

1шт.

7

S301617

O-RING,2mm Thk x 13mm ID

O-RING - bolt, hose end, used with S301960 hose, Ref. 5

1шт.

9

825-1408

NUT,M8, Cl 8

Nut, M8, Cl 8

2шт.

8

S301616

GASKET,2.5mm Thk x 18mm ID

O-RING - bolt, transmission end, used with S301960 hose, Ref. 5

1шт.

10

E135084

STUD

STUD - 8 - 1.25 x 18 mm

2шт.

11

E136113

AXLE

AXLE - forward and low clutches, used with L129912 transmission

1шт.

11

185213A1

SHAFT

AXLE - forward and low clutches, used with 183093A1 and 241953A1 transmissions

1шт.

12

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

RING - piston, axle shaft

3шт.

13

S300460

O-RING,3mm Thk x 49mm ID

O-RING - axle

1шт.

14

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING - ball, replaces L33515 bearing

1шт.

15

K24302

RING, SNAP

RING SNAP RING - snap, internal

2шт.

15a

S301544

SHIM,0.3mm Thk

SHIM, (M60 ID x 75 OD) 0.3mm Thk

1шт.

15a

S301545

SHIM,0.5mm Thk

SHIM, (M60 ID x 75 OD) 0.5mm Thk

1шт.

15a

103598A1

SHIM,60mm ID x 75mm OD x 1.2mm Thk

SHIM - 60 ID x 75 O.D. x 0.9 mm thick

1шт.

15a

S301546

SHIM,1mm Thk

SHIM, (M60 ID x 75 OD) 1mm Thk

1шт.

15a

103597A1

SHIM

SHIM - 60 ID x 75 O.D. x 1.2 mm thick, no longer available, order S301546

1шт.

15a

S301547

SHIM,1.5mm Thk

SHIM, (M60 ID x 75 OD), No longer available, Order S301548 1.5mm Thk

1шт.

15a

S301548

SHIM,1.6mm Thk

SHIM, (M60 ID x 75 OD) 1.6mm Thk

1шт.

16

E135148

ROLLER CAGE BEARING,45mm ID x 75mm OD x 28mm W

BEARING - roller

1шт.

17

E135002

PISTON RING,69.6mm ID x 75.8mm OD x 3mm Thk

RING - retaining, internal, bearing

2шт.

18

106877A1

PINION

PINION gear, low

1шт.

19

183516A1

THRUST WASHER,46.5mm ID x 65mm OD x 2.1mm Thk

WASHER - thrust, tabbed, replaces E135117

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

20

NSS

NOT SOLD SEPARAT

PACK - clutch, low and forward, see figure 6-16 for components

1шт.

21

183547A1

THRUST WASHER,35.3mm ID x 65.4mm OD x 1.5mm Thk

WASHER - thrust, replaces E135123

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

22

E135267

WASHER, THRUST

WASHER - thrust, tabbed

2шт.

23

E135268

WASHER

WASHER - flat, 48 x 54.7 x 0.8 mm

1шт.

E136114

ROLLER BEARING

KIT - bearing, replaces S300462, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

NEEDLE - bearing

14шт.

25

NSS

NOT SOLD SEPARAT

NEEDLE - bearing

14шт.

26

183667A1

GEAR

GEAR - used with L129912 transmission, replaces E135269

1шт.

26

187235A1

PINION

GEAR - used with 183093A1 transmission

1шт.

26

237374A1

PINION

GEAR - used with 241953A1 transmission

1шт.

27

183515A1

THRUST WASHER,35.3mm ID x 70.5mm OD x 1.5mm Thk

WASHER - thrust, 35 x 70 x 1.5 mm, replaces E135120

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

28

S301949

WASHER

WASHER - thrust, notched, replaces E135203

1шт.

29

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

29

E135098

SHIM,0.4mm Thk

SHIM, (35.1 ID x 70 OD) 0.4mm Thk

1шт.

29

E135099

SHIM,0.6mm Thk

SHIM, (35.1 ID x 70 OD) 0.6mm Thk

1шт.

29

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

SHIM, (35.1 ID x 70 OD) 0.8mm Thk

1шт.

29

E135101

SHIM,1.0mm Thk

SHIM, (35.1 ID x 70 OD) 1.0mm Thk

1шт.

29

E135102

SHIM,1.2mm Thk

SHIM, (35.1 ID x 70 OD) 1.2mm Thk

1шт.

29

199081A1

SHIM

SHIM - 1.4 mm thick, replaces E135103

1шт.

29

199082A1

SHIM,35.1mm ID x 70mm OD x 1.6mm Thk

SHIM - 1.6 mm thick, replaces E135104

1шт.

29

199083A1

SHIM

SHIM - 1.8 mm thick, replaces E135105

1шт.

29

199084A1

SHIM,35.1mm ID x 70mm OD x 2mm Thk

SHIM - 2.0 mm thick, replaces E135106

1шт.

29

199085A1

SHIM,35.1mm ID x 70mm OD x 2.2mm Thk

SHIM - 2.2 mm thick, replaces E135107

1шт.

29

199086A1

SHIM

SHIM - 2.4 mm thick, replaces E135108

1шт.

29

199087A1

SHIM

SHIM - 2.6 mm thick, replaces E135109

1шт.

29

199088A1

SHIM,2.8mm Thk

SHIM - 2.8 mm thick, replaces E135110

1шт.

Выбрано товаров: 67
