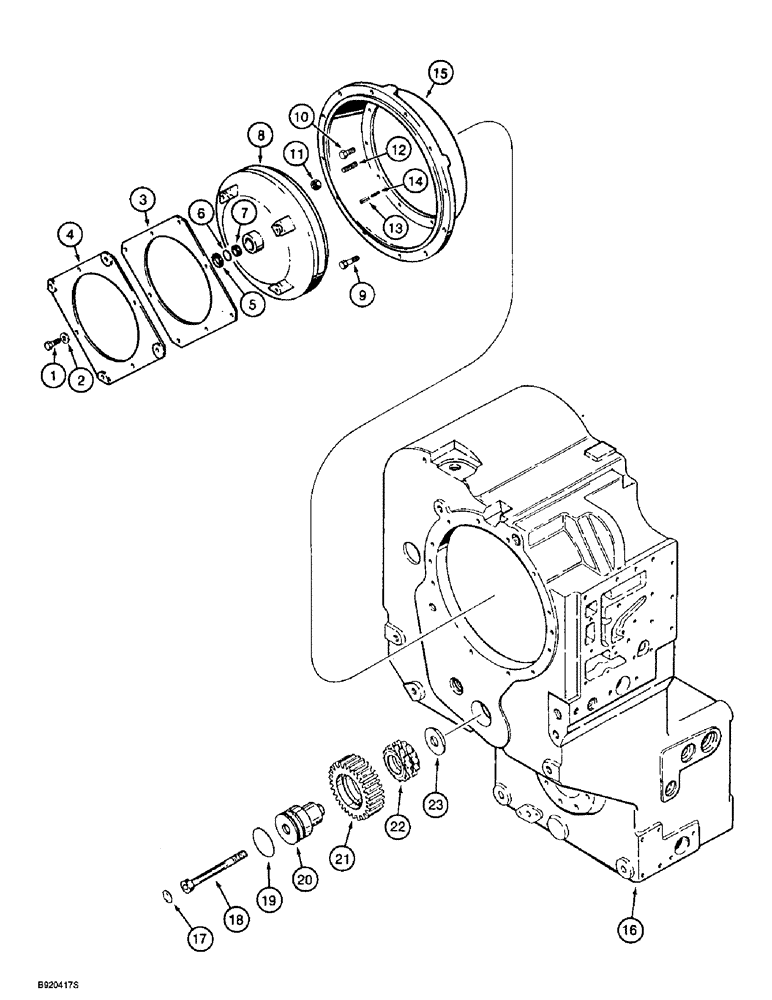

Запчасти Case 721B (6-10) - TRANSMISSION ASSEMBLY, IDLER GEAR, CONVERTER AND COVER (06) - POWER TRAIN

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 004 219, see figure 6-4 for parts list information, Includes: Ref. 1 - 23, Serial Range: -JEE0052701

1шт.

LR129912

REMAN-TRANSMISSION

721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

LC129912

CORE-TRANSMISSION

Return Number

1шт.

183093A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 100, replaces L129912, see figure 6-4 for parts list information, Includes: Ref. 1 - 23, Serial Range: -JEE0052701

1шт.

183093A1R

REMAN-TRANSMISSION

Remanufactured Transmission721B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 100

1шт.

183093A1C

CORE-TRANSMISSION

Return Number

1шт.

241953A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 135, see figure 6-4 for parts list information, Includes: Ref. 1 - 23, Start Serial: JEE0052701

1шт.

241953A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, P.I.N. JEE0052701 & after, Model Number 4WG200, Stock Number 4644 024 135

1шт.

241953A1C

CORE-TRANSMISSION

Return number

1шт.

1

111981A1

BOLT

BOLT - hex, special

4шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 20 x 2 mm

4шт.

3

E135238

PLATE

PLATE - flex, inner

1шт.

4

S301944

PLATE

PLATE - flex, outer

1шт.

5

103-21106

SNAP RING,1.06", Int, #106

Ring, Snap, , Converter 1.06", Int, #106

1шт.

6

E135035

O-RING,25 mm ID

O-RING - x 3 25 mm ID

1шт.

7

E135167

WASHER

WASHER - sealing

1шт.

8

107780A1

CONVERTER

CONVERTER - transmission

1шт.

8

107780A1R

REMAN-TORQUE CONVERT

ER Remanufactured. N.A. Only

1шт.

8

107780A1C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number, Converter - transmission, N.A. Only

1шт.

9

826-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

BOLT - hex, 10 - 1.5 x 50 mm, class 10.9

2шт.

10

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 35, 10.9, Full Thd

12шт.

11

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

1шт.

12

E135083

STUD

STUD - 10 x 1.5 x 30 mm

1шт.

13

E135027

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll, 10 OD x 28 mm

2шт.

14

A52091

AXLE PIN

PIN - roll, 6 x 30 mm, replaces E135025 pin

2шт.

15

E135283

COVER

HOUSING - converter

1шт.

16

106839A1

HOUSING

HOUSING - transmission

1шт.

17

106874A1

BLOCK

PLUG - expansion, 25 mm

1шт.

18

106872A1

HEX SOC SCREW

BOLT - hex socket, 12 - 1.75 x 100 mm, class 10.9

1шт.

19

S300455

O-RING,3mm Thk x 57mm ID

O-RING - stub axle

1шт.

20

106869A1

AXLE

AXLE - stub, idler gear

1шт.

21

106871A1

PINION

GEAR - idler, L129912 transmission

1шт.

21

187233A1

PINION

GEAR - idler, 1830393A1 and 241953A1 transmission

1шт.

22

S300458

SET

KIT - needle bearing

1шт.

23

106870A1

THRUST WASHER

WASHER - thrust

1шт.
