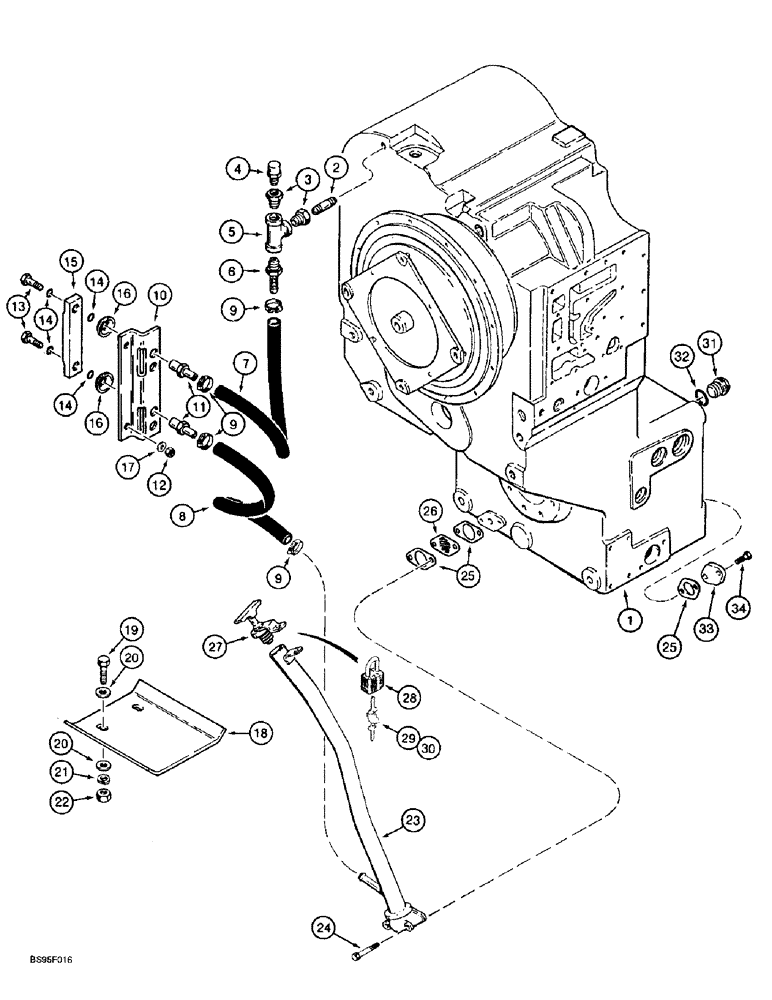

Запчасти Case 721B (6-06) - TRANSMISSION FILL TUBE MOUNTING AND SIGHT GAUGE (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see parts list on figure 6-4

1шт.

2

221-103

FITTING

NIPPLE - straight, 1/8 PT x 1 inch

1шт.

3

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- pipe, 3/8 male x 1/8 inch female

2шт.

4

N14704

BREATHER

- sight gauge, included with transmission

1шт.

5

221-423

TEE,3/8" NPT

- pipe, 3/8 inch, if used

1шт.

6

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

ADAPTER - straight, 1/2 barb end x 3/8 inch PT

1шт.

7

L125876

HOSE,12.7 mm ID x 880.00 mm, SAE 100R6

Sight Gauge, Upper 12.7 mm ID x 880.00 mm, SAE 100R6

1шт.

8

L60364

HOSE

- 305 mm (12 inch) long, cut from L56190 hose, sight gauge, lower

1шт.

Order L22075 trim 373 mm (14.7 inch) long, L71252 trim 508 mm (20 inch) long, L57344 trim 864 mm (34 inch) long, L56191 trim 940 mm (37 inch) long, L100109 trim 940 mm (37 inch) long, or L56190 trim 2286 mm (90 inch) long and cut to length.

1шт.

9

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

10

L125837

SUPPORT

BRACKET - mounting, sight gauge

1шт.

11

L125836

FITTING

ADAPTER - straight, special

2шт.

12

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

L116247

GAUGE

ASSEMBLY - sight, transmission oil, Includes: Ref. 13 - 15

1шт.

13

N13213

BOLT

BOLT - special, sight gauge, no longer available, order L116247

2шт.

14

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge -112, Cl 7, .487" ID x .103" Thk

4шт.

15

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly

1шт.

16

131-141

PUSH-ON NUT,.74", Push-on

2шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

18

L129940

GUARD ASSY.

GUARD - transmission fill tube

1шт.

19

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

2шт.

20

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

23

L129957

TUBE,31.75 mm OD

- fill, transmission

1шт.

24

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

If used Hex, M8 x 50, 10.9

2шт.

25

S300507

GASKET

- cover, L129912 and 183093A1 transmission, no longer available, order 237302A1, Serial Range: -JEE0052701

3шт.

25

237302A1

GASKET

- cover, 241953A1 transmission, Start Serial: JEE0052701

3шт.

26

E135229

FILTER SCREEN

SCREEN - fill tube

1шт.

27

L126498

PLUG

CAP - fill tube

1шт.

28

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 29 and 30

1шт.

29

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

1шт.

30

R29555

KEY

0 for Master padlock only, if used

1шт.

31

E135081

PLUG

- hex, included with transmission, L129912 transmission

1-2шт.

31

E135082

PLUG

- hex, special, included with transmission, 183093A1 and 241953A1 transmissions

1шт.

32

3133948R1

O-RING,2mm Thk x 23mm ID

- plug, included with transmission, used with E135081 plug

2шт.

32

A52368

SEAL

O-RING - plug, included with transmission, used with E135082 plug

1шт.

33

S300508

COVER

PLATE - cover

1шт.

34

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

2шт.
