Запчасти Case 721B (1-14) - PICTORIAL INDEX, MAIN BRAKE HYDRAULIC CIRCUIT, BRAKE VALVE SUPPLY & RETURN (00) - PICTORIAL INDEX

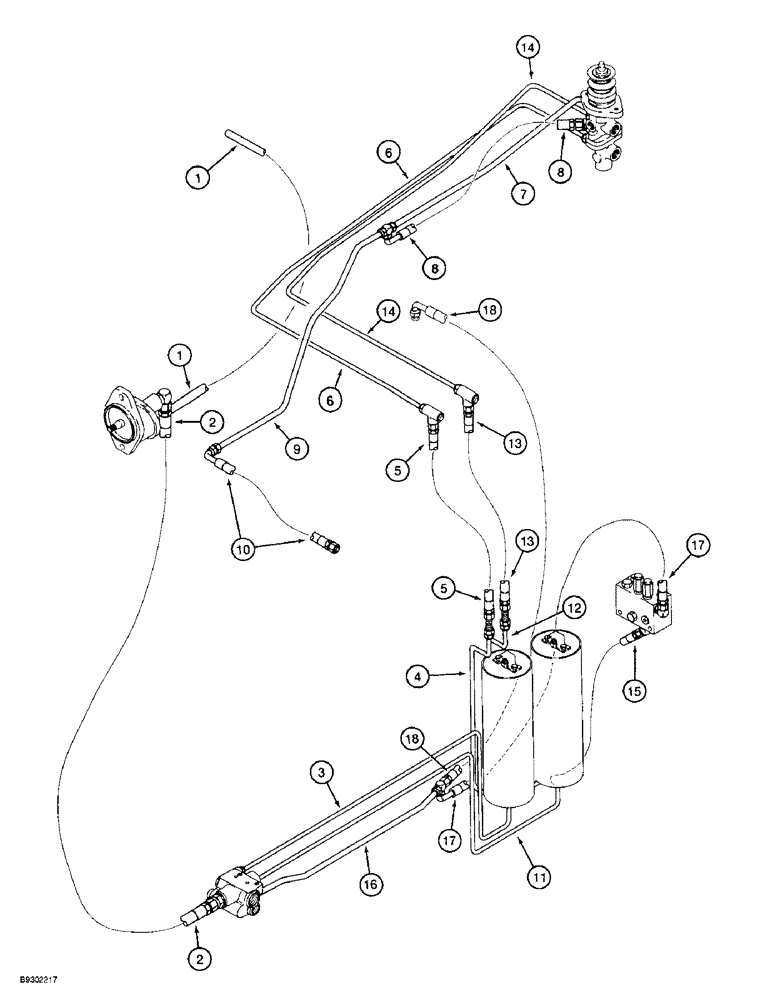

Схема запчастей Case 721B - (1-14) - PICTORIAL INDEX, MAIN BRAKE HYDRAULIC CIRCUIT, BRAKE VALVE SUPPLY & RETURN (00) - PICTORIAL INDEX
2
4
13
3
6
9
2
5
16
7
14
8
1
14
15
12
18
11
18
10
5
1
6
17
13
8
17

Артикул

Название

Примечание

Количество

1

Hose, at suction tube on hydraulic 7-9

1шт.

reservoir to brake pump

1шт.

2

Hose, brake pump to accumulator 7-9

1шт.

valve

1шт.

3

Tube, accumulator valve upper port 7-11

1шт.

to rear accumulator

1шт.

4

Tube, rear accumulator to hose at 7-15

1шт.

tee to tube to brake valve lower

1шт.

pressure port

1шт.

5

Hose, tee at tube to brake valve 7-15

1шт.

lower pressure port from tube at

1шт.

rear accumulator

1шт.

6

Tube, tee at hose from rear 7-15

1шт.

accumulator to brake valve lower

1шт.

pressure port

1шт.

7

Front tube, brake valve upper tank 7-15

1шт.

port to tee at rear, Start Serial: tube

1шт.

reservoir

1шт.

8

Hose, brake valve lower tank port 7-15

1шт.

to tee at front and rear, Start Serial: tubes

1шт.

reservoir

1шт.

9

Rear tube, tee at front tube and 7-15

1шт.

hose from brake valve to hose at

1шт.

reservoir

1шт.

10

Hose, rear tube from brake, Serial Range: valve-7-15

1шт.

reservoir

1шт.

11

Tube, accumulator valve lower port 7-11

1шт.

to front accumulator

1шт.

12

Tube, front accumulator to, Serial Range: hose-7-15

1шт.

brake valve upper pressure port

1шт.

13

Hose, tube to accumulator to tee at 7-15

1шт.

tube to brake valve upper pressure

1шт.

port

1шт.

14

Tube, tee at hose from front 7-15

1шт.

accumulator to brake valve upper

1шт.

pressure port

1шт.

15

Hose, tee at front, Serial Range: accumulator-7-11

1шт.

pressure reducing valve

1шт.

16

Tube, accumulator valve to tee at 7-13

1шт.

hoses to oil filters and pressure

1шт.

reducing valve

1шт.

17

Hose, tee at tube from accumulator 7-13

1шт.

valve to pressure reducing valve

1шт.

18

Hose, tee at tube from accumulator 7-13

1шт.

valve to oil filters

1шт.

Выбрано товаров: 45
