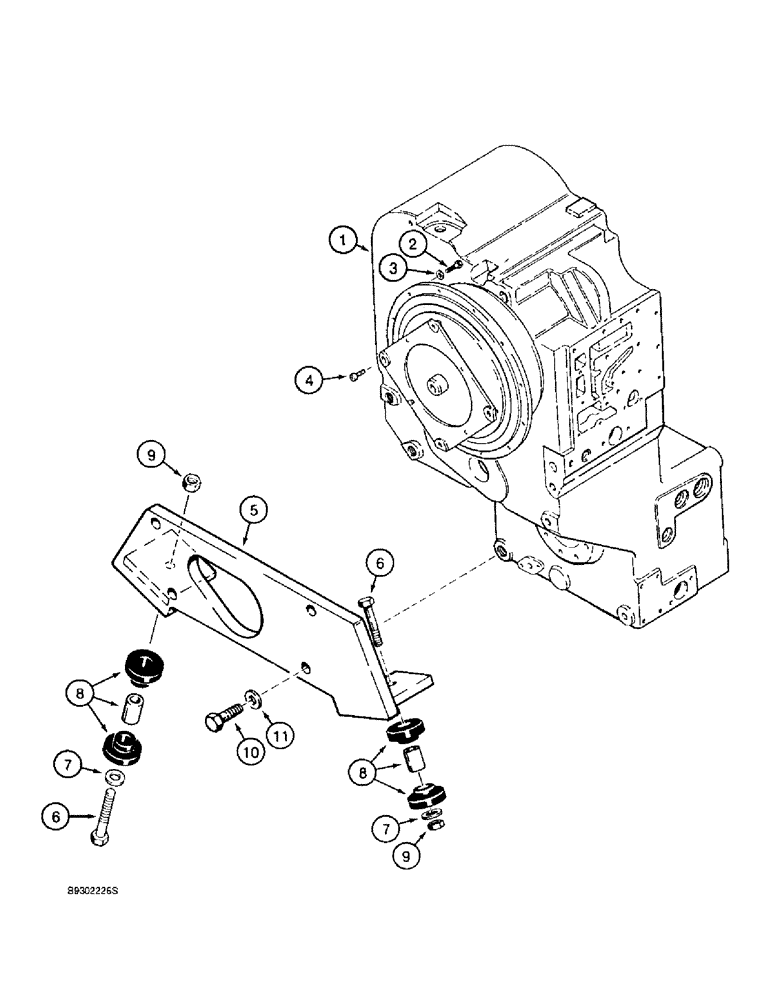

Запчасти Case 721B (6-04) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 004 219, includes Ref. 1 and 2 on figure 6-2, Ref. 4, 31 and 32 on page 6-6, and all Ref. on figures 6-8 - 6-32, no longer available, order 183093A1 transmission for service, Serial Range: -JEE0053701

1шт.

1

LR129912

REMAN-TRANSMISSION

721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

1

LC129912

CORE-TRANSMISSION

Return Number

1шт.

1

183093A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 100, replaces L129912, includes Ref. 1 and 2 on figure 6-2, Ref. 4, 31 and 32 on figure 6-6, and all Ref. on figures 6-8 - 6-32, Serial Range: -JEE0052701

1шт.

1

183093A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 100

1шт.

1

183093A1C

CORE-TRANSMISSION

Return Number

1шт.

1

241953A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 135, includes Ref. 1 and 2 on figure 6-2, Ref. 4, 31 and 32 on figure 6-6, and all Ref. on figures 6-8 - 6-33C, Start Serial: JEE0052701

1шт.

1

241953A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 721B, P.I.N. JEE0052701 & after, Model Number 4WG200, Stock Number 4644 024 135

1шт.

1

241953A1C

CORE-TRANSMISSION

Return Number

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Bolt, Hex, M10 x 40, 8.8, Full Thd

12шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER - flat, 13/32 x 13/16 x 3/32", hardened

12шт.

4

L125431

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 8.8

SCREW, hex socket, special, 10 - 1.5 x 35 mm

4шт.

5

L127262

SUPPORT

BRACKET - transmission mounting

1шт.

6

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

BOLT, Hex, 3/4"-10 x 4 1/2", G8

2шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

WASHER - flat, 25/32 x 1-3/8 x 1/8 inch, hardened

2шт.

8

L111929

SHOCK ABSORBER

MOUNT - three piece

2шт.

9

131-450

NUT,3/4"-10

NUT - heavy hex, self-locking, 3/4 inch NC

2шт.

10

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

BOLT - hex, 20 - 2.5 x 55 mm, class 10.9

4шт.

11

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

WASHER, , Flat, Replaces L79179 13/16" x 1 1/2" x .134", HDN

4шт.
