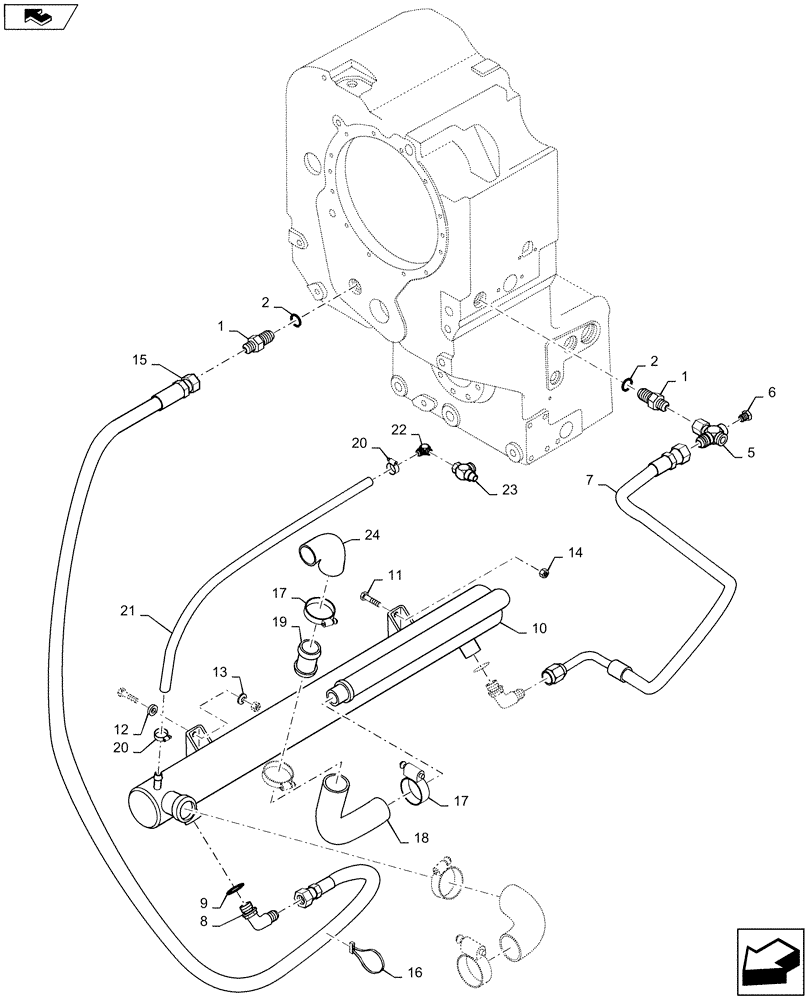

Запчасти Case 721B (6-02) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

106867A1

ADAPTER

- straight, included with transmission

2шт.

2

S300450

O-RING,23.3mm ID x 2.4mm Width

- adapter, included with transmission

2шт.

5

L125441

FITTING

CROSS - special

1шт.

6

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

Replaces 221-1664 Hex Hd, 1/2"-14 NPTF

1шт.

7

L128119

HOSE ASSY.,25.4mm ID x 870mm L

HOSE - 870 mm (34-1/4 inch) long, to IN port of transmission oil cooler

1шт.

8

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj. O-ring boss, Incl. Ref. 9

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

10

L128093

RADIATOR

COOLER - transmission oil

1шт.

11

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

12

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

13

R52337

WASHER

- Belleville, used at the two rear oil cooler mounting points

2шт.

14

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

15

L128010

HOSE,25.4mm ID x 1180mm L, SAE 100R1

- 1180 mm (46-1/2 inch) long, to OUT port of transmission oil cooler

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

3шт.

18

L127974

RADIATOR HOSE,50.00 mm ID x 200.00 mm, SAE 20R4 Class C or D-1

- Formed, Transmission oil cooler to engine 50.00 mm ID x 200.00 mm, SAE 20R4 Class C or D-1

1шт.

19

L117015

TUBE,50.8 mm OD x 77 mm L

- from hose at transmission oil cooler to engine

1шт.

20

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

2шт.

21

31-1067

HOSE,0.63" ID x 36.00"

- 914 mm (36 inch) long, cut from 97252CX bulk hose, see below 0.63" ID x 36.00"

1шт.

22

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 45 degree, 5/8 stem end x 1/2 inch PT

1шт.

23

221-1693

TEE,Street, 1/2" NPT

- street, 1/2 inch PT, at engine

1шт.

97252CX

HOSE

- bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long, Serial Range: cut-length

1шт.

24

J920762

ELBOW

Elbow

1шт.
