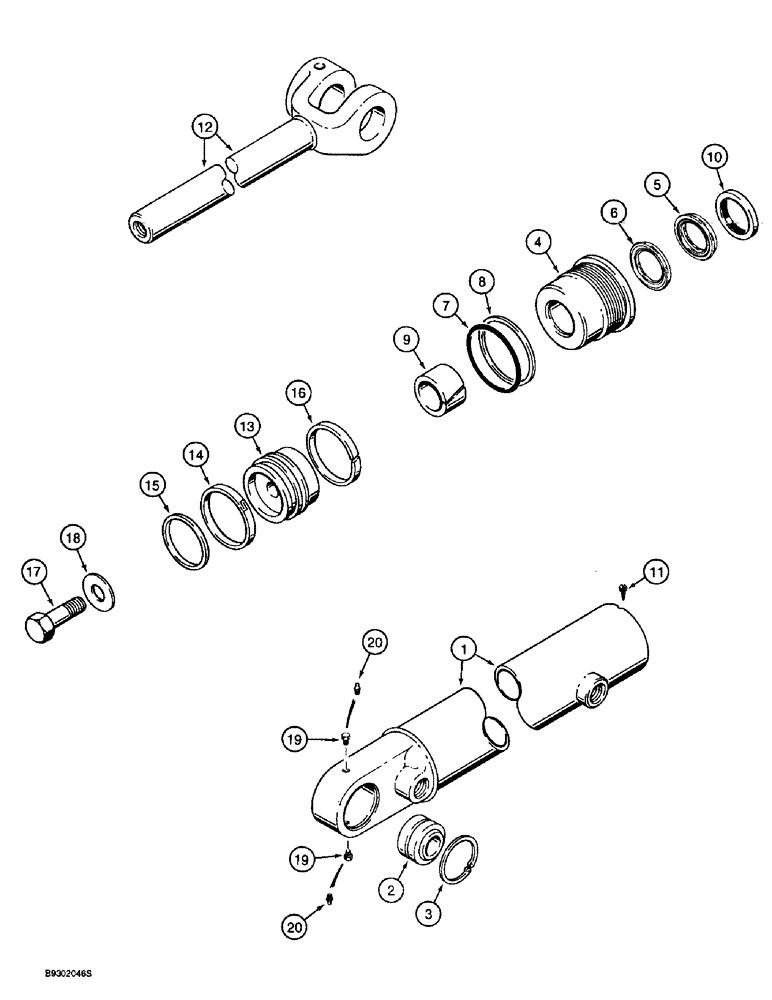

Запчасти Case 721B (5-20) - STEERING CYLINDER (05) - STEERING

1976862C1

STEERING CYLINDER

CYLINDER ASSEMBLY - 44 (1-3/4) ID x 435 mm (17-1/8 inch) stroke, Includes: Ref. 1 - 19

2шт.

84311413R

REMAN-HYD CYLINDER

721B (3/93-12/98), Reman for New P/N 1976862C1

2шт.

84311413C

CORE-HYD CYLINDER

Return Number

1шт.

1

G110477

TUBE,76.1 mm ID x 674.2 mm L

- cylinder, Includes: Ref. 2 and 3

1шт.

2

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

- self-aligning

1шт.

3

102-23218

SNAP RING,#218, 2.321", Int, Spiral

RING - internal spiral

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

297281A1

GLAND

Cylinder, Replaces G109884

1шт.

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Order 1543267C1 seal kit, Shown below

1шт.

5

1542999C1

SEAL

- rod, NSS, order 1543267C1 seal kit, shown below

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

6

1542998C1

SEALING RING

- buffer, NSS, order 1543267C1 seal kit, shown below

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

7

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

8

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - dust, outer

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 x 3/8 "

1шт.

12

1976863C1

PISTON ROD

44.5 mm (1-3/4 in)

1шт.

13

G107277

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special, hardened

1шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT, replace with 219-1 fitting, Ref. 20

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, extra short, not included with cylinder

2шт.

1543267C1

SEAL KIT

KIT, SEALS, Incl Ref 5 - 10 and 14 - 16 and an instruction sheet

1шт.
