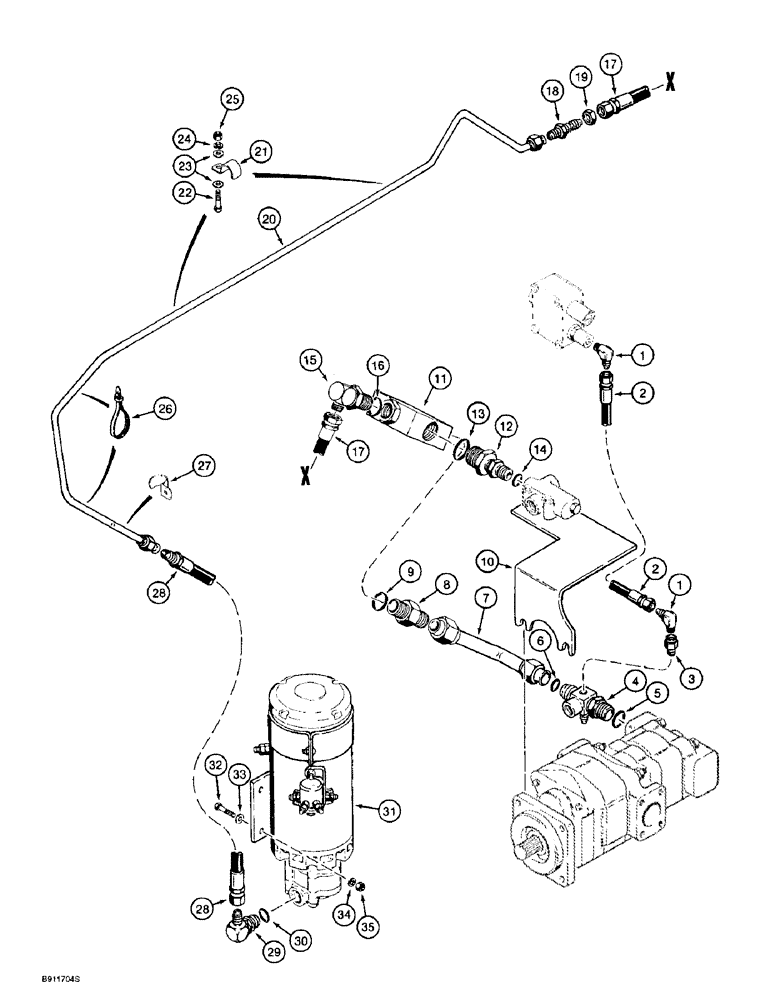

Запчасти Case 721B (5-12) - AUXILIARY STEERING HYDRAULIC CIRCUIT, ELBOW AT AUX. STEERING PRESSURE SWITCH TO AUX. STEERING PUMP (05) - STEERING

1

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 7/16-20 flare x 1/4 inch PT

2шт.

2

101501A1

HOSE ASSY.

HOSE - 1170 mm (46-1/16 inch) long, pressure switch to hydraulic pump, see figure 4-36 for auxiliary steering electrical circuit

1шт.

3

L129369

CONNECTOR, ELEC

SNUBBER - pressure reducing, if used

1шт.

4

L130032

FITTING

MANIFOLD - hydraulic steering pump, replaces L127386 manifold, Ref. 17 on figure 5-6, on models with auxiliary steering, Includes: Ref. 5 and 6

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

7

L128504

TUBE,38.09 mm OD

- flow control valve to hydraulic steering pump

1шт.

8

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss, Incl. Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

L128511

SUPPORT

BRACKET - mounting, flow control valve, use hydraulic steering pump mounting hardware, see figure 8-4, Ref. 11 and 12

1шт.

11

L128557

VALVE

ASSEMBLY - shuttle, internal components not serviced separately

1шт.

12

L60225

UNION

ADAPTER - straight, special, shuttle valve to flow control valve, see figure 5-6 for flow control valve mounting and figure 5-18 for assembly, Includes: Ref. 13 and 14

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj. O-ring boss, Includes: Ref. 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

W11468

HOSE

- 737 mm (29 inch) long

1шт.

18

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

1шт.

19

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

20

L129952

TUBE,12.7 mm OD

- pressure, to auxiliary steering pump, see figure 5-14, Ref. 13, for front mounting bracket

1шт.

21

S79585

CLAMP

- upper tube, see figure 5-14 for lower tube clamp

2шт.

22

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Pressure tube, See figure 5-15, Ref. 7 - 9, For spacer and mounting hardware 1/2", Insul, 1/2" Bolt

1шт.

28

L129993

HOSE ASSY.

HOSE - 410 mm (16-1/8 inch) long, pressure tube to auxiliary steering pump

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, used with L116118 pump and motor assembly, Includes: Ref. 30, Serial Range: -JEE0053038

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj. O-ring boss, used with 197540A1 pump and motor assembly, Includes: Ref. 30, Start Serial: JEE0053038

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR ASSEMBLY - auxiliary steering, parts list figure 5-16, Serial Range: -JEE005038

1шт.

31

197540A1

PUMP, HYDRAULIC

PUMP AND MOTOR ASSEMBLY - auxiliary steering, parts list figure 5-16, Start Serial: JEE0053038

1шт.

32

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

33

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

34

492-11038

LOCK WASHER,3/8"

4шт.

35

425-106

NUT,3/8"-16, Cl 5

4шт.

36

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Not shown M10 x 1.5, Cl 8

5шт.

37

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Not shown M10 x 21.5 x 2.5, HT

3шт.
