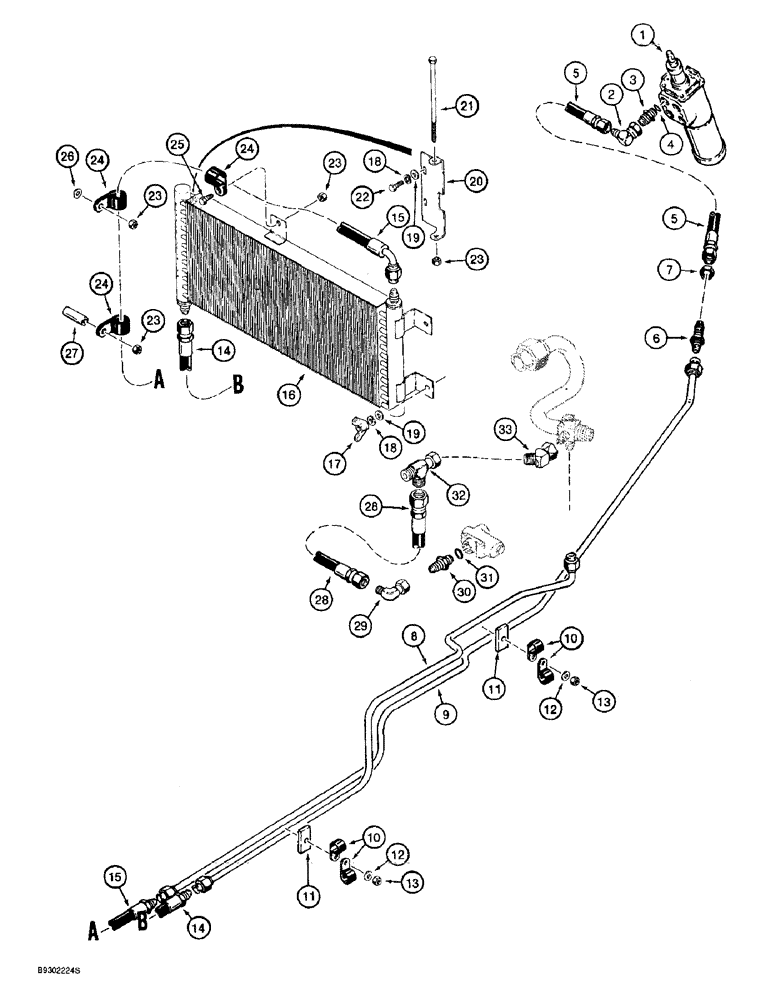

Запчасти Case 721B (5-10) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering, for correct assembly and components, see figures 5-4 - 5-5C

1шт.

2

218-5378

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 7/8-14 flare x 3/4-16 inch swivel

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

L124237

HOSE

- 600 mm (23-5/8 inch) long, return, at control valve

1шт.

6

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - straight, 1-1/16-12 inch flare x bulkhead flare

1шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

8

L129938

TUBE

TUBE - hose at oil cooler to, Serial Range: tube-filter

1шт.

9

114381A1

TUBE,19.04 mm OD, 2004, 550 mm Length

- return, hose at steering control valve to hose at oil cooler, hose at steering control valve to hose at oil cooler

1шт.

10

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, Hydraulic oil tubes to rear frame 3/4", Insul, 1/2" Bolt

4шт.

11

L119350

SPACER

- clamp

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

13

231-1406

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

14

L128077

HOSE ASSY.

HOSE - 1000 mm (39-3/8 inch) long, supply, at oil cooler

1шт.

15

L128078

HOSE ASSY.

HOSE - 2142 mm ( 84-5/16 inch) long, return, at oil cooler

1шт.

16

L127883

OIL COOLER

COOLER - oil, hydraulic

1шт.

17

L128214

THUMB SCREW

SCREW - thumb, special, 3/8 NC x 1 inch

2шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

20

L128083

SUPPORT

BRACKET - hinge, oil cooler

1шт.

21

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

- hex, 3/8 NC x 10 inch, grade 2

1шт.

22

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

24

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

- P-type, 1-1/16 inch ID, hose, replaces R56681

3шт.

25

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

26

S95569

WASHER

- flat, special, 1/2 inch

1шт.

27

L59005

SPACER

- lower clamp

1шт.

28

L127370

HOSE

- 550 mm (21-11/16 inch) long, filter tube to tube at flow control valve

1шт.

29

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

30

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x adj. straight thread

1шт.

33

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree, 7/8-14 inch flare x swivel

1шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Not shown M10 x 1.5, Cl 8

5шт.

35

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Not shown M10 x 21.5 x 2.5, HT

3шт.
