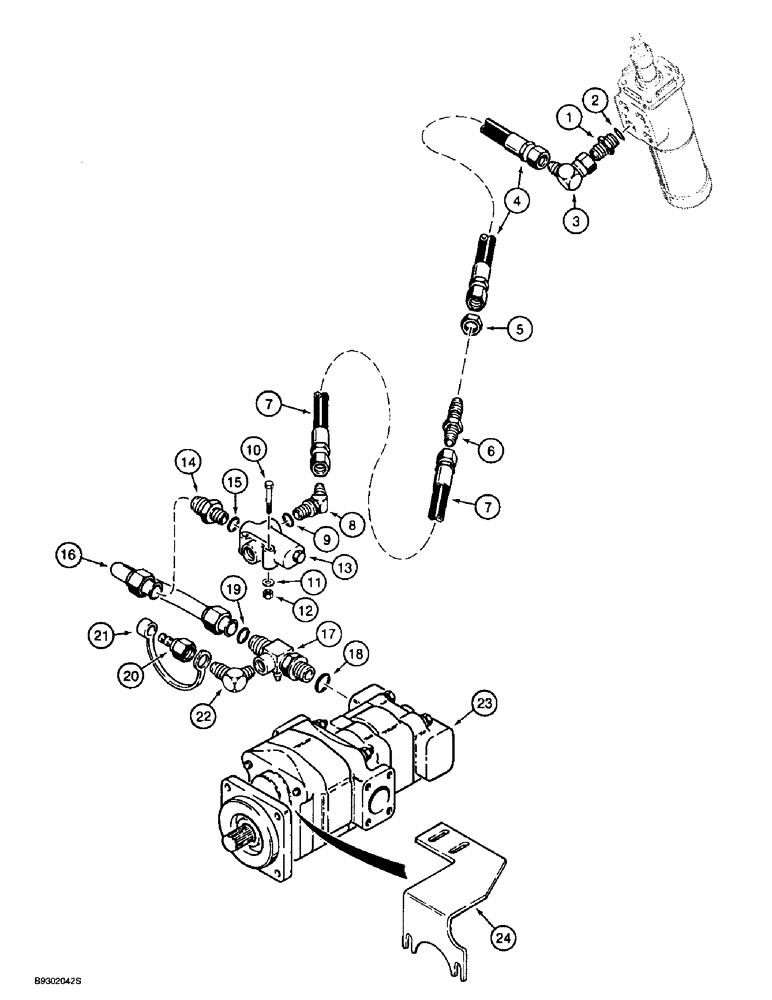

Запчасти Case 721B (5-06) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO PUMP (05) - STEERING

1

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

4

L124238

HOSE

- 600 mm (23-5/8 inch) long, hose at flow control valve to steering control valve

1шт.

5

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER - straight, 7/8-14 inch flare x bulkhead flare

1шт.

7

L129943

HOSE

- 520 mm (20-1/2 inch) long, flow control valve to hose at steering control valve

1шт.

8

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch, grade 8

2шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

13

L48888

FLOW DIVIDER

VALVE ASSEMBLY - flow control, parts list figure 5-18

1шт.

14

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-5/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

L127308

PIPE,25.4 mm OD x 211, 128 mm L

TUBE - flow control valve to steering pump

1шт.

17

L127386

MANIFOLD

- steering pump, see figure 8-78 for hydraulic circuit from pressure reducing valve, Includes: Ref. 18 and 19

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect

1шт.

21

H434163

DUST CAP

CAP - dust

1шт.

22

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 1-1/16-12 flare x 3/4 inch PT

1шт.

23

L127270

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic equipment and steering, parts list figure 8-28

1шт.

L127270R

REMAN-HYD PUMP

721B (3/93-12/98)

1шт.

L127270C

CORE-HYDRAULIC PUMP

Return Number

1шт.

24

L128818

BRACKET

- mounting, flow control valve, use hydraulic steering pump mounting hardware, see figure 8-4, Ref. 11 and 12

1шт.
