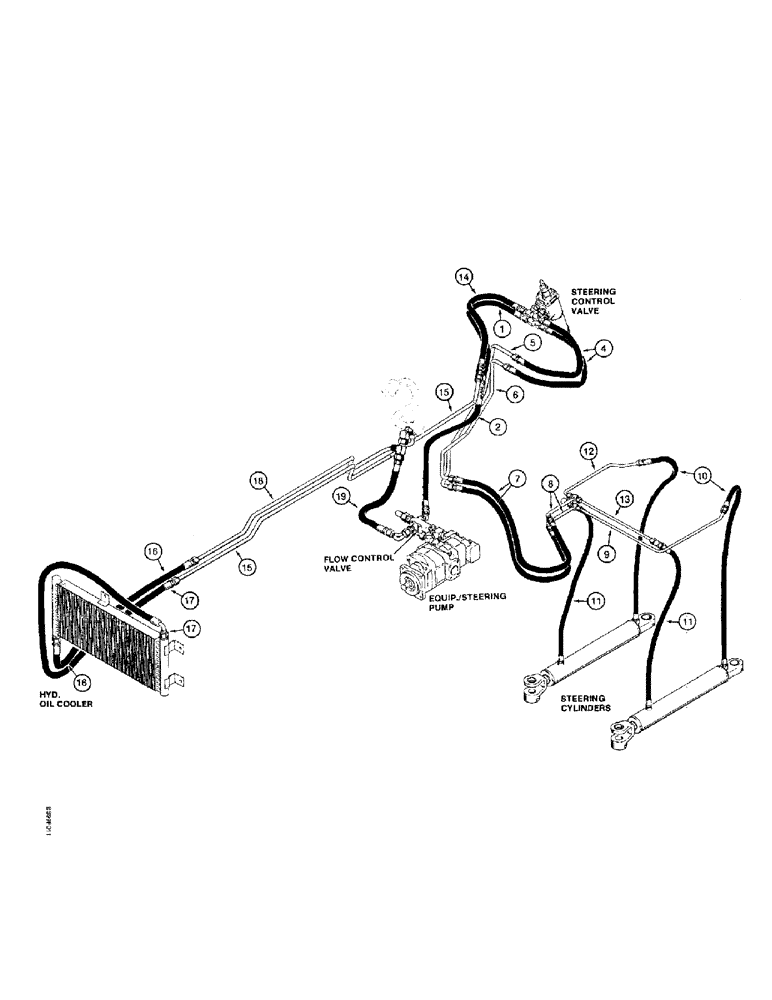

Запчасти Case 721B (1-12) - PICTORIAL INDEX, STEERING AND COOLING HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Steering supply hose, steering 5-7

1шт.

control valve to hose at flow

1шт.

control valve

1шт.

2

Steering supply hose, hose at 5-7

1шт.

steering control, Serial Range: valve-flow

1шт.

control valve

1шт.

3

Tube, flow control valve to pump 5-7

1шт.

4

Hose, from right-hand upper and 5-9

1шт.

lower ports on control, Start Serial: valve

1шт.

tubes

1шт.

5

Left-hand steering tube, from hose 5-9

1шт.

at right-hand upper port on control

1шт.

, Serial Range: valve-hose

1шт.

6

Right-hand steering tube, from hose 5-9

1шт.

at right-hand lower port on control

1шт.

, Serial Range: valve-hose

1шт.

7

Hose, from right and left-hand 5-9

1шт.

steering tubes to tubes with tees

1шт.

8

Tube with tee, from hoses to tubes 5-9

1шт.

leading to steering cylinders

1шт.

9

Steering tube, right-hand, from 5-9

1шт.

tube with tee to hose at rod end of

1шт.

cylinder

1шт.

10

Hose, from tubes to closed end of 5-9

1шт.

cylinder

1шт.

11

Hose, from tubes to rod end of 5-9

1шт.

cylinder

1шт.

12

Steering tube, left-hand, from tube 5-9

1шт.

with tee to closed end of cylinder

1шт.

13

Steering tube, right-hand, from 5-9

1шт.

tube with tee to closed end of

1шт.

cylinder

1шт.

14

Return hose from upper left-hand 5-11

1шт.

port on steering control, Start Serial: valve

1шт.

tube at hose to oil cooler

1шт.

15

Return tube, from return hose at 5-11

1шт.

steering control valve to hose at

1шт.

oil cooler

1шт.

16

Return hose, from return, Serial Range: tube-5-11

1шт.

oil cooler

1шт.

17

Supply hose, from oil, Serial Range: cooler-5-11

1шт.

tube to hydraulic reservoir

1шт.

18

Supply tube, from supply hose at 5-11

1шт.

oil cooler to hydraulic reservoir

1шт.

19

Supply hose, from hydraulic 5-11

1шт.

reservoir to flow control valve

1шт.
