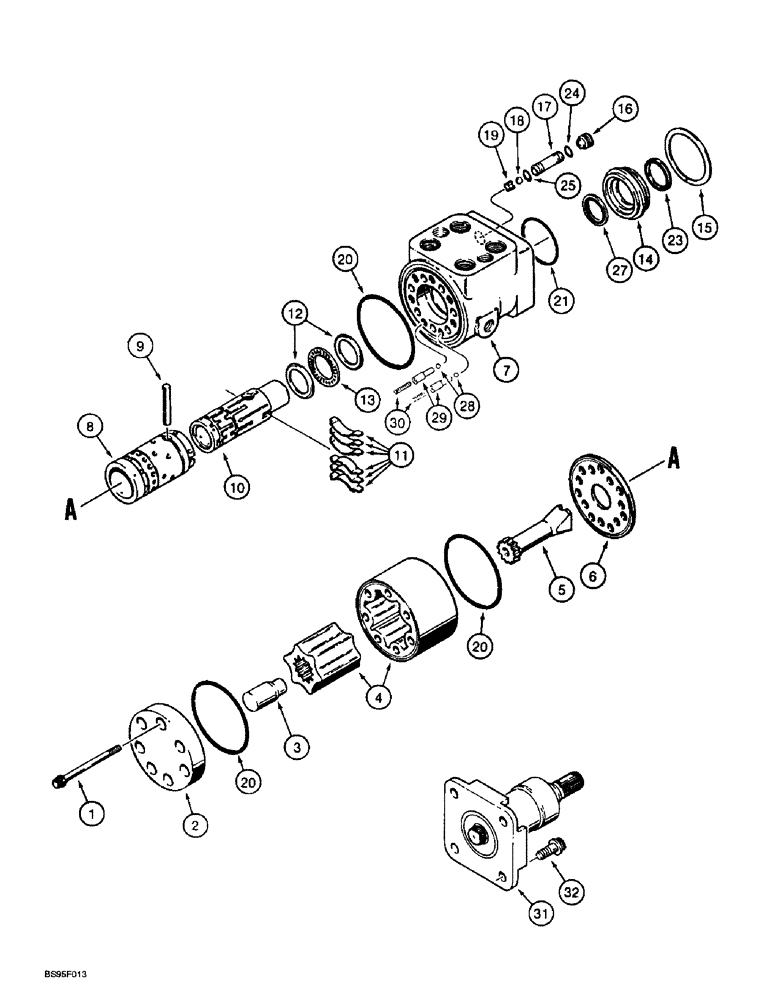

Запчасти Case 721B (5-05C) - STEERING CONTROL VALVE ASSEMBLY - 135604A1 (05) - STEERING

135604A1

VALVE

ASSEMBLY - steering control, with internal relief, includes column, 261-1192-082 stamped on name plate, Includes: Ref. 1 - 32

1шт.

177285A1

VALVE, CONTROL

VALVE ASSEMBLY - steering control, with internal relief, does not include column, Includes: Ref. 1 - 32

1шт.

1

177810A1

SCREW

BOLT - 12 point, special

7шт.

2

135867A1

CAP

- end, without O-ring groove

1шт.

3

S300936

SPACER

- drive shaft

1шт.

4

177811A1

PINION

GEROTOR - set, valve

1шт.

5

L30878

DRIVE SHAFT

SHAFT - drive, gerotor, valve

1шт.

6

135869A1

PLATE

- spacer, with O-ring groove

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - control assembly

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control assembly

1шт.

9

135874A1

PIN

- roll, sleeve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control assembly

1шт.

11

N14250

KIT

- centering spring, set of 6, spool

1шт.

12

D82804

RACE

- thrust, bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller

1шт.

14

N13312

CYLINDER END CAP

BUSHING - spool

1шт.

15

S110169

WASHER

RING - retaining, bushing

1шт.

16

D82805

SET SCREW

SCREW - set

1шт.

17

D82806

VALVE SEAT

SEAT - ball

1шт.

18

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

19

L35368

RETAINER

- check ball

1шт.

1343658C3

SEAL KIT

KIT - seal, low torque, Includes: Ref. 20 - 27

1шт.

20

238-6040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro

Cap and plate -040, 90 Duro, 2.864" ID x .070" Thk

3шт.

21

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

23

697494R91

OIL SEAL

SEAL - 1 inch ID

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Seat, inner -011, 90 Duro, .301" ID x .070" Thk

1шт.

27

121179A1

SEAL

- teflon, spool, replaces Ref. 22, 26, and 27 shown on figure 5-5A

1шт.

28

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

2шт.

29

136494A1

PLUG

RETAINER - spring, anticavitation

2шт.

30

N14763

SPRING

- anticavitation

2шт.

31

S301818

CAP

COLUMN ASSEMBLY - lower, steering, individual components are not serviced separately, Includes: Ref. 32

1шт.

32

380-2612

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Full Thd

SCREW - 12 point flange, chemical locking, 3/8 NC x 3/4 inch, Replaces 27588R1

2шт.
