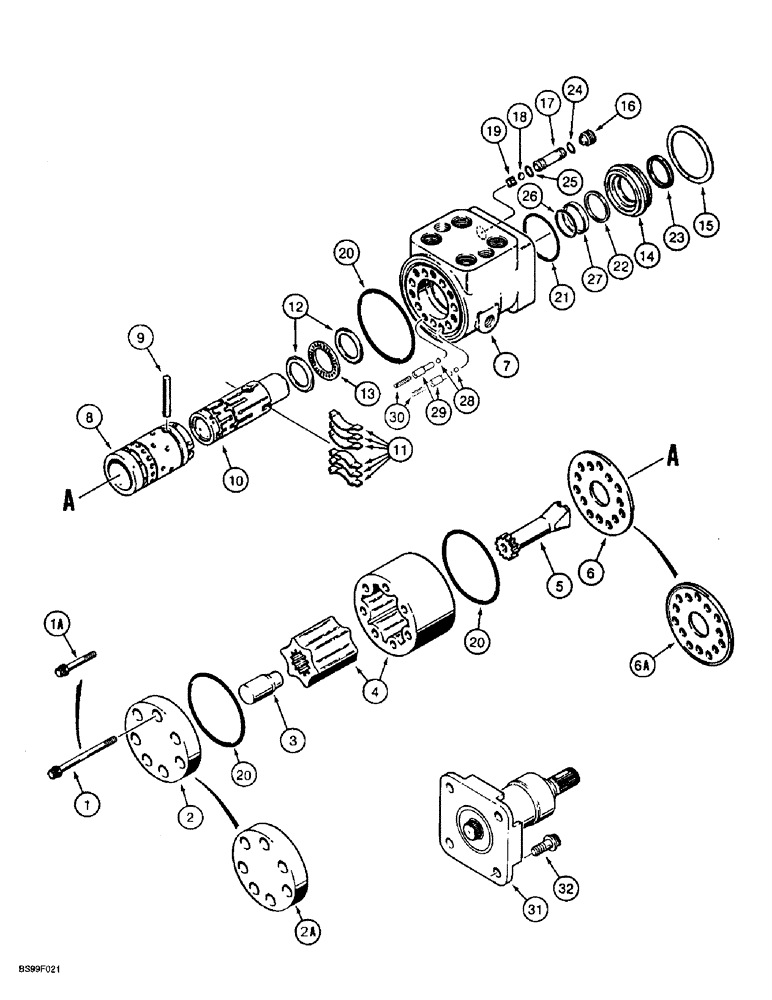

Запчасти Case 721B (5-04) - STEERING CONTROL VALVE ASSEMBLY - L129607 (05) - STEERING

L129607

VALVE

ASSEMBLY - steering control, with internal relief, includes column, 261-1192-081 stamped on name plate, Includes: Ref. 1 - 19

1шт.

S301969

VALVE

ASSEMBLY - steering control, with internal relief, no longer available, order 177285A1 on figure 5-5C, Includes: Ref. 1 - 119

1шт.

1

D51217

BOLT,5/16" x 3 1/2"

- 12 point, special, 5/16 NF x 3-1/2 inch, used with Ref. 2 and 6, if used

7шт.

1a

135866A1

SCREW,Flg, Torx, 5/16" x 1 3/4", Gr 8

BOLT - 12 point flange, special, 5/16 NF x 1-3/4 inch, grade 8, used with Ref. 2A and 6A, if used

7шт.

When the end cap repair kit is installed, "flip" outer gerotor ring, Ref. 4 and reinstall it so that the O-ring groove faces the end cap. Ref. 29, (2) N14764 plugs, shown on figure 5-5A should be replaced at the same time.

1шт.

2

D82809

COVER

CAP - end, with o-ring groove, uses N6392 o-ring, Ref. 20, shown on figure 5-5A, upon depletion of D82809 stock, order 136492A1 repair kit, see below

1шт.

2a

135867A1

CAP

- end, without o-ring groove, uses 238-6040 o-ring, Ref. 20, shown on figure 5-5C, in the gerotor o-ring groove

1шт.

When the end cap repair kit is installed, "flip" outer gerotor ring, Ref. 4 and reinstall it so that the O-ring groove faces the end cap. Ref. 29, (2) N14764 plugs, shown on figure 5-5A should be replaced at the same time.

1шт.

100066A1

ROTOR

KIT - gerotor set and spacer, Includes: Ref. 3 and 4

1шт.

3

103507A1

SPACER

- drive shaft

1шт.

4

D83219

ROTOR

GEROTOR - set, valve, no longer available, order 100066A1 kit

1шт.

5

L30878

DRIVE SHAFT

SHAFT - drive, gerotor

1шт.

6

S113037

PLATE

- spacer, without o-ring, groove, uses N6392 o-ring, Ref. 20, shown on figure 5-5A, in the gerotor o-ring groove, upon depletion of S113037 stock, order 136493A1 repair kit, see below

1шт.

6a

135869A1

PLATE

- spacer, with o-ring groove, (install with groove facing gerotor) uses 238-6040 o-ring, Ref. 20, shown on figure 5-5C

1шт.

When the end cap repair kit is installed, "flip" outer gerotor ring, Ref. 4 and reinstall it so that the O-ring groove faces the end cap. Ref. 29, (2) N14764 plugs, shown on figure 5-5A should be replaced at the same time.

1шт.

S301971

TESTER

CONTROL ASSEMBLY - valve, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - control assembly

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control assembly

1шт.

9

L30888

PIN

- roll

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control assembly

1шт.

11

N14250

KIT

- centering spring, set of 6, spool

1шт.

12

D82804

RACE

- thrust, bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller

1шт.

14

N13312

CYLINDER END CAP

BUSHING - spool

1шт.

15

S110169

WASHER

RING - retaining, bushing

1шт.

16

D82805

SET SCREW

SCREW - set

1шт.

17

D82806

VALVE SEAT

SEAT - ball

1шт.

18

211-1010

BALL,5/16" OD

- chrome aloy steel, 5/16 inch, grade 245/16; 24, CRS

1шт.

19

L35368

RETAINER

- check ball

1шт.

136493A1

COVER

KIT - repair, end cap and spacer plate, includes Ref. 1A, 2A and 6A, use with 238-6040 o-rings, Ref. 20, shown on figure 5-5C, Includes: Ref. 20 - 32

1шт.

When the end cap repair kit is installed, "flip" outer gerotor ring, Ref. 4 and reinstall it so that the O-ring groove faces the end cap. Ref. 29, (2) N14764 plugs, shown on figure 5-5A should be replaced at the same time.

1шт.

S301969

VALVE

ASSEMBLY - steering control, no longer available, order 177285A1 on figure 5-5C

1шт.

S301023

SEAL KIT

KIT - seal, no longer available, order 1343658C3 seal kit, shown on figure 5-5C, Includes: Ref. 20 - 27

1шт.

20

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk, Used with D82809 cap and S113037 plate, replaces N6392 o-ring

3шт.

21

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

22

50-2703T1

BACK-UP RING

RING - backup, seal

1шт.

23

697494R91

OIL SEAL

SEAL - 1 inch ID

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

25

L30893

O-RING,1/16" Thk x 5/16" ID

- 5/16 ID x 1/8 inch wide, seat, inner

1шт.

26

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Spool, inner -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

27

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon, inner

1шт.

28

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

2шт.

29

136494A1

PLUG

RETAINER, spring, anticavitation, replaces N14764 plug

2шт.

30

N14763

SPRING

- anticavitation

2шт.

31

S301818

CAP

COLUMN ASSEMBLY - lower, steering, individual components are not serviced separately

1шт.

32

380-2612

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Full Thd

SCREW - 12 point flange, chemical locking, 3/8 NC x 3/4 inch, Replaces 27588R1

2шт.
