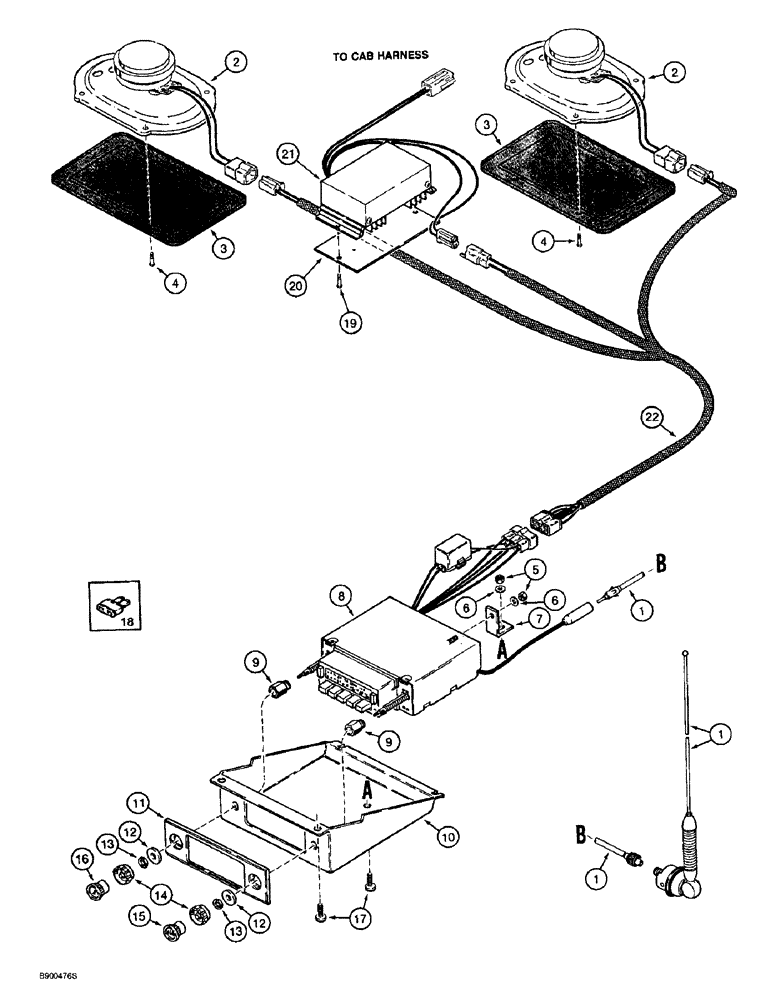

Запчасти Case 721B (4-64) - RADIO AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

L36340

KIT

- radio installation, includes instructions, Includes: Ref. 1 - 22

1шт.

1

1983571C1

ANTENNA

- AM/FM radio

1шт.

2

245343C3

SPEAKER

- radio, 5 x 7 inch, 4 ohm

2шт.

3

245806C1

PANEL

- speaker grille

2шт.

4

142-104

SCREW,Oval HD, #10 - 24 x 1"

8шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

7

1977478C1

SUPPORT

BRACKET - support, radio

1шт.

8

245160C91

RADIO

- AM-FM stereo, order ZAE1ETX as a direct replacement from ship direct

1шт.

9

84240C1

SPACER

- 3/8 x 5/8 x 3/4 inch

2шт.

10

1339570C3

COVER

- radio

1шт.

11

84103C1

PANEL

- radio trim highlight

1шт.

12

142920C1

WASHER

- flat, 9.72 x 15.00 x 0.60 mm

2шт.

13

142921C1

NUT

- hex, special

2шт.

14

385532C1

KNOB

- control, tone and balance

2шт.

15

111382C1

KNOB

- control, tuning

1шт.

16

111381C1

KNOB

- control, volume control

1шт.

17

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

5шт.

18

A149798

FUSE

- tan, 5 ampere

1шт.

19

264-20410

SELF-TAP SCREW,Slotted Pan Hd, #8 x 5/8"

SCREW - self-tapping, pan head slotted, No. 8 NC x 5/8 inch

3шт.

20

1983657C1

LARGE PLATE

PLATE - mounting, converter

1шт.

21

1983628C1

TRANSFORMER

CONVERTER - 24 volt to 12 volt DC

1шт.

22

A187669

HARNESS

- radio

1шт.
