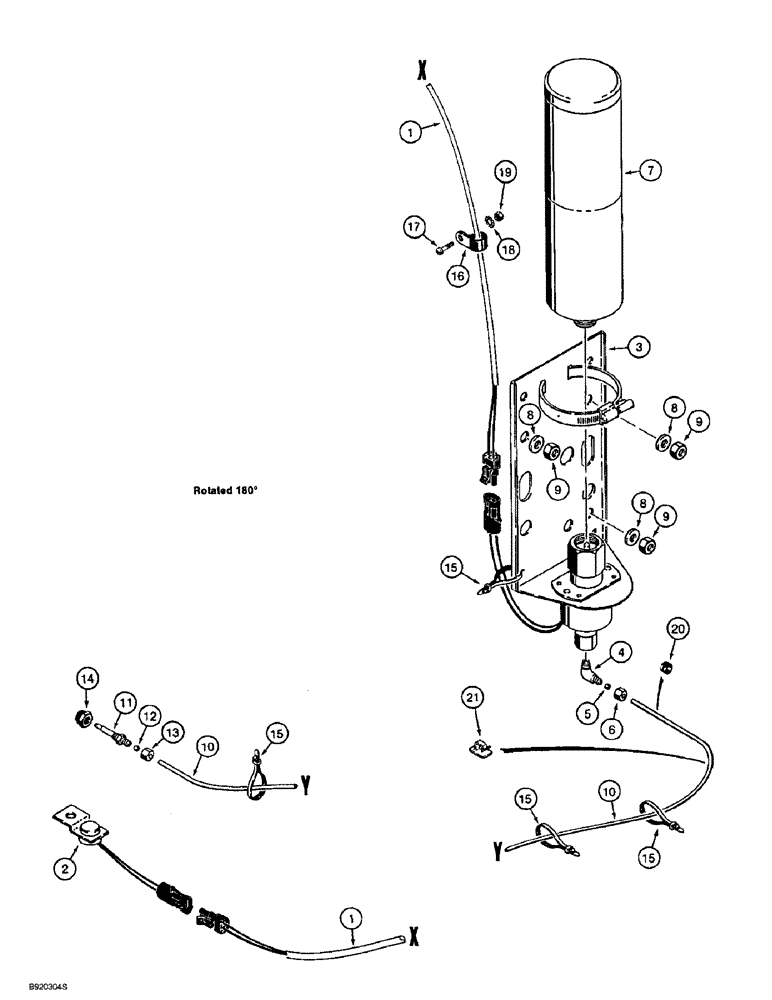

Запчасти Case 721B (4-62) - COLD WEATHER STARTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - rear, see figures 4-30 - 4-35A, and 4-48

1шт.

2

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE - circuit breaking, includes lead wires, use existing engine hardware

1шт.

L126198

VALVE

ASSEMBLY - solenoid, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - solenoid, component parts not serviced separately

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. Ref 4 - 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

7

A171940

CYLINDER

- starting fluid, order 3833593A from ship direct central or locally from Phillips-Temro 8200327

1шт.

8

S95569

WASHER

- flat, special, 1/2 inch

3шт.

9

231-1406

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

10

L126227

TUBE,0.125" OD x 84" L

- 2134 mm (84 inch) long, cut from L60539X bulk tube, see below

1шт.

See figure 9-102 for cold start decal.

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

14

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

P-type, Replaces A62209 5/16", Insul, 1/4" Bolt

1шт.

17

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

1шт.

18

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

1шт.

19

225-14110

NUT,#10-24

1шт.

20

L77834

GROMMET

- rubber

1шт.

21

L100659

CLIP

- tube

1шт.

L60539X

TUBE

- bulk, nylon, 3 (1/8) ID x 4267 mm (168 inch) long

1шт.

See figure 9-102 for cold start decal.

1шт.
