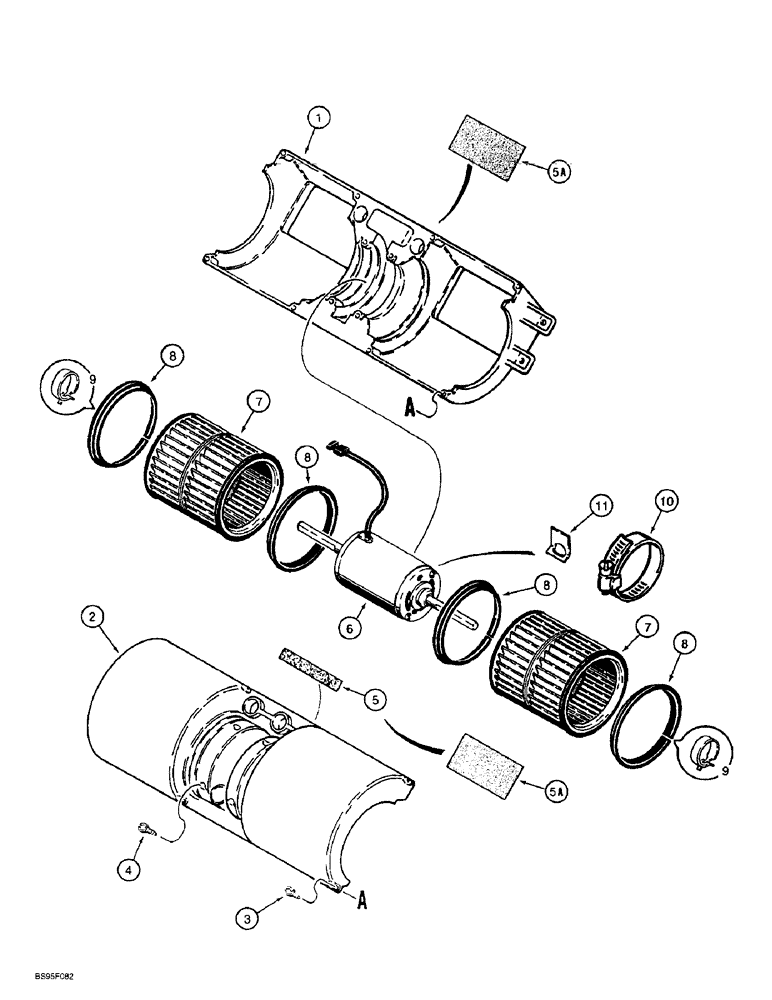

Запчасти Case 721B (4-60) - CAB BLOWER (04) - ELECTRICAL SYSTEMS

1

F64740

HOUSING

- fan, lower, lower

1шт.

2

F64741

HOUSING

- fan, upper, upper

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

8шт.

4

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, pan head Phillips, No. 10-16 x 1 inch

4шт.

5

REF

INSTRUCTION

SEAL - 102 mm (4 inch) long, cut from F64119X bulk, see below, foam, upper fan housing, no longer available, order 1999608C1 gasket, Ref. 5A

1шт.

5a

1999608C1

GASKET

- 1 x 4 x 1/16 inch

2шт.

6

1546448C1

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal and resistor mounted to 1999767C1 plrnum duct, Ref. 13 shown on figure 9-78

1шт.

6

370512A1R

REMAN-ELECTRIC MOTOR

721B, Reman For New P/N 1546448C1

1шт.

6

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

7

F64935

BLOWER,Fan

FAN - blower

2шт.

8

F64739

RING

- plastic, fan retaining

4шт.

9

F64936

CLAMP

- steel spring

2шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj., 2-1/16 - 3 inch diameter

1шт.

11

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

1шт.

F64119X

GASKET

STRIP - foam, bulk, 1.5 (1/16) x 13 (1/2) x 30480 mm (1200 inch)

1шт.
