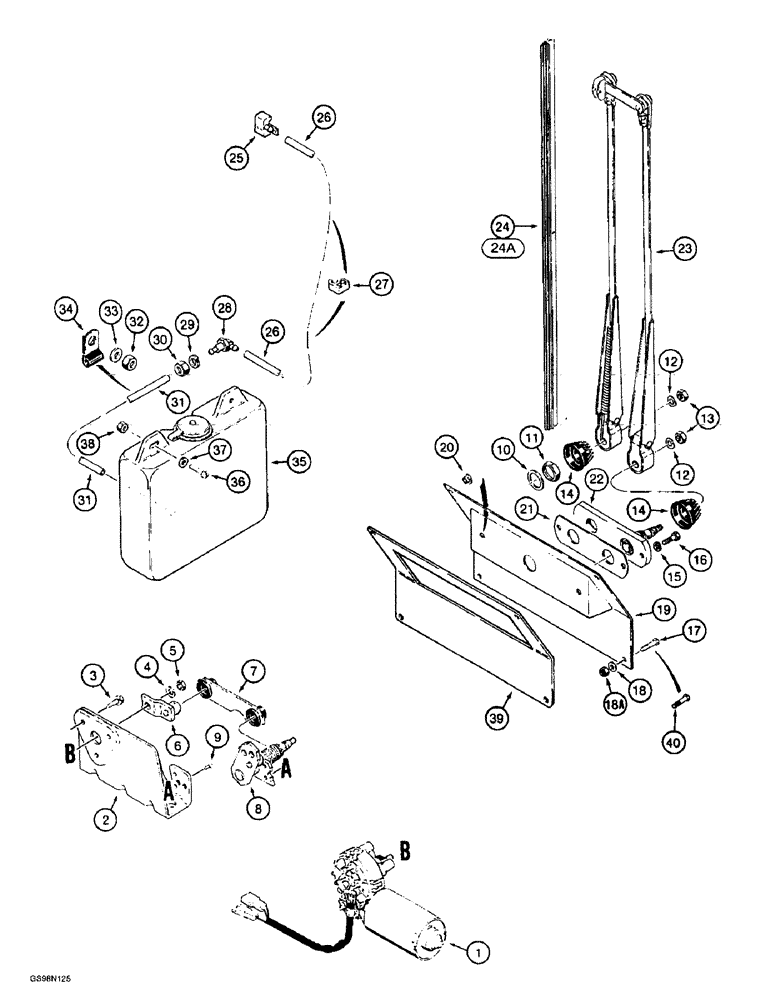

Запчасти Case 721B (4-56) - FRONT WIPER (04) - ELECTRICAL SYSTEMS

A187534

WIPER MOTOR

MOTOR ASSEMBLY - with bracket, 24 volt, front windshield wiper, Includes: Ref. 1 - 9

1шт.

1

A187535

WIPER MOTOR

MOTOR - windshield wiper, 24 volt

1шт.

2

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW - with washer, special, motor to bracket

3шт.

4

N8361

SPRING WASHER

- Belleville, washer

1шт.

5

L112090

NUT

- hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

A187835

ROD

LINK - wiper

1шт.

8

A187836

CROSS SHAFT

SHAFT - pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special, pivot shaft to bracket

4шт.

10

L112088

WASHER

- special, large, shaft

1шт.

11

L112087

NUT

- special, large, shaft

1шт.

12

L112089

WASHER

- wave, special, shaft end

2шт.

13

L112090

NUT

- hex, special, 8 mm, shaft end

2шт.

14

L112081

CAP

- pivot shaft end

2шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

1шт.

17

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - pan Phillips, special, 1/4 NC x 3/4 inch, if used

4шт.

18

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), If used 1/4", SAE

4шт.

18a

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, if used

4шт.

19

1339586C1

COVER

- mounting, front wiper, tan

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch, black, wiper cover, if used

1шт.

19

196356A1

SUPPORT

COVER - mounting, front wiper, gray

1шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

Wiper cover, If used Dome, .375" hole, Nylon

1шт.

21

A186219

GASKET,1.5mm Thk

- pivot

1шт.

22

A186220

PIVOT ASSY.

PIVOT - wiper arm

1шт.

23

A187964

WIPER ARM

ARM - windshield wiper, 680 mm (26-13/16 inch) long

1шт.

24

A187574

WIPER BLADE

BLADE - windshield wiper, 700 mm (27-9/16 inch) long, Includes: Ref. 24A

1шт.

Refill blade 234594A1 is available. The refill does not have a metal strip. Use the metal strip from the old blade.

1шт.

24a

234594A1

WIPER BLADE

BLADE - rubber

1шт.

Refill blade 234594A1 is available. The refill does not have a metal strip. Use the metal strip from the old blade.

1шт.

25

1970002C1

JET

NOZZLE - wiper fluid

1шт.

26

1964827C1

PIPE

HOSE - 810 mm (32 inch) long, cut from 1968141CX hose, Serial Range: nozzle-elbow

1шт.

27

1970003C1

CLIP,ELECTRICAL

CLIP - hose, to wiper arm

2шт.

28

1968053C1

ELBOW

- 90 degree, special

1шт.

29

N8361

SPRING WASHER

- Belleville

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

1964828C1

PIPE

HOSE - 1145 mm (45 inch) long, cut from 1968141CX bulk hose, elbow to fluid reservoir, see below

1шт.

32

425-106

NUT,3/8"-16, Cl 5

3шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

3шт.

35

A187527

RESERVOIR ASSY.

RESERVOIR - windshield wiper fluid, with pump, component parts not serviced separately

1шт.

36

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - pan Phillips, special, 1/4 NC x 3/4 inch

2шт.

37

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch

2шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

39

1994815C1

WIPER SEAL

- one piece, adhesive back

1шт.

40

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW - pan Phillips, special, 1/4 NC x 1 inch

4шт.

1968141CX

HOSE

bulk, 15,240 mm (600 inch) long, includes Refs. 26 and 31

1шт.
