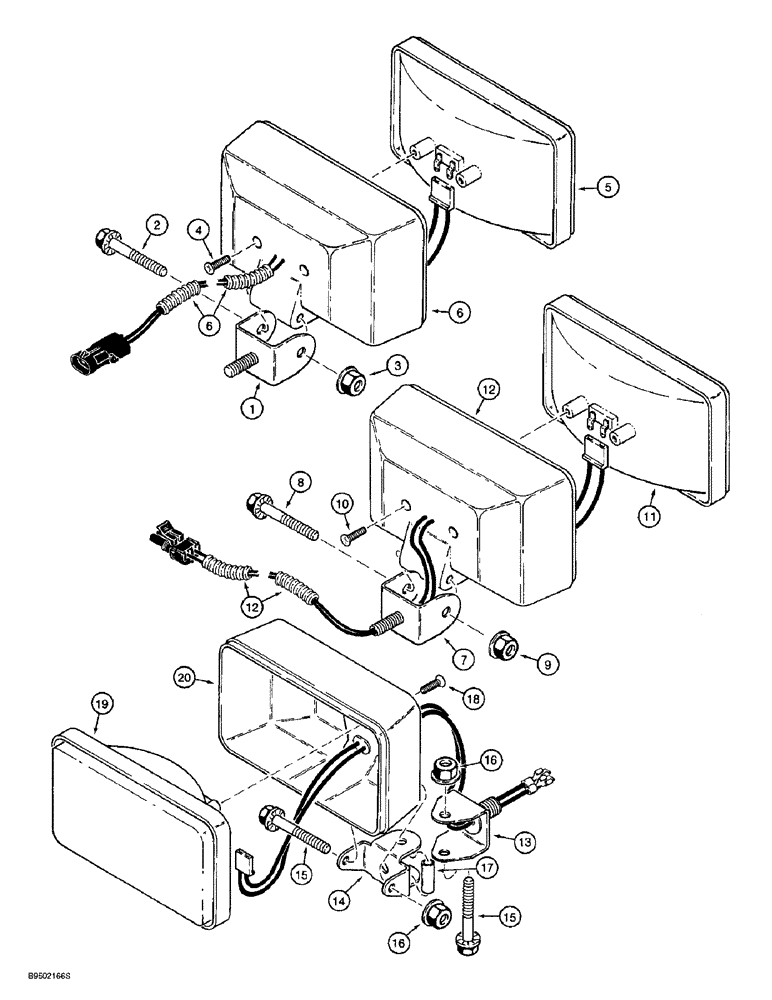

Запчасти Case 721B (4-50) - LAMPS - FRONT AND REAR, FRONT LAMP (04) - ELECTRICAL SYSTEMS

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - front, drive, Includes: Ref. 1 - 6

2шт.

1

N8347

SUPPORT

BRACKET - lamp, replaces A187913

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch

2шт.

5

103654A1

HEADLIGHT,Halogen, 24V, 60W

BULB - sealed beam

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, not serviced separately, order kit 229488A1, front & rear, Includes: Ref. 7 - 12

4шт.

7

N8347

SUPPORT

BRACKET - lamp, replaces A187913 bracket, front & rear flood

1шт.

8

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front & rear flood lamps Hex Flg, 5/16"-18 x 2", Serr

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, front & rear flood lamps

1шт.

10

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch, front & rear flood lamps

2шт.

11

103653A1

HEADLIGHT,24V, 60W

BULB - sealed beam, front & rear flood lamps

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front & rear flood

1шт.

229488A1

HEADLIGHT,24V

KIT - flood lamp, 24 volt, rectangular lamp, 2 wire, includes A187520 lamp assembly, 56698R1 connector and instruction sheet, front & rear

1шт.

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - cab or canopy flood lamps, Includes: Ref. 13 - 20

2шт.

13

N8347

SUPPORT

BRACKET - lamp, includes stud, replaces A52216, cab or canopy flood lamps

1шт.

14

N14285

SUPPORT

BRACKET - lamp, replaces A52215, cab or canopy flood lamps

1шт.

15

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cab or canopy flood lamps Hex Flg, 5/16"-18 x 2", Serr

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, cab or canopy flood lamps

2шт.

17

65881H

SPACER,1/4" Pipe x 1 1/4"

- tubular, 1/4 x 1-1/4 inch, replaces A52219, cab or canopy flood lamps

1шт.

18

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch, cab or canopy flood lamps

2шт.

19

103653A1

HEADLIGHT,24V, 60W

BULB - sealed beam, cab or canopy flood lamps

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - lamp, cab or canopy flood

1шт.
