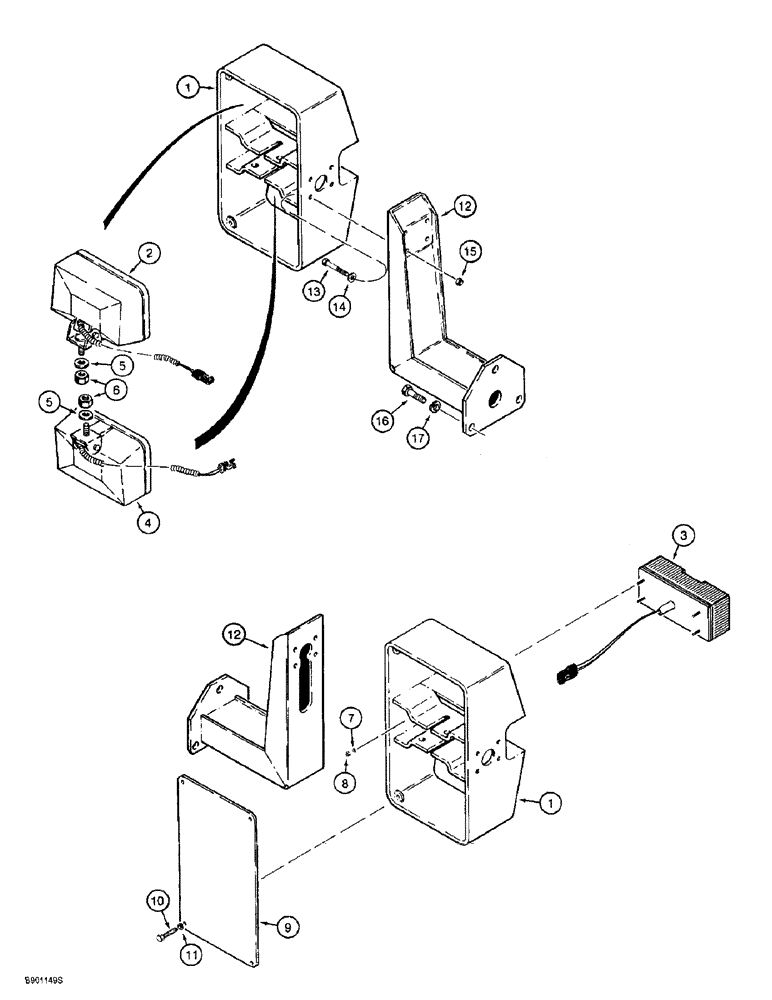

Запчасти Case 721B (4-44) - FRONT LAMP MOUNTING, Z-BAR LOADER (04) - ELECTRICAL SYSTEMS

1

L126951

HOUSING

- plastic, front lamp

2шт.

2

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - front drive, see parts list figure 4-50

2шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - turn signal and flasher, left-hand and right-hand, see figure 4-52 for correct assembly and components

1шт.

4

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, see parts list figure 4-50, not serviced separately, order kit 229488A1 shown on figure 4-50

2шт.

5

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

6шт.

6

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

4шт.

7

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

8шт.

8

825-1405

NUT,M5, Cl 8

8шт.

9

L126959

COVER

- housing, lamp

2шт.

10

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

8шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

12

L126955

BRACKET

- mounting, lamp

2шт.

13

426-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

8шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

8шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

16

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

6шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.
