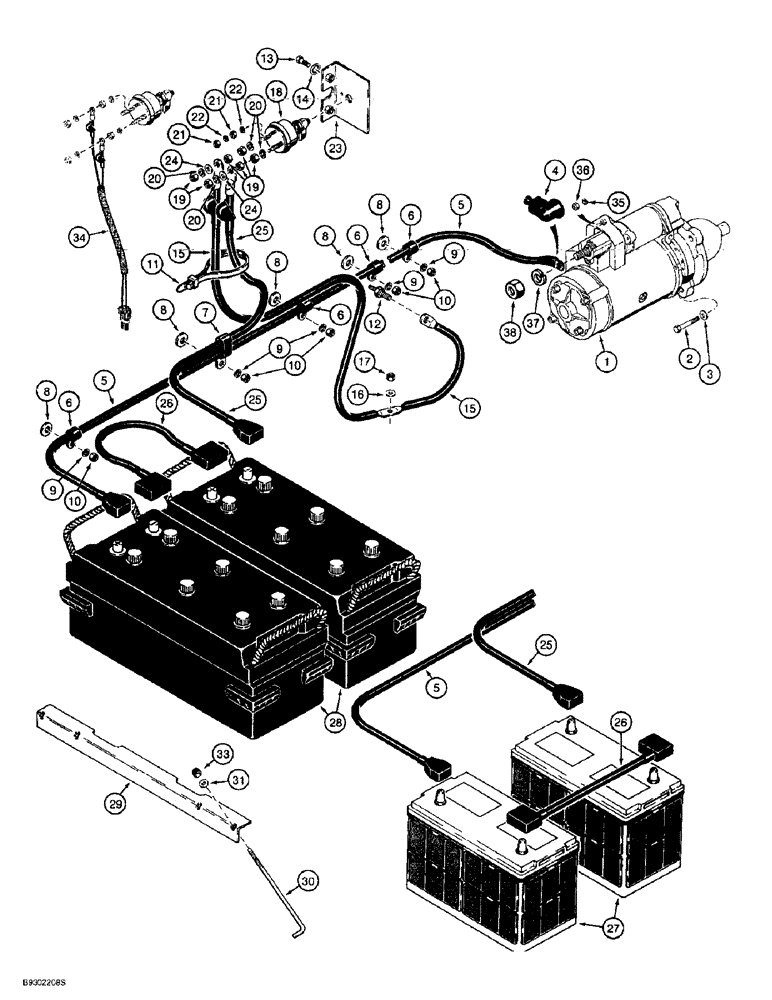

Запчасти Case 721B (4-40) - STARTER, BATTERY, AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

A187722

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list figures 4-4 and 4-6

1шт.

1

AR187722

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC187722

CORE-STARTER

Return Number

1шт.

2

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Bolt, Hex, M12 x 50, 8.8

3шт.

3

R24323

WASHER

WASHER - flat, special, hardened

3шт.

4

L126713

BOOT

BOOT - plastic, cable at starter

1шт.

5

L127638

CABLE

CABLE - 82-11/16 (2100 mm) long, positive terminal, replaces L126109

1шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLAMP, , P-type, Battery cable to rear frame, Replaces 129083R1 5/8", Insul, 3/8" Bolt

4шт.

7

L19029

CLAMP

CLAMP - P-type, 1/2 inch ID, battery cable to rear frame

1шт.

8

S95569

WASHER

WASHER - flat, special, 1/2 inch

5шт.

9

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

5шт.

10

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

5шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

12

L127553

STUD

ADAPTER - stud, cable mounting

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex, 3/8 NC x 3/4 inch, grade 8

2шт.

14

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

2шт.

15

L124790

CABLE

CABLE - ground, at disconnect switch

1шт.

16

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

WASHER - flat, brass, special, 11 x 25 x 2 mm

1шт.

17

L127555

NUT,Hex, 3/8" - 16

NUT - hex, brass, special, 3/8 inch NC

1шт.

L126256

SWITCH

SWITCH ASSEMBLY - master disconnect, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

19

129-187

NUT,5/16"-24, Brass

NUT, 5/16"-24, Brass

6шт.

20

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

21

131-573

NUT,#10-32

NUT - light hex, self-locking, No. 10 NF

4шт.

22

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

23

112560A1

BRACKET

BRACKET - mounting, disconnect switch

1шт.

24

495-21044

WASHER,3/8"

WASHER (flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

25

L124788

CABLE

CABLE - disconnect switch to battery, negative terminal

1шт.

26

L124738

CABLE

CABLE -, Serial Range: battery-battery

1шт.

27

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt, standard, service replacement

2шт.

28

BHC4DA

BATTERY, DRY

BATTERY DRY BATTERY - heavy duty, dry, 12 volt, service replacement

2шт.

29

L124221

SUPPORT

BRACKET - battery hold down

2шт.

30

L124224

BOLT

BOLT - special, J-type, battery hold down

4шт.

31

495-21038

WASHER,5/16"

WASHER, (flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

33

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

34

L127676

WIRE HARNESS

HARNESS - disconnect

1шт.

35

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

36

225-14210

NUT,#10-32

NUT, #10-32

1шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

38

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
