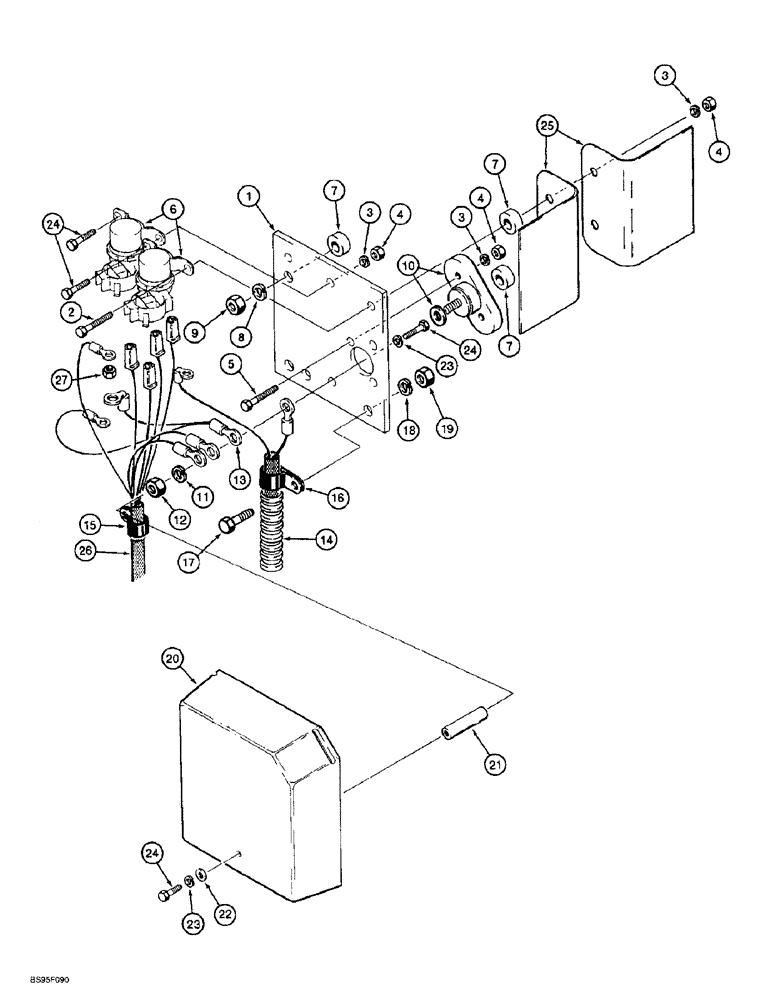

Запчасти Case 721B (4-35A) - REAR HARNESS TO RELAY PANEL, P.I.N. JEE0040040 AND AFTER (04) - ELECTRICAL SYSTEMS

1

125058A1

LARGE PLATE

PANEL - relay mounting

1шт.

2

426-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8

- hex, 1/4 NC x 1-1/4 inch, grade 8

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

5

426-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8

- hex, 1/4 NC x 1-1/4 inch, grade 8

2шт.

6

120398A1

RELAY

- 24 volt, starter and fuel

2шт.

7

S77915

SPACER

- relay panel mounting

4шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

L124085

CONNECTOR, ELEC

BLOCK - terminal, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - terminal block, includes flat washer

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

128785A1

ELECTRICAL WIRE

WIRE - jumper, Serial Range: block-relay

1шт.

14

128784A1

HARNESS

CABLE -, Serial Range: relay-starter

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

17

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

L114612

COVER

- relay panel

1шт.

21

L114195

SPACER

- relay cover

1шт.

22

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

23

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

4шт.

25

L125774

PROTECTOR

SHIELD - heat, terminal block, two used on models with auxiliary steering, replaces L128055

1-2шт.

26

130404A1

HARNESS

- rear, see figures 4-30, 4-32, 4-48, and 4-62 for continuation of the harness, Serial Range: JEE0040040-JEE0042309

1шт.

26

192486A1

HARNESS

- rear, see figures 4-30, 4-32, 4-48, and 4-62 for continuation of the harness, Serial Range: JEE0042310-JEE0052700

1шт.

26

244237A1

HARNESS

- rear, see figures 4-31A, 4-32, 4-48 and 4-62 for continuation of the harness, Start Serial: JEE0052701

1шт.

27

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.
