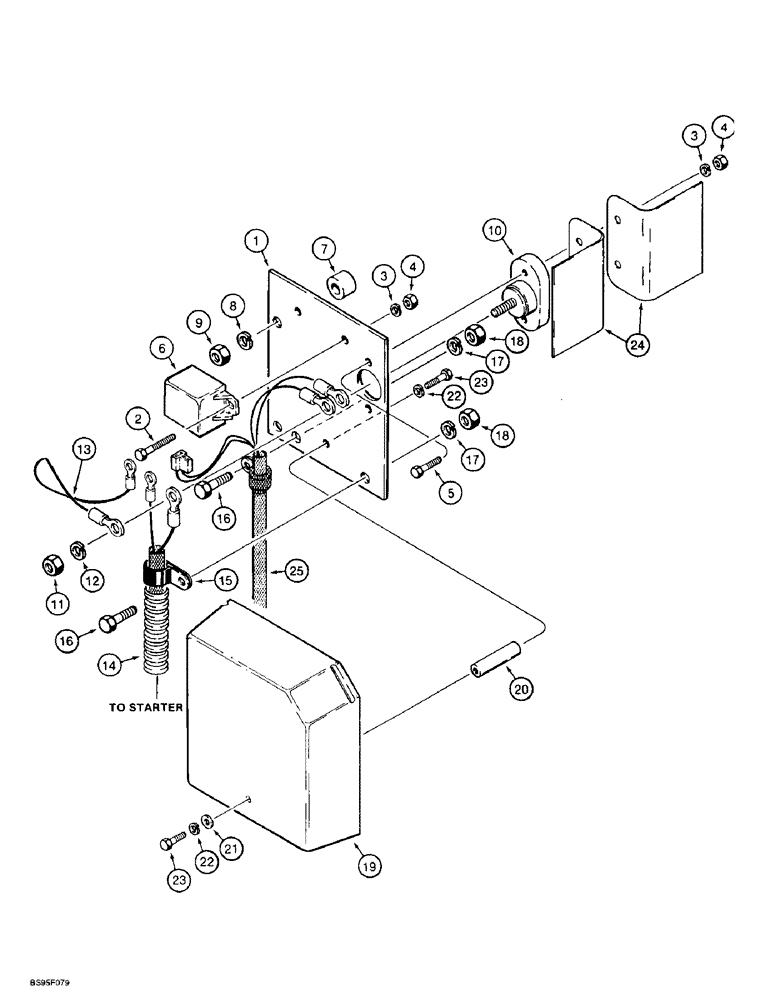

Запчасти Case 621B (4-32) - REAR HARNESS TO RELAY PANEL, PRIOR TO P.I.N. JEE0052701 (04) - ELECTRICAL SYSTEMS

1

L124084

LARGE PLATE

PLATE, LARGE PANEL relay mounting

1шт.

2

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

3

492-11025

LOCK WASHER,1/4"

4шт.

4

425-104

NUT,1/4"-20, Cl 5

4шт.

5

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

6

1546542C1

RELAY

sealed, 24 volt

1шт.

7

S77915

SPACER

relay panel mounting

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

L124085

CONNECTOR, ELEC

CONNECTOR BLOCK terminal, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY terminal block, includes flat washer

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

L124102

ELECTRICAL WIRE

WIRE jumper

1шт.

14

L124097

CABLE

, Serial Range: relay-starter

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

L114612

COVER

relay panel

1шт.

20

L114195

SPACER

relay cover

1шт.

21

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

22

492-11025

LOCK WASHER,1/4"

2шт.

23

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

24

L125774

PROTECTOR

SHIELD heat, terminal block, two used on models with auxiliary steering JEE0042310 to

1-2шт.

25

107788A1

HARNESS

rear, see Figure 4-28 and 4-30 for continuation of harness, Serial Range: -JEE0042310

1шт.

25

192491A1

HARNESS

rear, see Figures 4-28 and 4-30 for continuation of harness JEE0042310, Serial Range: -JEE0052700

1шт.
