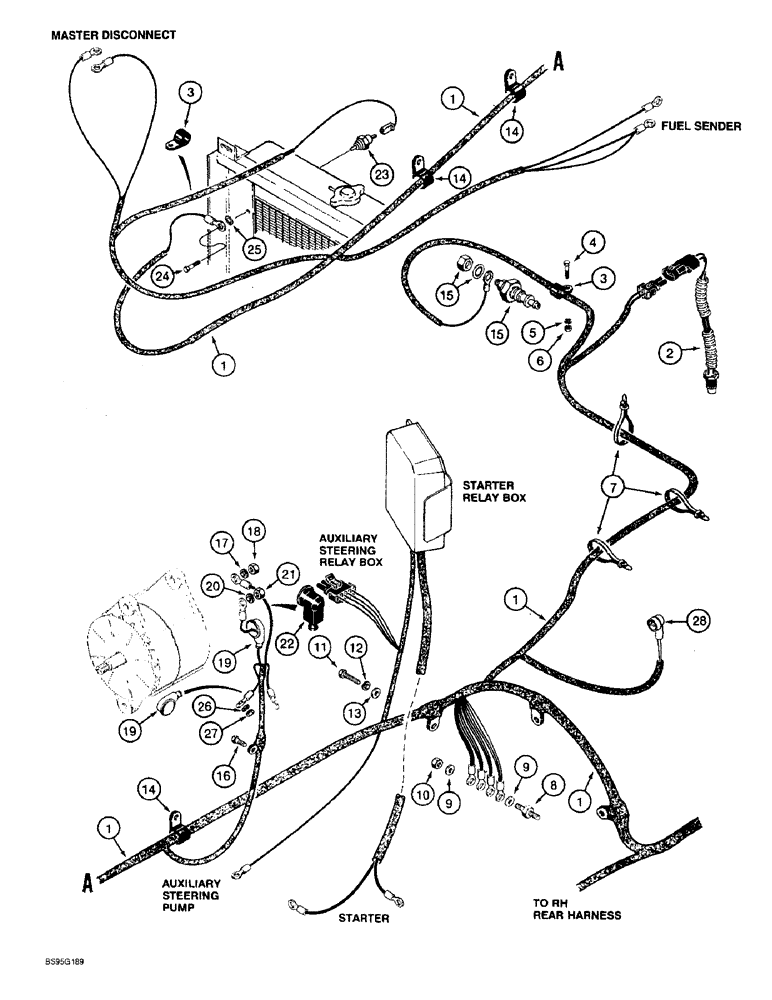

Запчасти Case 621B (4-30) - REAR HARNESS, ENGINE LEFT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

107788A1

HARNESS

rear, see Figures 4-28 and 4-32 for continuation of harness, Serial Range: -JEE0042310

1шт.

1

192491A1

HARNESS

rear, see Figures 4-28 and 4-32 for continuation of harness JEE0042310, Serial Range: -JEE0052700

1шт.

1

244236A1

HARNESS

rear, see Figures 4-29A and 4-33A for continuation of harness JEE0052701, Serial Range: -JEE0053349

1шт.

1

248841A1

HARNESS

rear, see Figures 4-29A and 4-33C for continuation of harness JEE0053350 to

1шт.

2

A187530

TEMPERATURE SENDER

SWITCH hydraulic oil temperature

1шт.

3

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

P-type, 10.3 mm ID, harness, at filter and radiator, replaces 49853 clamp

2шт.

4

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

8

L127553

STUD

ADAPTER brass, engine ground mount

1шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

11 x 25 x 2 mm

2шт.

10

L127555

NUT,Hex, 3/8" - 16

3/8 inch NC

1шт.

11

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

12

892-11012

LOCK WASHER,M12

1шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Uses existing hardware

3шт.

15

N13268

PRESSURE SWITCH

ASSEMBLY restriction, electrical, hydraulic oil, parts list Figure 8-08

1шт.

16

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

1шт.

17

492-11044

LOCK WASHER,7/16"

1шт.

18

425-107

NUT,7/16"-14, G5

1шт.

19

S64612

BOOT

rubber, one used with optional gauges, if used

1шт.

20

892-11004

LOCK WASHER,M4

1шт.

21

825-1404

NUT,M4, Cl 8

1шт.

22

L126713

BOOT

plastic

1шт.

23

S119340

SENSOR

coolant level

1шт.

24

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

25

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

26

892-11005

LOCK WASHER,M5

If used

1шт.

27

825-1405

NUT,M5, Cl 8

If used

1шт.

28

L129852

CONNECTOR, ELEC

CONNECTOR speed sensor, included with harness

1шт.
