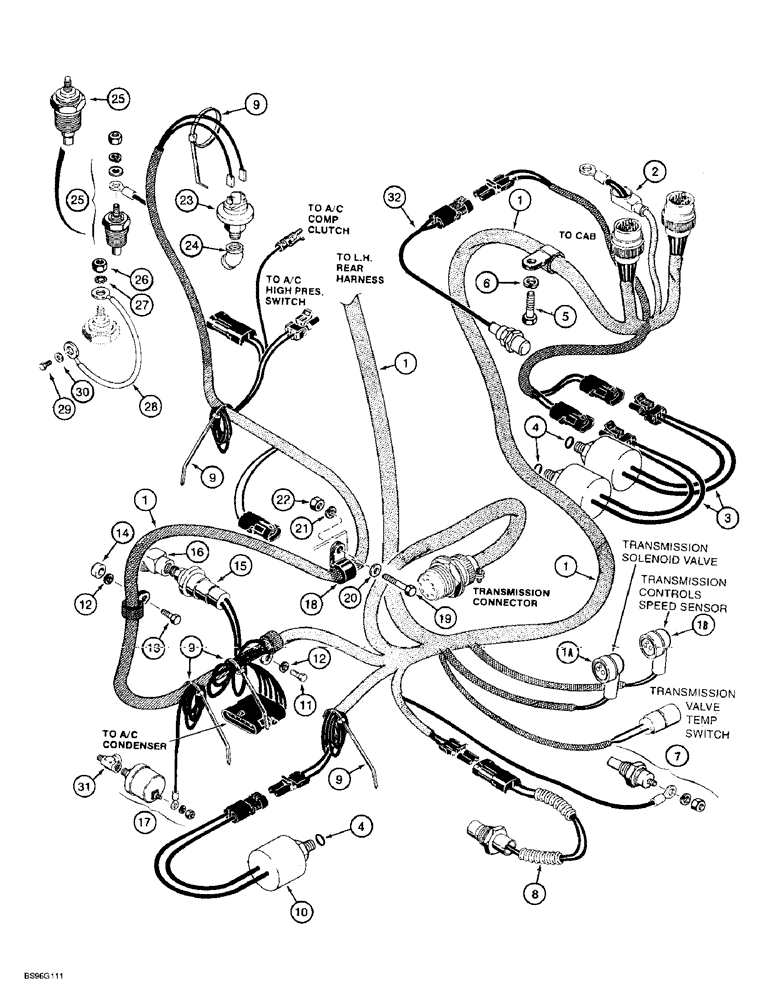

Запчасти Case 621B (4-29A) - REAR HARNESS, ENGINE RIGHT-HAND SIDE, P.I.N. JEE0052701 AND AFTER (04) - ELECTRICAL SYSTEMS

1

244236A1

HARNESS

rear, Includes: Ref. 1A and 1B, see Figures 4-30 and 4-33A for continuation of harness, Serial Range: JEE0052701-JEE0053349

1шт.

1

248841A1

HARNESS

rear, Includes: Ref. 1A and 1B, see Figures 4-30 and 4-33C for continuation of harness JEE0053350 to

1шт.

1a

244181A1

CONNECTION,ELECTRIC

transmission solenoid valve

1шт.

1b

L129852

CONNECTOR, ELEC

CONNECTOR speed sensor, transmission controls

1шт.

2

L126713

BOOT

plastic, harness at floor of operators compartment

1шт.

3

L128914

PRESSURE SWITCH

declutch

2шт.

5

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

BOLT, 5/16 NC x 1/2 inch, grade 8

1шт.

6

492-11031

LOCK WASHER,5/16"

1шт.

7

L127532

TEMPERATURE SENDER,1/2" - 14

transmission oil

1шт.

8

A187530

TEMPERATURE SENDER

SWITCH transmission oil temperature

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

10

L128913

PRESSURE SWITCH

brake pressure

1шт.

11

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

14

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

23/32 inch long, harness clamp

1шт.

15

A187723

SENDER UNIT

SENDER SWITCH engine oil pressure

1шт.

16

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

17

L127534

SENDER UNIT

SENDER engine oil pressure, use on units with optional gauges

1шт.

18

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

P-type

1шт.

19

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

292740A1

RESTRICTION SWITCH

restriction, air cleaner, replaces 1983233C1 switch

1шт.

24

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

25

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER engine temperature

1шт.

26

225-20210

NUT,#10-32, Brass

1шт.

27

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

(3/16")

1шт.

28

L129823

ELECTRICAL WIRE

WIRE ground, with resistor, engine coolant temperature, Serial Range: sender-engine

1шт.

29

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

31

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

1/8 inch female PT branch x female PT x PT

1шт.

32

241956A1

SWITCH

proximity, autoshift

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.
