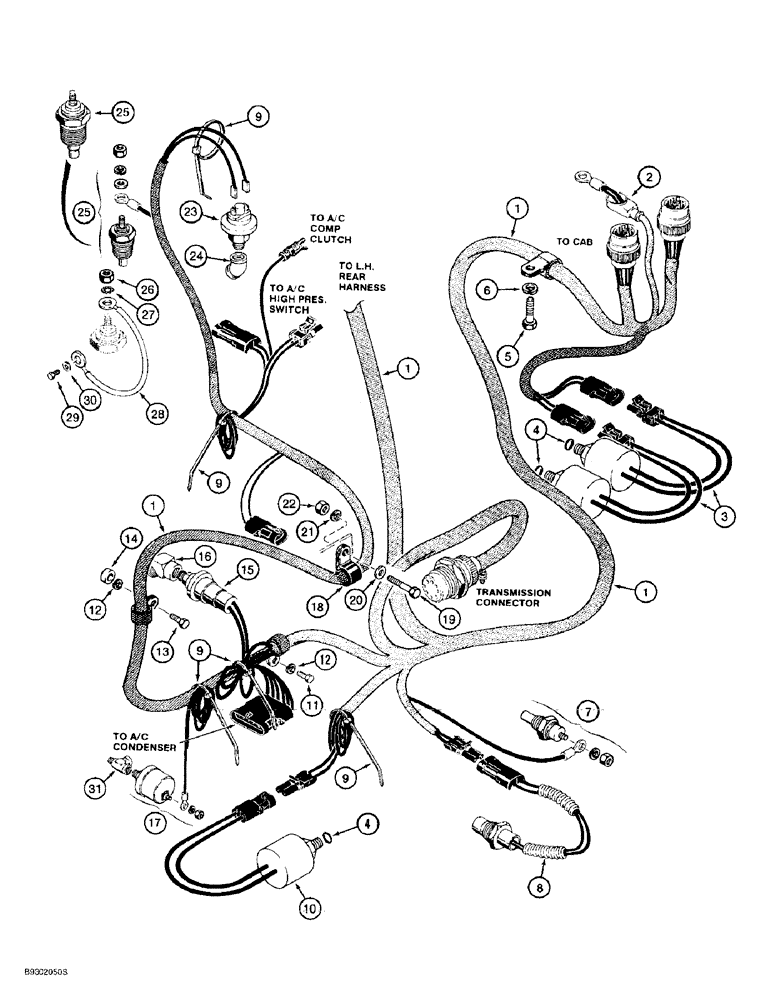

Запчасти Case 621B (4-28) - REAR HARNESS, ENGINE RIGHT-HAND SIDE, PRIOR TO P.I.N. JEE0052701 (04) - ELECTRICAL SYSTEMS

1

107788A1

HARNESS

rear, see Figures 4-30 and 4-32 for continuation of harness, Serial Range: -JEE0042310

1шт.

1

192491A1

HARNESS

rear, see Figures 4-30 and 4-32 for continuation of harness JEE0042310, Serial Range: -JEE0052700

1шт.

2

L126713

BOOT

plastic, harness at floor of operators compartment

1шт.

3

L128914

PRESSURE SWITCH

declutch

2шт.

5

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

BOLT, 5/16 NC x 1/2 inch, grade 8

1шт.

6

492-11031

LOCK WASHER,5/16"

1шт.

7

L127532

TEMPERATURE SENDER,1/2" - 14

transmission oil

1шт.

8

A187530

TEMPERATURE SENDER

SWITCH transmission oil temperature

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch, nylon

1шт.

10

L128913

PRESSURE SWITCH

brake pressure

1шт.

11

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Replaces 614-12040 bolt

1шт.

14

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

23/32 inch long

1шт.

15

A187723

SENDER UNIT

SENDER SWITCH engine oil pressure

1шт.

16

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street

1шт.

17

L127534

SENDER UNIT

SENDER engine oil pressure, use on units with optional gauges

1шт.

18

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

P-type, Replaces S79579 clamp

1шт.

20

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 inch

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

825-1410

NUT,M10, Cl 8

1шт.

23

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

24

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street

1шт.

25

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER engine temperature

1шт.

26

225-20210

NUT,#10-32, Brass

1шт.

27

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

(3/16")

1шт.

28

L129823

ELECTRICAL WIRE

WIRE ground, with resistor, engine coolant temperature, Serial Range: sender-engine

1шт.

29

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

31

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

1/8 inch female PT branch x female PT x PT

1шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.
