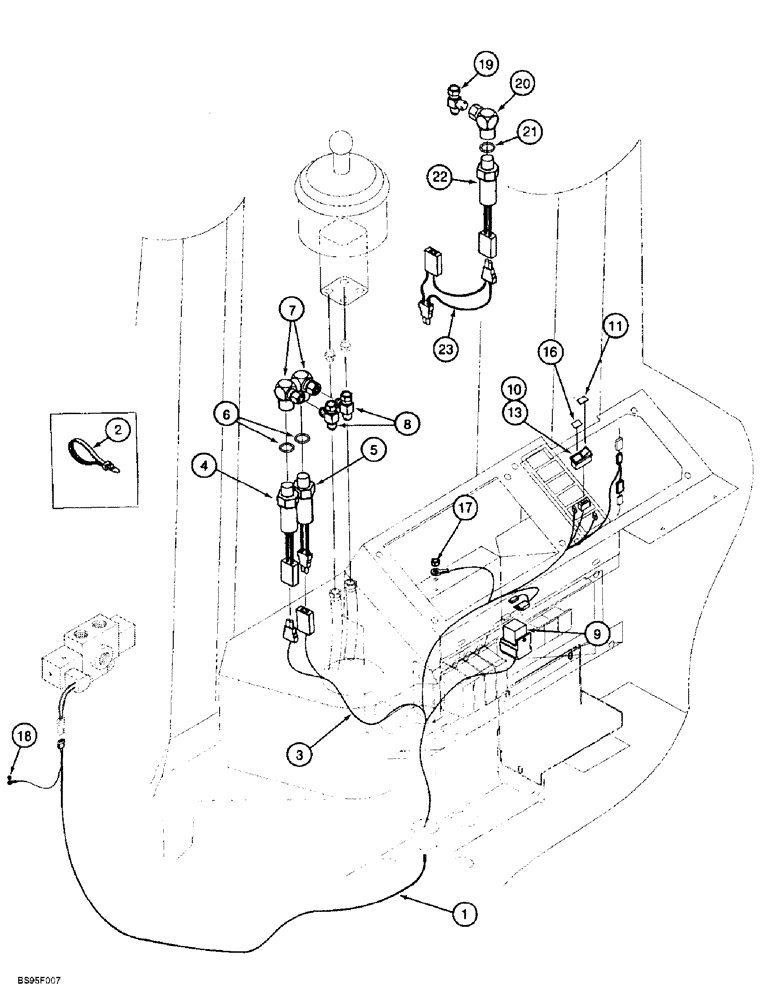

Запчасти Case 621B (4-27A) - RIDE CONTROL HARNESS (04) - ELECTRICAL SYSTEMS

1

125828A1

ELECTRICAL WIRE

WIRE HARNESS Ride control, Front, cab floor to master valve solenoid, see Figure 8-99

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

3

130417A1

HARNESS

ride control, cab

1шт.

4

132905A1

SWITCH

loader bucket tilt circuit

1шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller. See Figures 8-62 (single lever remote control with two spool valve), 8-64 (dual lever remote control with two spool valve), or 8-74 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

5

132906A1

SWITCH

loader lift circuit

1шт.

Ref. 5, lift switch and fittings connect to the connector at "XB" port for both model controllers. See Figures 8-62 (single lever remote control with two spool valve), 8-64 (dual lever remote control with two spool valve), or 8-74 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

ELBOW, 90 degree, special

2шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller. See Figures 8-62 (single lever remote control with two spool valve), 8-64 (dual lever remote control with two spool valve), or 8-74 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

Ref. 5, lift switch and fittings connect to the connector at "XB" port for both model controllers. See Figures 8-62 (single lever remote control with two spool valve), 8-64 (dual lever remote control with two spool valve), or 8-74 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller. See Figures 8-62 (single lever remote control with two spool valve), 8-64 (dual lever remote control with two spool valve), or 8-74 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

Ref. 5, lift switch and fittings connect to the connector at "XB" port for both model controllers. See Figures 8-62 (single lever remote control with two spool valve), 8-64 (dual lever remote control with two spool valve), or 8-74 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

9

198161A1

RELAY

Mini, 24 Volt, Latching, see Figure 4-20 (cab) or 4-26 (canopy) for power distribution center

1шт.

10

1913507C1

SWITCH ASSY

Rocker, Ride Control, see Figure 4-06 for instrument panel

1шт.

11

83884C1

SYMBOLS

SYMBOL LENS green

2шт.

12

191146A1

DECAL

Ride Control, Not Illustrated, see Figure 9-096

1шт.

13

A187870

LAMP

Warning, Ride Control/Coolant Level Indicator, see Figure 4-06 for instrument panel, Includes: Ref. 14

1шт.

14

926645C1

BULB,W5, 12V, 1.2W

W5/1, 2 24V1, 2W, not shown

1шт.

15

191145A1

DECAL

Ride Control, On, Not Illustrated, see Figure 9-096

1шт.

16

83883C1

SYMBOLS

SYMBOL LENS black

1шт.

17

1999948C1

FLANGE NUT

hex flange, special, 5/16 inch

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Additional parts for models with XT loader only

1шт.

Ref. 22, rollback circuit switch and fittings connect to the connector at "YA" port of either the single lever or double lever remote controllers for models with XT loaders.

1шт.

20

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

ELBOW, 90 degree, special, addtional parts for models with XT loader only

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Additional parts for models with XT loader only

1шт.

22

132905A1

SWITCH

rollback circuit, additional parts for models with XT loader only

1шт.

Ref. 22, rollback circuit switch and fittings connect to the connector at "YA" port of either the single lever or double lever remote controllers for models with XT loaders.

1шт.

23

183121A1S

HARNESS

rollback, additional parts for models with XT loader only

1шт.
